FAZLEY FKB-180 - LCD Display Section; Rear Connection Panel

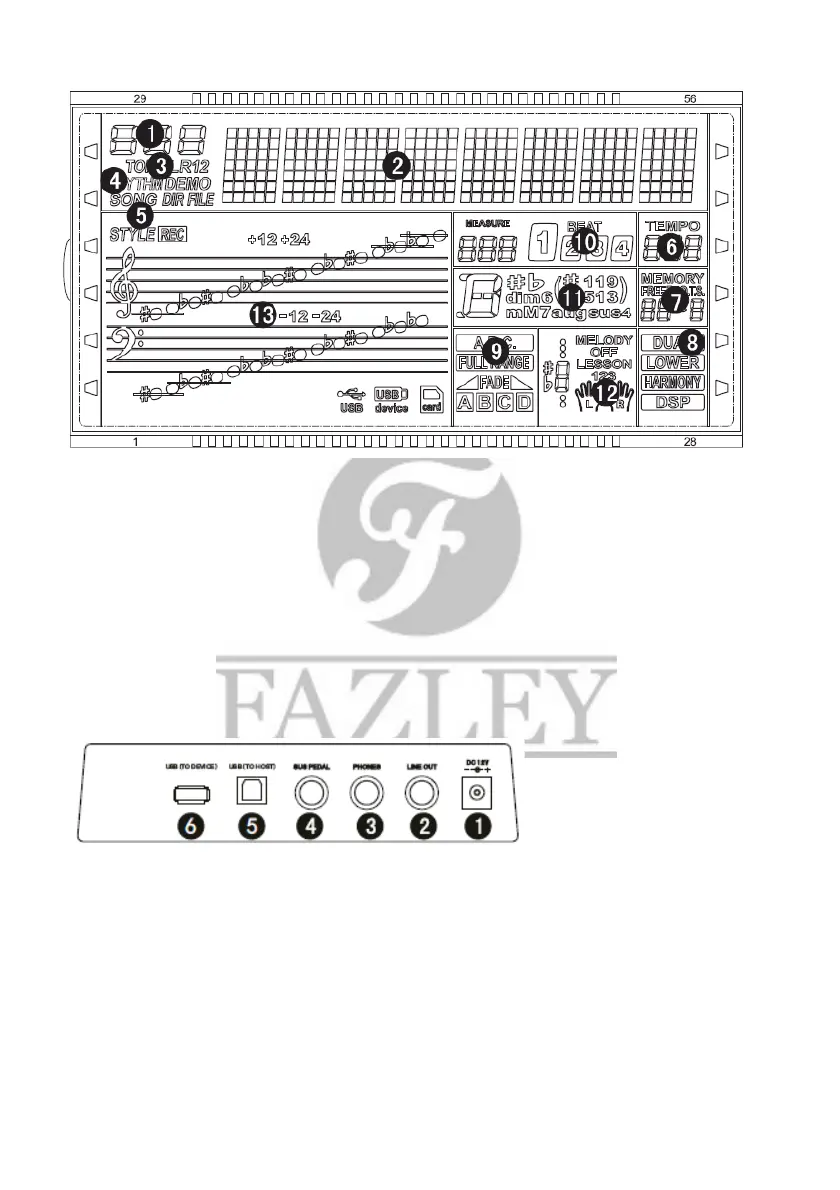

LCD display section
1. Display section
2. Character display (shows sound names among other things)
3. Tone indicator (lights up when sound is selected)
4. Rhythm indicator (lights up when rhythm is selected)
5. Song indicator ((lights up when song is selected)
6. Tempo indicator
7. Status memory indicator
8. Dual voice indicator
9. Chord mode indicator
10. Metronome indicator (shows the beat)
11. Chord display section
12. Learning mode indicator
13. Note display
Rear connection panel
1. Power adapter input
2. Line out (6.35 mm TRS jack)
3. Headphone output (6.35 mm TRS jack)
4. Sustain pedal input (6.35 mm TS jack)
5. USB MIDI connector (for exchanging MIDI data with a computer)
6. USB MP3 connector (for USB sticks up to 32 GB max.)
