FEI BAO F-16 1/6TH

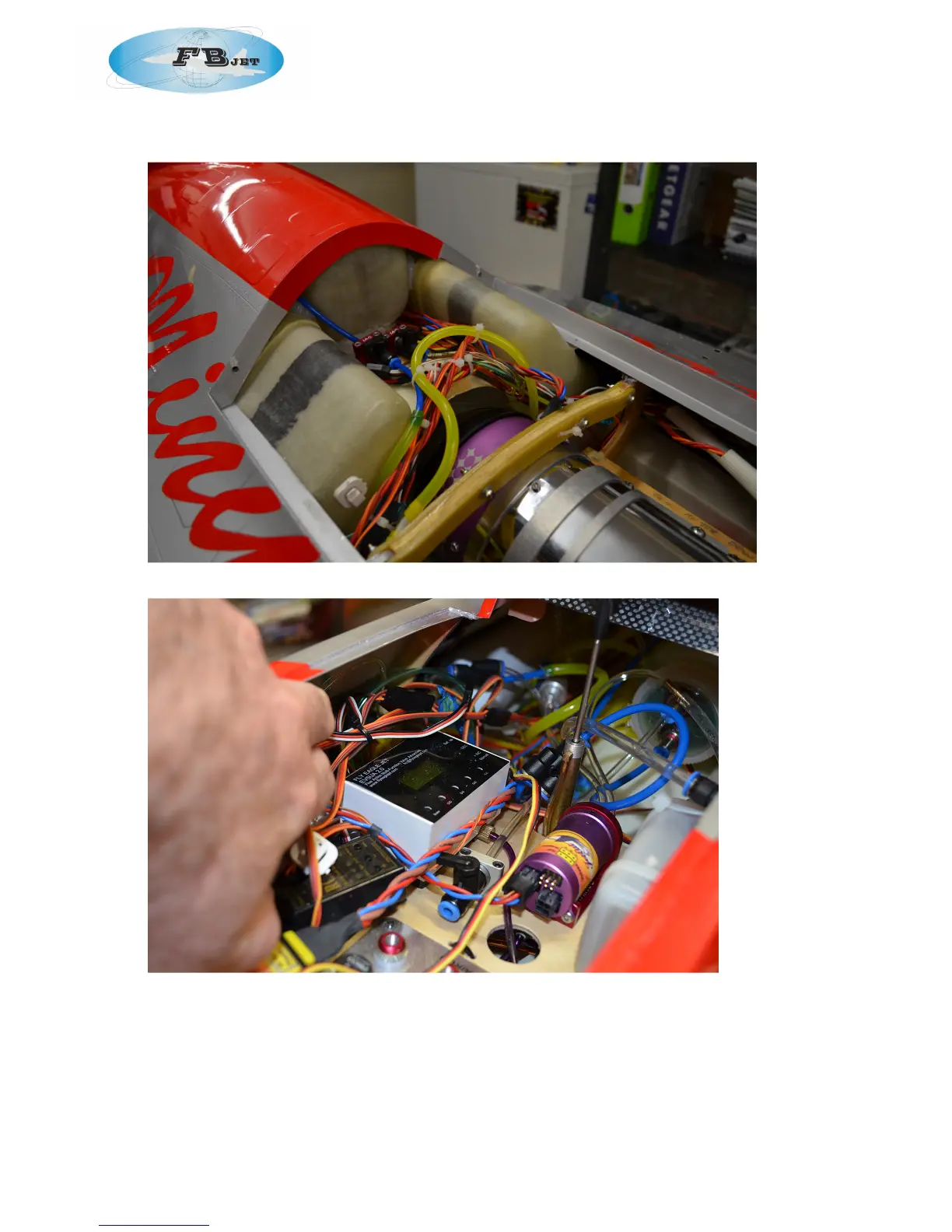

Photos 7 – Service lines to the engine
Photos 8 – rear component board. Note receiver position on upper right.
• Drill and secure the bypass to the engine mounting rails with four wood screws if necessary.
• If the pipe is loose as it passes through the rear former, glue a piece of ply at the top of the
former to hold the pipe more firmly in place. Access is from the rear.
• Complete the installation of engine components on the rear component board.
• Remember to leave clearance for the cockpit above. The placement of components in my
F16, including the smoke system, is shown in photos 6. The smoke tank was located next to
