Note: It is the authors practice not to use the rubber grommets as supplied with the servo for
mounting servos in jet airframes as vibrations are not an issue.

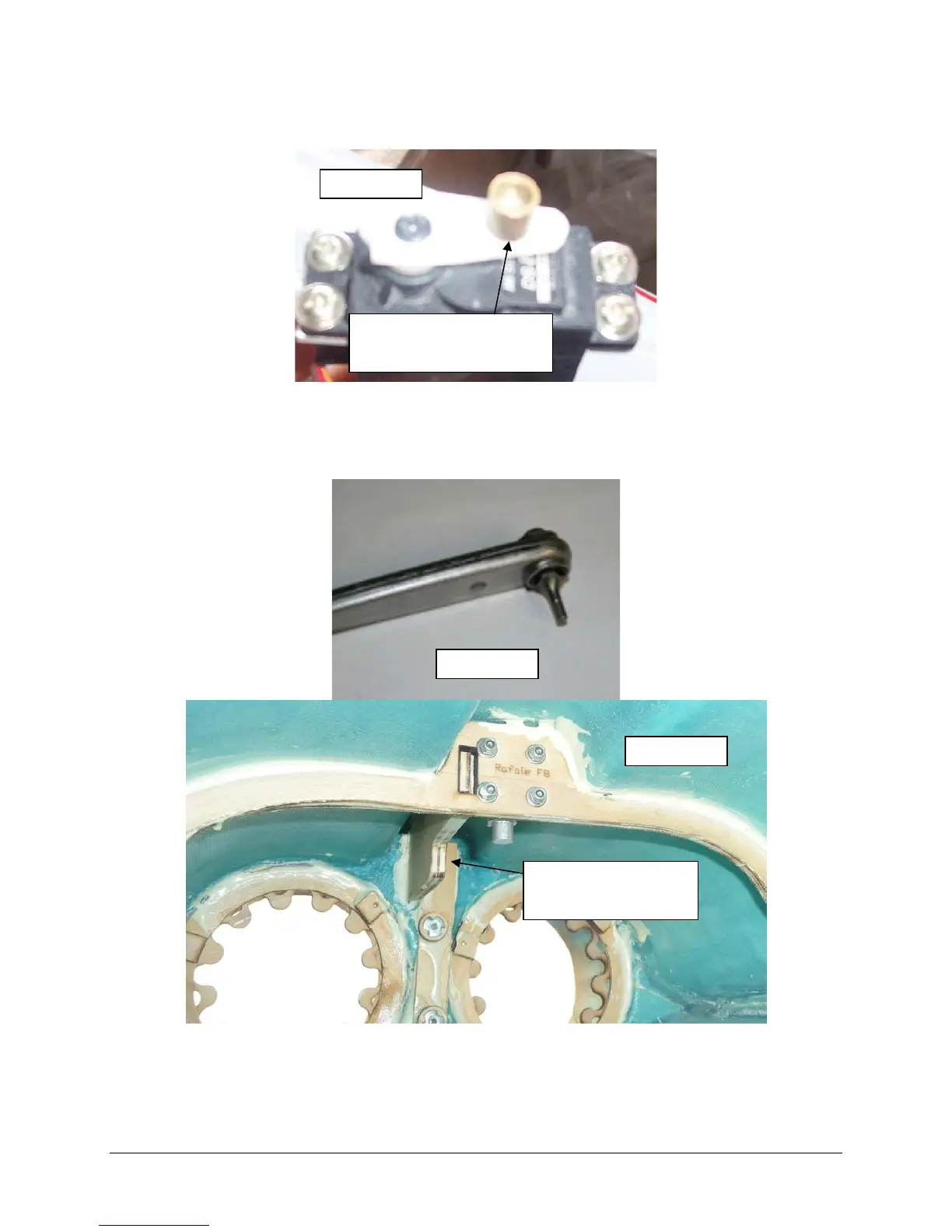

Align the servo shaft by using your receiver or servo driver to find the servos neutral point
and then attach the heavy-duty servo arm with the arm placed as shown in Photo 17.
Mount the rudder servo to the bulkhead position as shown in photo 19 & 20 using socket
headed wood screws; the arm will be facing towards the rear of the fin. Verify that the cup
receptacle follows the arched cutout in the fuselage.
Hint: a ratchet type angled Allen driver works well in confined spaces, see photo 18.
Mount servo on this
side of former
Cup assembly mounted
to heavy duty servo
Photo 18
Photo 19
Photo 17
