FCAR Product Manual
11

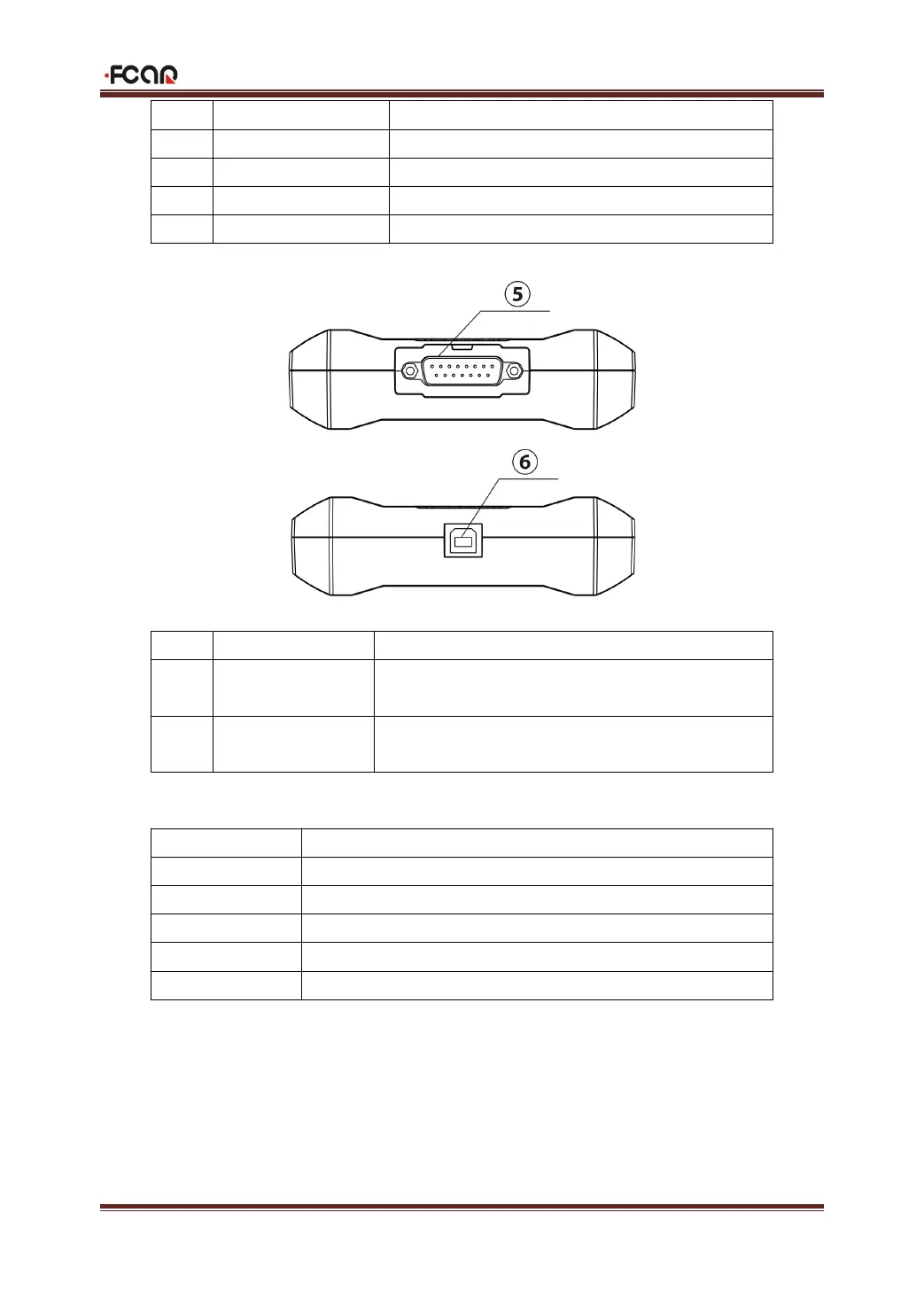

No.
Name
Description
①
Power Indicator
Lights up when powered (connected to the car)
②
Diagnostic light
Lights up when connected to vehicle
③
Bluetooth indicator
Lights up when connected to tablet PC
④
USB indicator
Lights up when connected to tablet PC
No.
Name
Description
⑤
DB15 Interface
Connect to the main testing line, connect to the
vehicle through the diagnostic connector
⑥
USB interface (B
shape)
Connect to tablet PC or upgrade VCI box
VCI Box Parameters
Processor
Cortex-M3 Micro controller
Frequency
100MHz
Processor Type
LPC1768
Flash Memory
512KB
RAM
64KB
Bluetooth
Support Bluetooth 2.0, Bluetooth 4.0
