Truck Scanner
6
For vehicles that are not compatible with the OBD-II
management system, the corresponding connector should be
selected; Some vehicles need to be powered by other vehicle
power sources.
The following is an operation description of these two connection
modes.

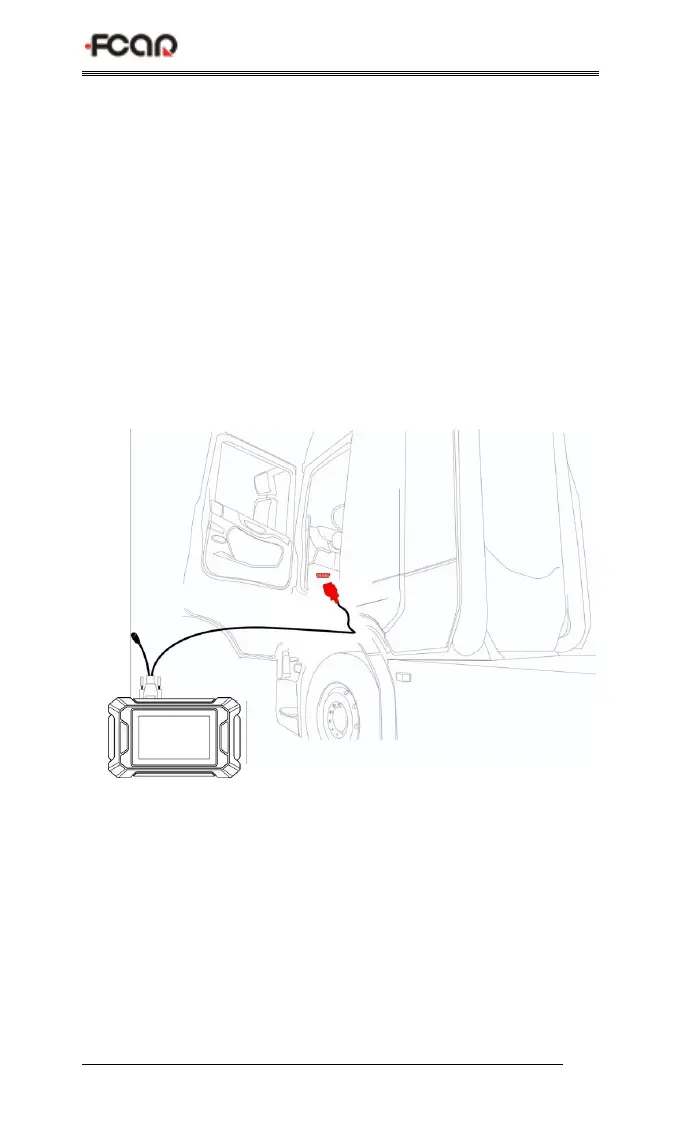

1) Connection of standard OBD-II interface
The vehicle connected with a standard OBD-II interface only
needs to use the integrated main test line OBD connector, and
no other connectors are needed, as shown in the figure:
2) Connection of non OBD-II interface
Vehicles with a non-standard OBD-II interface need to connect
the main test line with the corresponding special connector, as
shown in the figure:
