PMA, Riser & Check Valve For VL & Fixed Length
Item # Part # Description Qty
1 400125001 3 / 16 x 1 5 / 8 Spiral Pin 1
2 400615001 Manual Relief Plug 1
3 400211114 O-Ring, Plug 1
4 400627001 Retaining Ring 1
5 400616001 Manual Relief Screw 1
6 400333012 O-Ring, Relief Screw Top 1
7 400333007 O-Ring, Relief Screw Bottom 1
8 400628901 Manual Relief Plug Assembly
(includes items #2 and #3)
1
9 400629901 Manual Relief Screw Assembly (includes item
#4, #5, #6, and #7)
1
10 400259001 1 / 4 NPT Pipe Plug
(may purchase locally)
3
11 400137937 Syphon Check Valve –
12 400221930 Discharge Manifold 1
13 151213930 Lead Assembly 156" Length 1
151213932 Lead Assembly 240" Length 1
14 Purchase
Locally
Stationary Vapor Tube
3 / 8 OD x .035 Wall
–
15 4001689XX
(xx = length)
Riser 4 1 / 2 OD x .188 Wall Steel Tubing 1
16 Purchase
Locally
1 / 2 Steel Banding –
17 400600002 5 / 16-24 x 7 / 16 Set Screw
for VL units only
3
18 400333015 O-Ring, Motor Discharge 1
19 400264009 5 / 16-18 x 1 1 / 8 Socket Head Cap Screw 4
20 400263004 5 / 16 High-collar Lock Washer
(may purchase locally)
4
21 402449001 Gasket, PMA 1
22 PMAXXX
(XXX
indicates
options & HP)
Pump Motor Assembly
(includes item #35)
1
24 400981001 3 / 8-16 x 1 Hex Head Screw
(may purchase locally)
2
25 400285002 3 / 8 Standard Lockwasher
(may purchase locally)
2
26 400197930 Cover, Manifold Assembly
(includes one each of items #10 & #27, and
two each of items #24 & #25)
1
27 400333238 O-Ring (A / G compatible) 1
29 400147930 Valve, Clamp Assembly
(includes item #28)
1
30 400174930 Spring, Check Valve 1
34 400988931 Check Valve, Standard 1
400988932 Check Valve, Model R 1
400988933 Check Valve, Model W 1
402459931 Check Valve, Model 65 PSI 1
400988934 Check Valve, E85, Standard 1
402459932 Check Valve, E85, Model 65 PSI 1
(each Check Valve includes item #27)
35 152350902 PMA Hardware Pack
(includes item #21 and
four each of items #19 and #20)
–

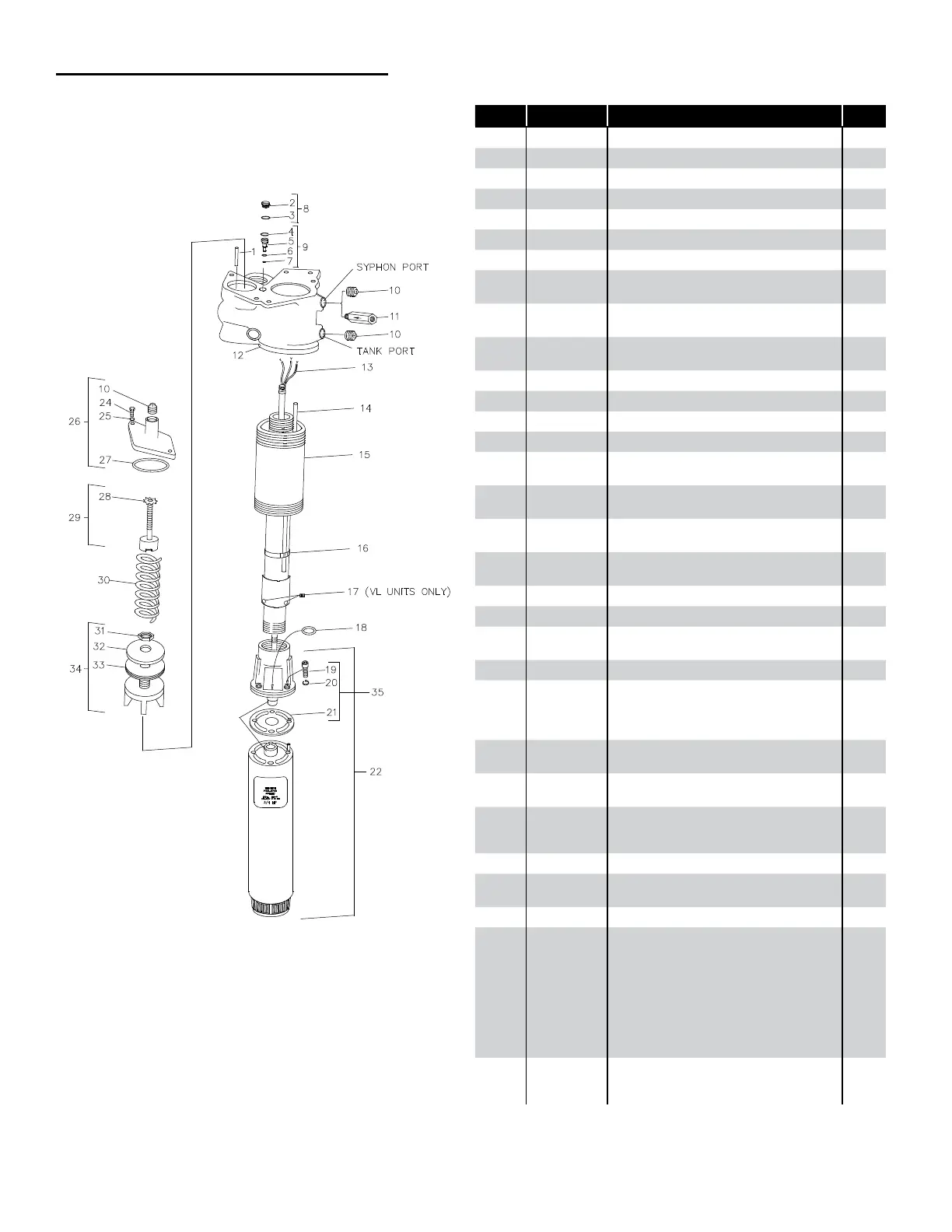

Figure 14
