Ethernet-I/P Fieldbus Expansion Unit
PAGE 30
Data Exchange between PLC and MFC Controller
The AFC3000 system supports explicit message function to exchange data between the PLC and
controller such as importing part ID data to the controller and exporting fastening result data to the PLC.
Transfer part ID Data to AFC3000 controller using MSG function
AFC3000 Userconsole Software Configuration
The AFC3000 controller can receive part ID data from its RS232C port or fieldbus message.
The Data source needs be selected as “fieldbus” to use this function.

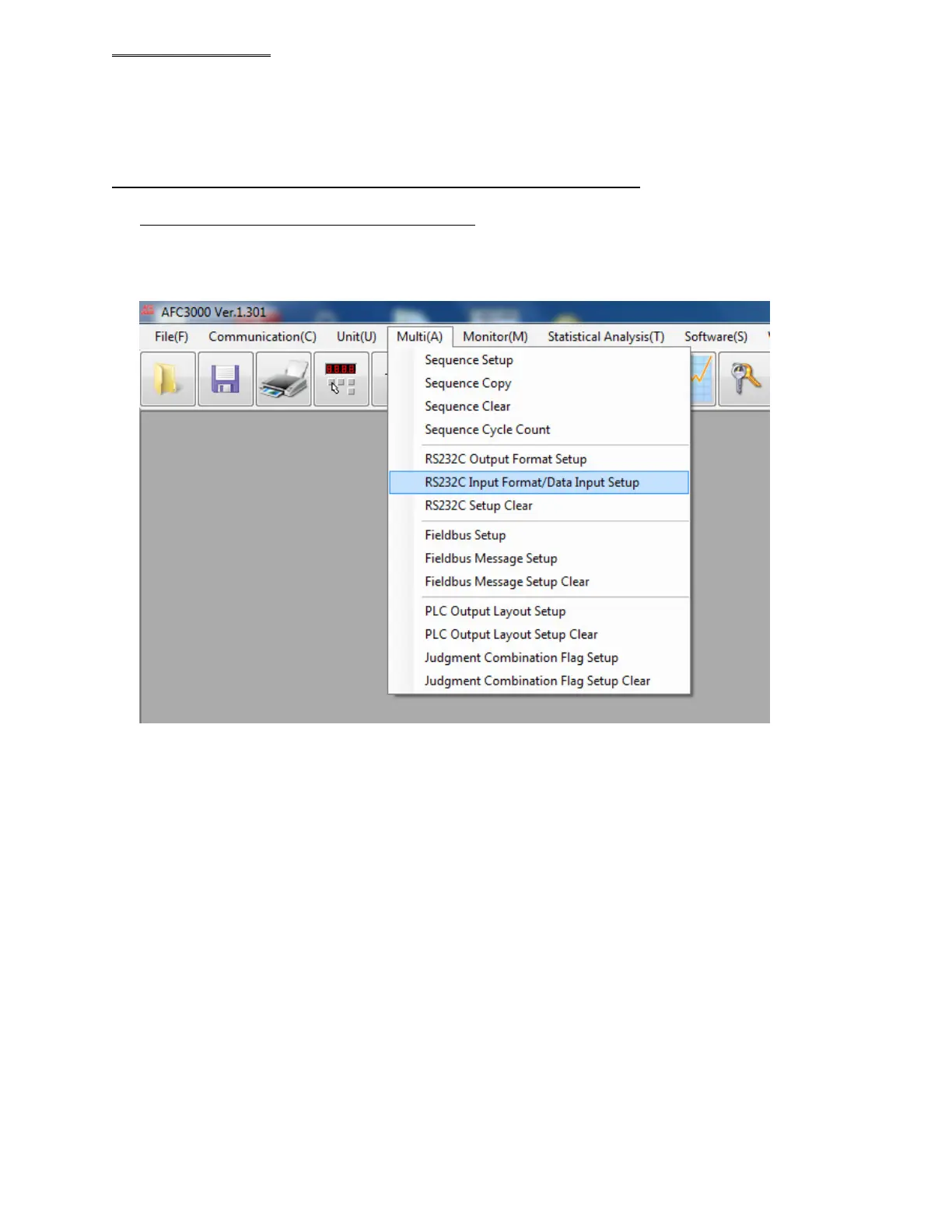

In the AFC3000 Software, select RS232C Input Format / Data Input Setup from Multi menu.
