Ethernet-I/P Fieldbus Expansion Unit
PAGE 32
Adding Message program to PLC

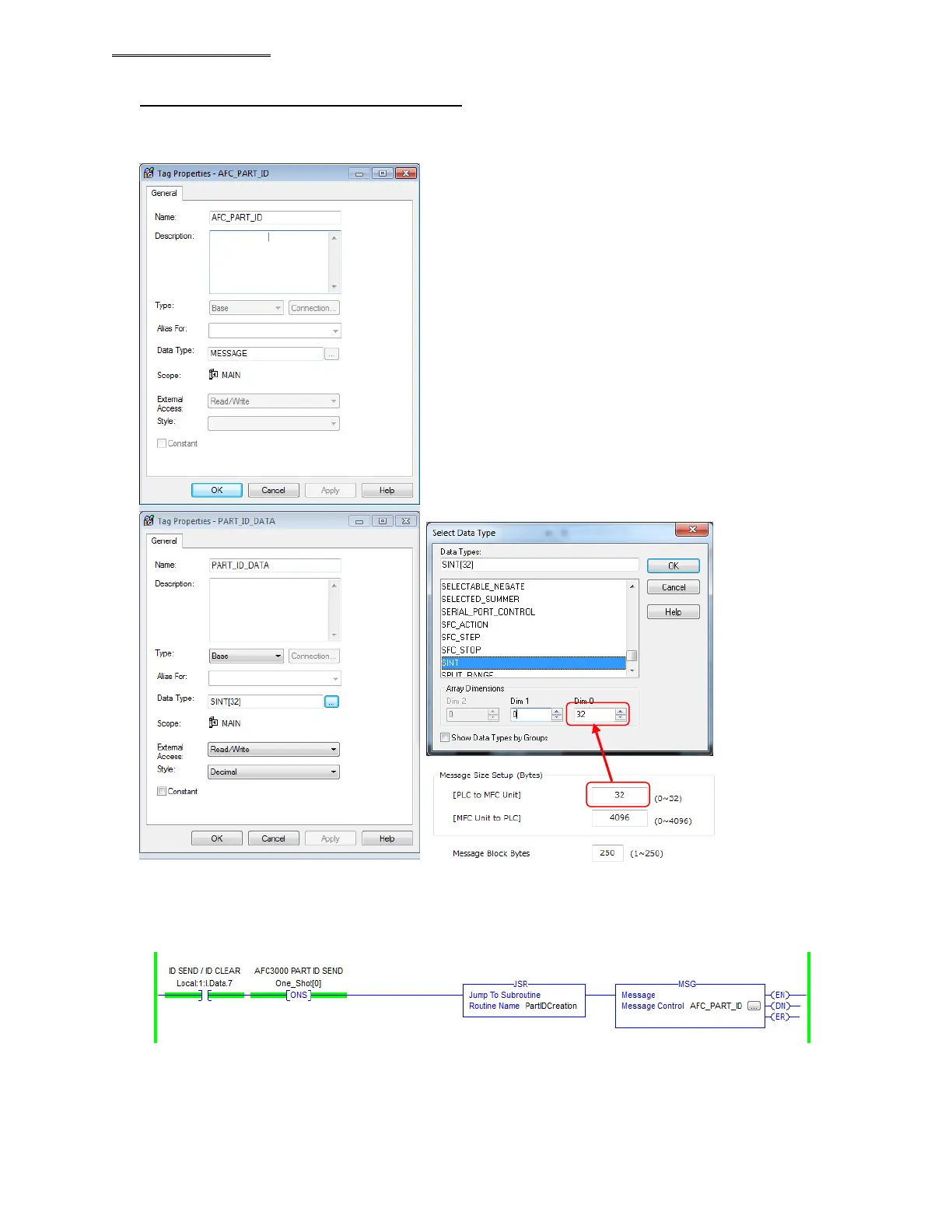

One “Message” tag and one SINT[32] tag needs to be added to use this function.
In this example, “AFC_PART_ID” AND “PART_ID_DATA” are used.
The size of PART_ID_DATA should match with the Message Size Setup set up in the AFC3000 controller.
Refer to page 4 of this document.
Add MSG command into PLC Logic program.
MSG command needs be activated “BEFORE” the AFC3000 system receives a START signal.
