Ethernet-I/P Fieldbus Expansion Unit
PAGE 38
Adding program to PLC

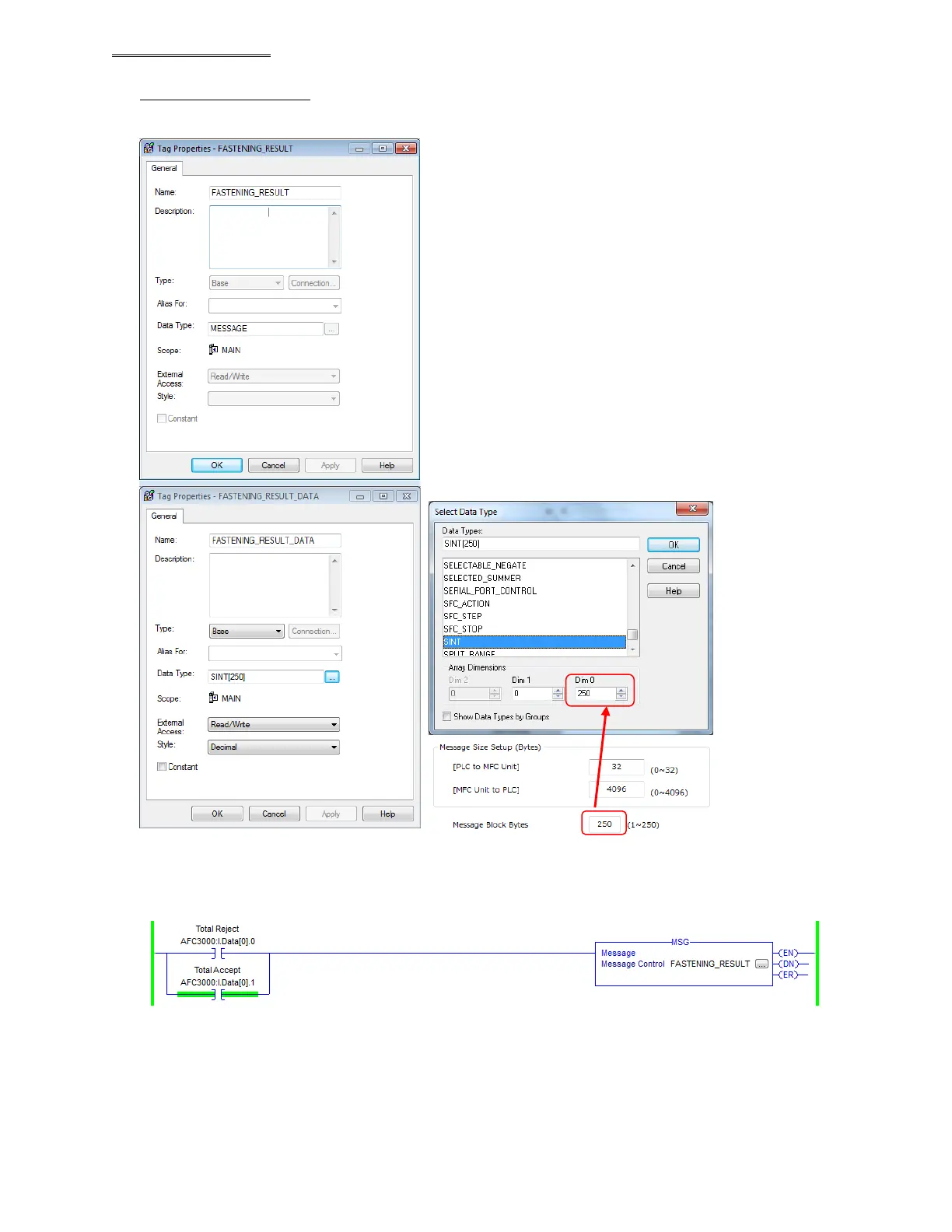

One “Message” tag and one SINT[250] tag needs be added to use this function.
In this example, “FASTENING_RESULT” AND “FASTENING_RESULT_DATA” are used.
The size of FASTENING_RESULT_DATA should match with Message Size Setup set for AFC3000
controller. Refer to page 4 of this document.
Add MSG command into PLC logic program.
MSG command needs be activated “AFTER” AFC3000 system complete fastening cycle.
