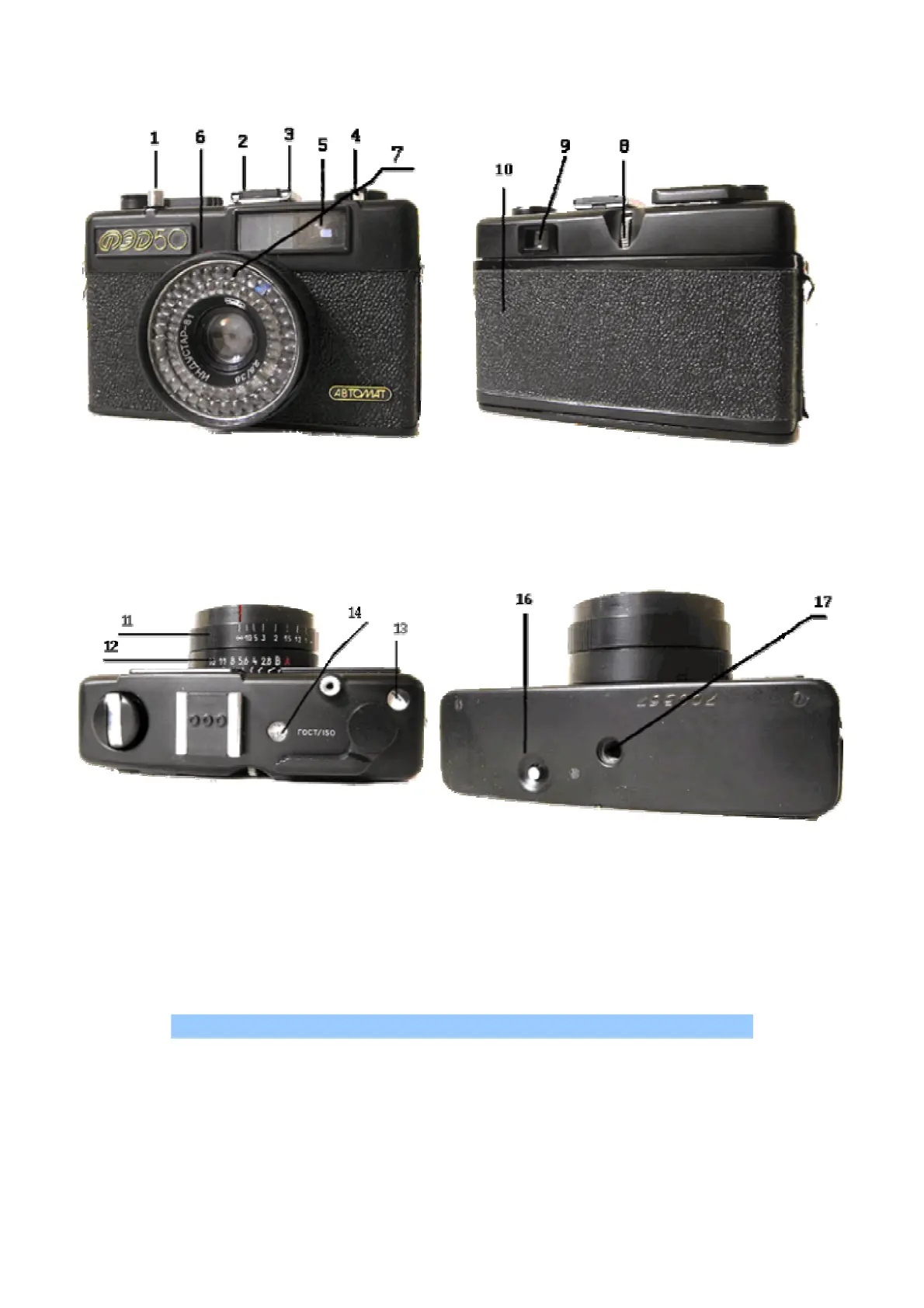

Fig. 1:
1 — release button; 2 — clip stopper; 3 —
clip; 4 — rewinding knob; 5 - view finder
aperture; 6 — operation mode Index; 7 —
photocell embossing
11 — distance limb; 12 — operation mode
limb; 13 — picture counter aperture; 14 —
film sensitivity scale aperture; 15 — shutter
cocking
lever
Fig. 2 :
8 - film sensitivity setting disk; 9 - view finder
eyepiece; 10 - rear cover
16 — rewinding button; 17 — tripod thread
5. PREPARATION FOR OPERATION
