FED 5B - Delivery Set

FED 5B Instructions for Use, 1992
– 2 –
3. Delivery Set
Camera . . . . . . . . . . . . . .
1
Film magazine . . . . . . . .
1
Lens cap . . . . . . . . . . . . .
1
Clip stopper . . . . . . . . . .
1
Case . . . . . . . . . . . . . . . .
1
Instructions for Use . . . .
1
Packing box . . . . . . . . . .
1
4. Design
The main units of the camera are as follows: the body which houses the mechanisms of the shutter,
automatic releaser, synchronizer, range-and-view finder, picture counter and the lens with diaphragm,
depth-of-field, and distance scales. The lens is attached to the body with the aid of a thread.
The camera controls and functional units are shown in Figs 1 and 2.

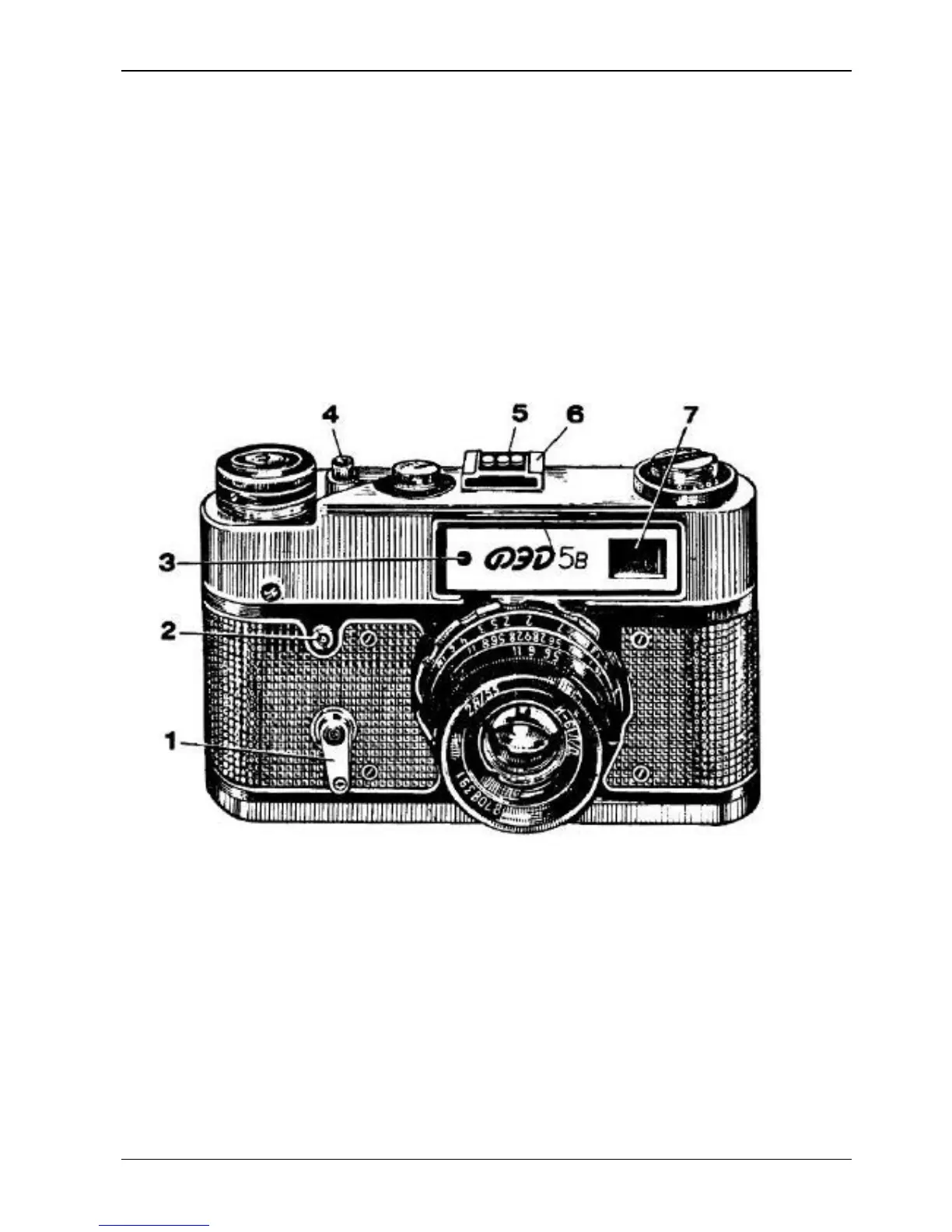

Fig. 1
1 — automatic releaser cocldng lever;
2 — automatic releaser button;
3 — range finder aperture;
4 — shutter release button;
5 — clip stopper;
6 — clip with synchronizer contact;
7 — view finder aperture.
