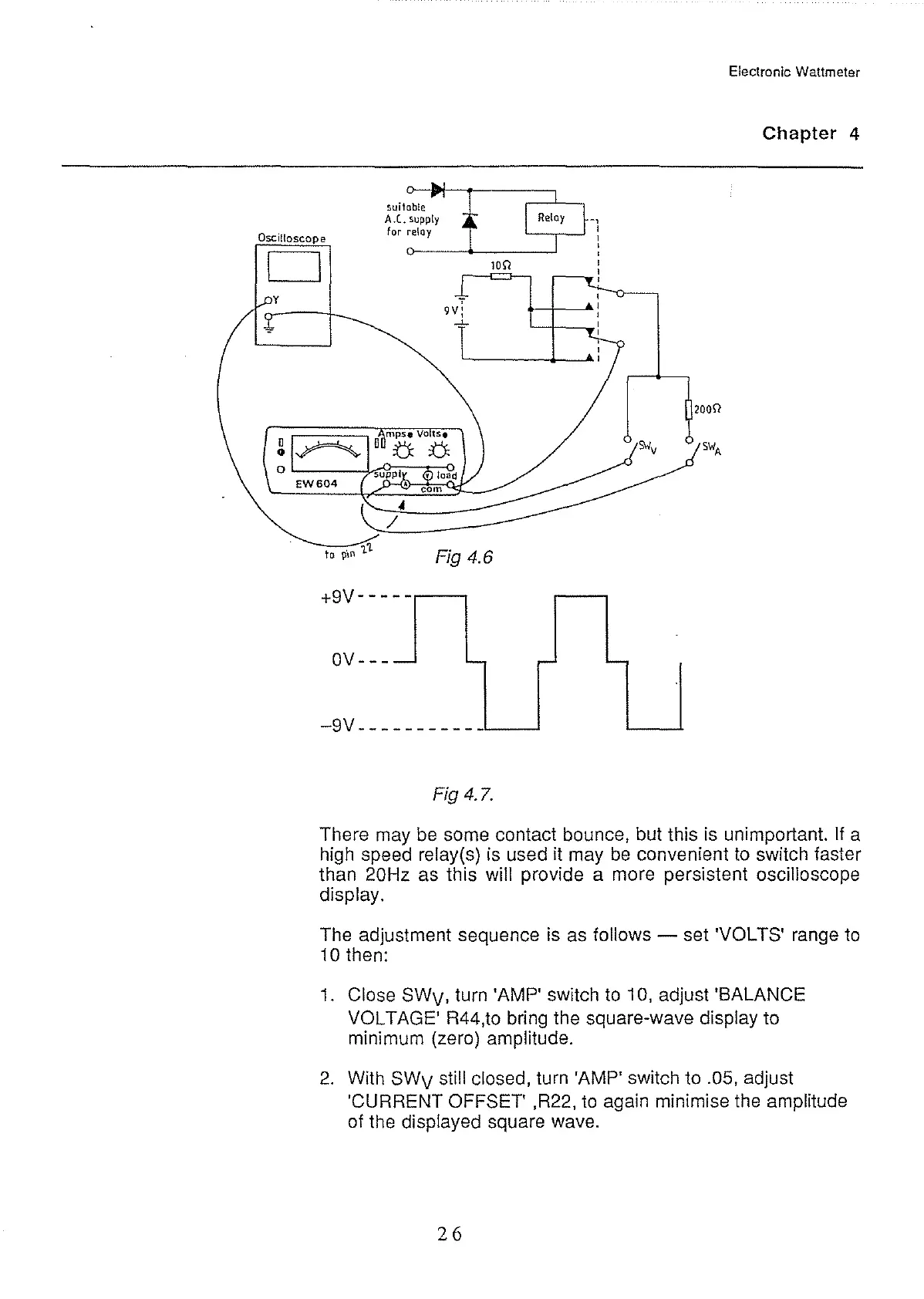

Oscilloscope
D
!>uilob!e
-,
A
.C.
!>Upp!y
for
reloy
'---.---'
:
o---~~----_j
'
1011
Fig 4.6
+9V---
--
OV---
-
'-
'
-9V---
--------
Fig 4.7.
Electronic Wattmeter
Chapter
4
20011
'-
There may
be
some contact bounce, but this is unimportant. If a
high speed relay(s) is used it may
be
convenient
to
switch faster
than
20Hz as this will provide a more persistent oscilloscope
display.
The adjustment sequence is as
follows - set 'VOLTS' range
to
10 then:
1.
Close SWv, turn 'AMP' switch
to
1
0,
adjust 'BALANCE
VOLTAGE' R44,to bring the square-wave display to
minimum (zero) amplitude.
2.
With
SWv
still closed, turn 'AMP' switch to .05, adjust
'CURRENT
OFFSET' ,R22,
to
again minimise the amplitude
of the displayed square wave.
