5. ASSEMBLY
5.1 FOLDING HANDLE
1. Fix the lower handlebar into the unit body with screws, washers and locking knobs (Fig. 2A/Fig.2B/Fig.2C).
Then, add screws and bolts in the holes which are just above.
2. Connect the lower handlebar and upper handlebar with blots, washers and locking knobs.
(Fig.2D/Fig.2E/Fig.2F)
3. Attach the cable-clamps to the position shown and then attach the cable. (Fig.2G)

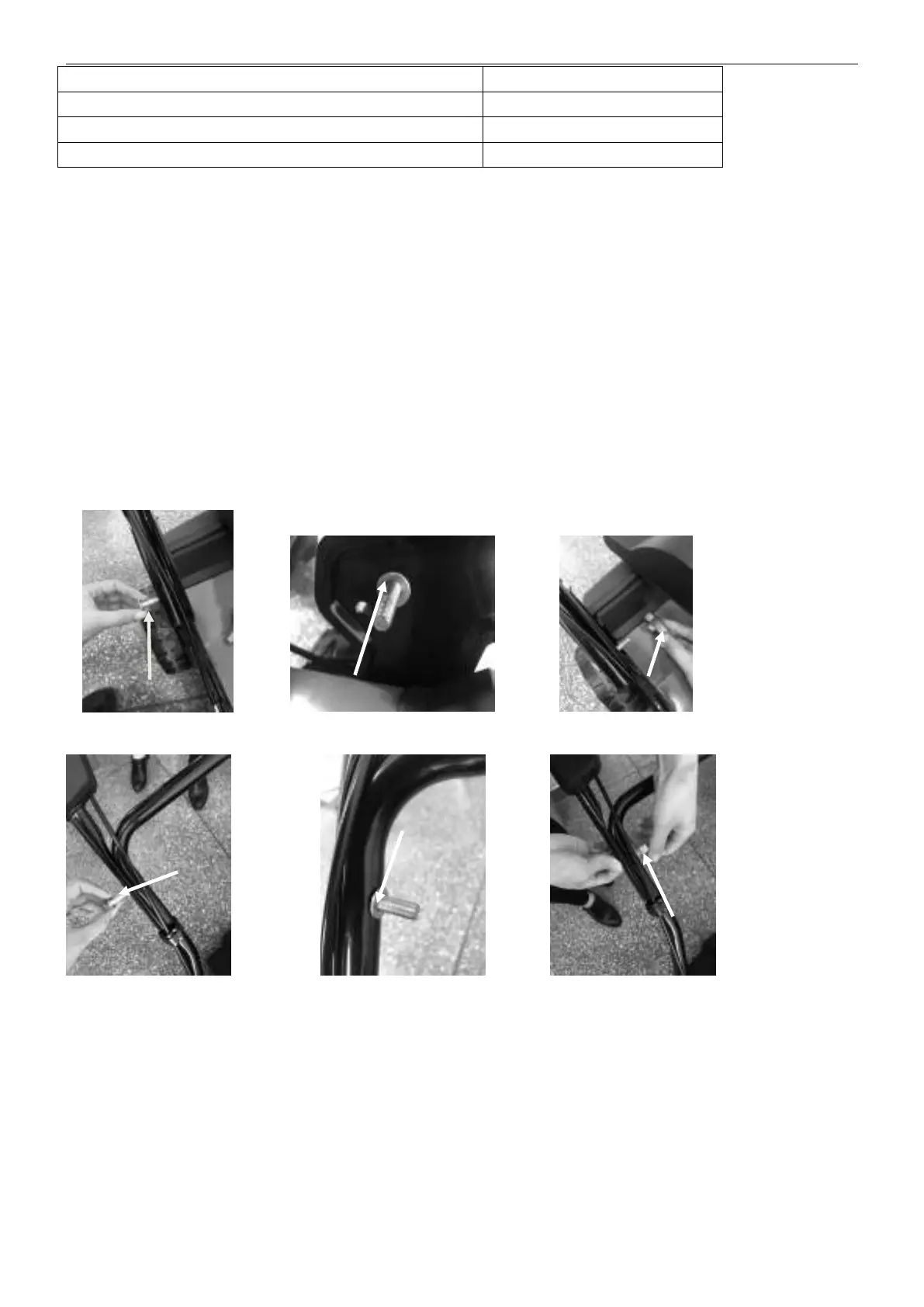

Fig.2A Fig.2B Fig.2C
Fig.2D Fig.2E Fig.2F
Measured sound power level
101.2 dB(A) K=3.43dB(A)
Measured sound pressure level
85.9 dB(A) K= 3 dB(A)
Guaranteed sound power level
105dB(A)
Vibration
7.03 m/s² K= 1,5 m/s²
Bolt
Washer
Locking knob
Bolt
Washer
Locking knob
