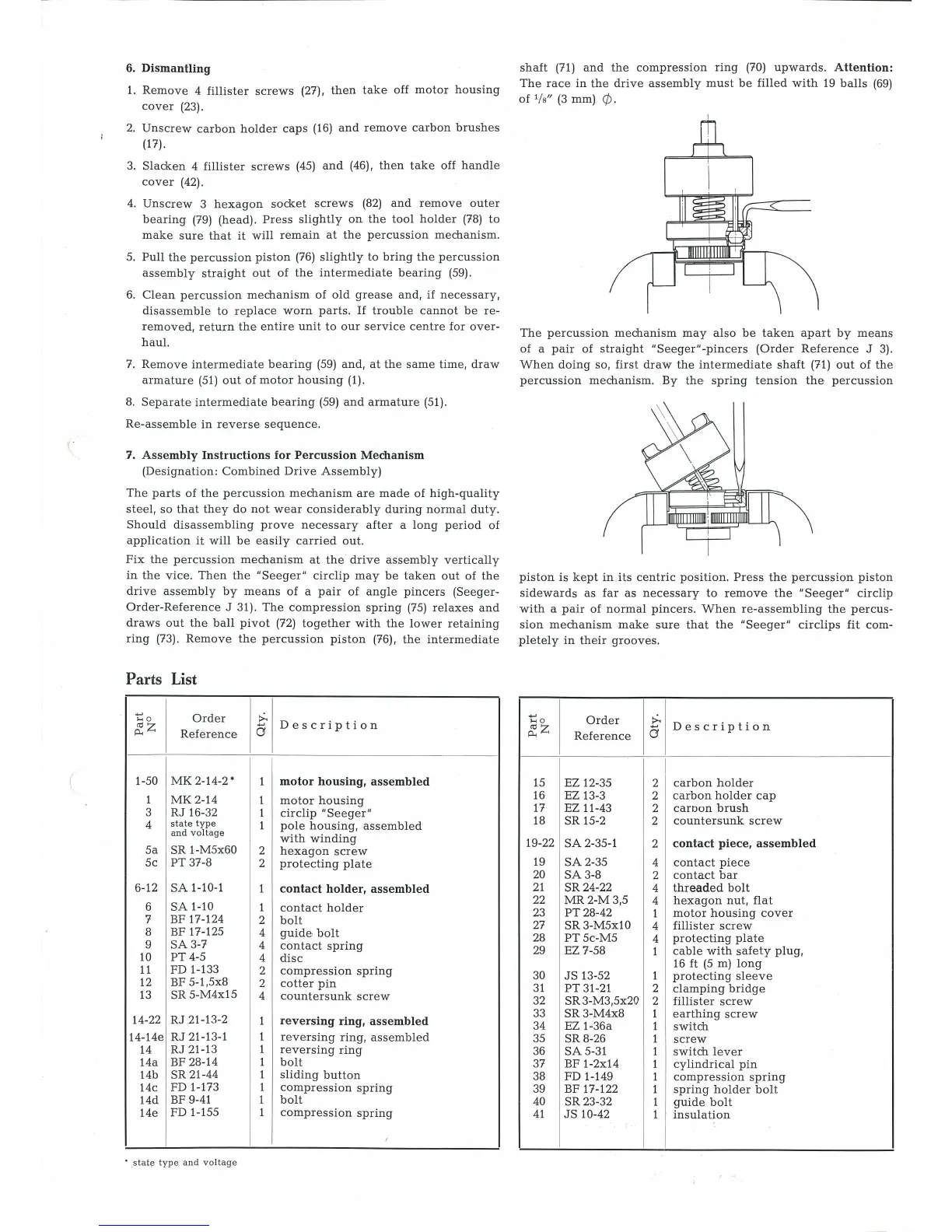

6. Dismantling
1. Remove 4 fillister screws (27), then take off motor housing
cover (23).
2. Unscrew carbon holder caps (16) and remove carbon brushes
(17).
3.
Slacken 4 fillister screws (45) and (46), then take off handle
cover (42).
4. Unscrew 3 hexagon socket screws (82) and remove outer
bearing (79) (head). Press slightly on the tool holder (78) to
make sure that it will remain at the percussion mechanism.
5. Pull the percussion piston (76) slightly to bring the percussion
assembly straight out of the in te rmediate bearing (59).
6. Clean percussion mechanism of old grease and, if n ece ssary,
disassemble to replace worn parts. If trouble cannot be re-
removed, return the entire unit to our service centre for over-
haul.
7. Remove intermediate bearing (59) and, at the same time, draw
armature (51) out of motor hous . ing (1).
8. Separate intermediate bearing (59) and armature (51).
Re-assemble in reverse sequence .
7.
Assembly Instructions for Percussion Mechanism
(Designation: Combined Drive Assembly)
The parts of the p erc ussion m ec hanism are made of high-quality
steel, so that they do not we ar considerably during normal duty .
Should disassembling prove necessary after a long period of
application it will be easily carried out.
Fix the percussion mechanism at the drive assembly vertically
in the vice. Then the "Seeger" circlip may be taken out of the
drive assembly by means of a pair of angle pincers (Seeger-
Order-R e fer enc e J 31). The compression spring (75) relaxes and
draws out the ball pivot (72) together with the lo wer retaining
ring (7 3 ). Remove the percussion pi ston (76), the int ermed iat e
Parts List
..,
Order >.
>-<0
Description
~z
Reference
0
I
1-50 MK 2-14-2*
1 motor housing, assembled
1
MK2-14
1 motor housing
3
RJ 16-32
1
circlip "Seeger"
4
state typ e
1
pole hous in g, assembled
and voltage
with winding
Sa
SR 1-M5x60
2
hexagon screw
5c
PT 37-8
2
protecting plate
6-12
SA 1-10-1
1 contact holder, assembled
6
SA 1-10
1
contact holder
7
BF17-124
2
bolt
8
BF17-125
4
guide bolt
9
SA 3-7
4
contact spring
10
PT 4-5
4
disc
11
FD 1-1 33
2
compression spring
12
BF 5-1,5x8
2
cotter pin
13
SR5-M4x15
4 countersunk screw
14-22
RJ 21-13-2
1
reversing ring, assembled
14-14e
RJ 21-13-1 1
rev e rsing ring, assembled
14
RJ21-13
1
reversing ring
14a
BF 28-14
1
bolt
14b
SR 21-44
1
sliding button
14 c
FD l-173
1
compression spring
14d
BF 9-41
1
bolt
14e
FD 1-155 1
compress i on spring
I
I
• state type and vo lta ge
shaft (71) and the compression ring (70) upwards. Attention:
The race in the drive assembly must be filled with 19 balls (69)
of
1
/s" (3 mm) (/).
rh
The percussion mechanism may also be taken apart by means
of a pair of straight "Seeger"-pincers (Order Reference J 3).
When doing so, first draw the intermediate shaft (71) out of the
percuss ion mechanism . By the spring tens ion the percuss i on
piston is kept in its centric position. Press the percussion piston
sidewards as far as necessary to remove the " Seeger" circl ip
with a pair of normal p incers . When re-assembling the percus-
sion mechanism mak e sure t ha t the "Seeger" circlips fit com-
pletely in th e ir groov es.
..,
Order
.b
.... o
Description
~z
Reference
0
I
I
15 EZ 12-35
2
carbon holder
16 EZ 13-3
2
carbon holder cap
17 EZ 11-43
2
caroon brush
18 SR 15-2
2
countersunk screw
19-22 SA 2-35-1
2
contact
piece, assembled
19 SA 2-35
4
contact piece
20 SA3-8
2
con ta ct bar
21 SR 24-22
4
thr eaded bolt
22 MR2-M3,5
4
he xago n nut, flat
23
PT 28-42
1
motor housing cover
27 SR3-M5x10
4
fillis
ter screw
28
PT 5c-M5
4
protecting plate
29
EZ 7-58
1
cable with safet y plug,
16 ft (5 m) long
30 JS 13-52
1
protecting sl eeve
31 PT 31-21
2
clampi ng bridge
32 SR3-M3,5x20
2 filli ster scr ew
33
SR3-M4x8
1 earthing screw
34 EZ 1-36a
1
switch
35 SR 8-26
1
screw
36 SA 5-31
1
switch l eve r
37
BF 1-2x14
1
cy li nd rical pin
38
FD 1-149
1
comp r ess ion spring
39 BF 17-122
1
spring hold er bolt
40 SR 23-32
1 gu
ide bolt
41 JS 10-42
1 i nsu la tion
