STEP 3
- See Figure A3.
- Connect an electronic wire (300mm) from the Junction B box located near the bottom bracket to the
Junction A (RS910) located underneath the bottom bracket shell.
- Connect an electronic wire (300mm) (shown in green in Figure A3) from Junction A (RS910) to the
battery.
- Connect a wire (300mm) from the Junction B box located near the bottom bracket to the front derail-
leur using the 8mm/2.5mm flat grommet.
- Connect another wire (750mm) from the Junction B box to the rear derailleur and install using the
8mm/2.5mm conical grommet.

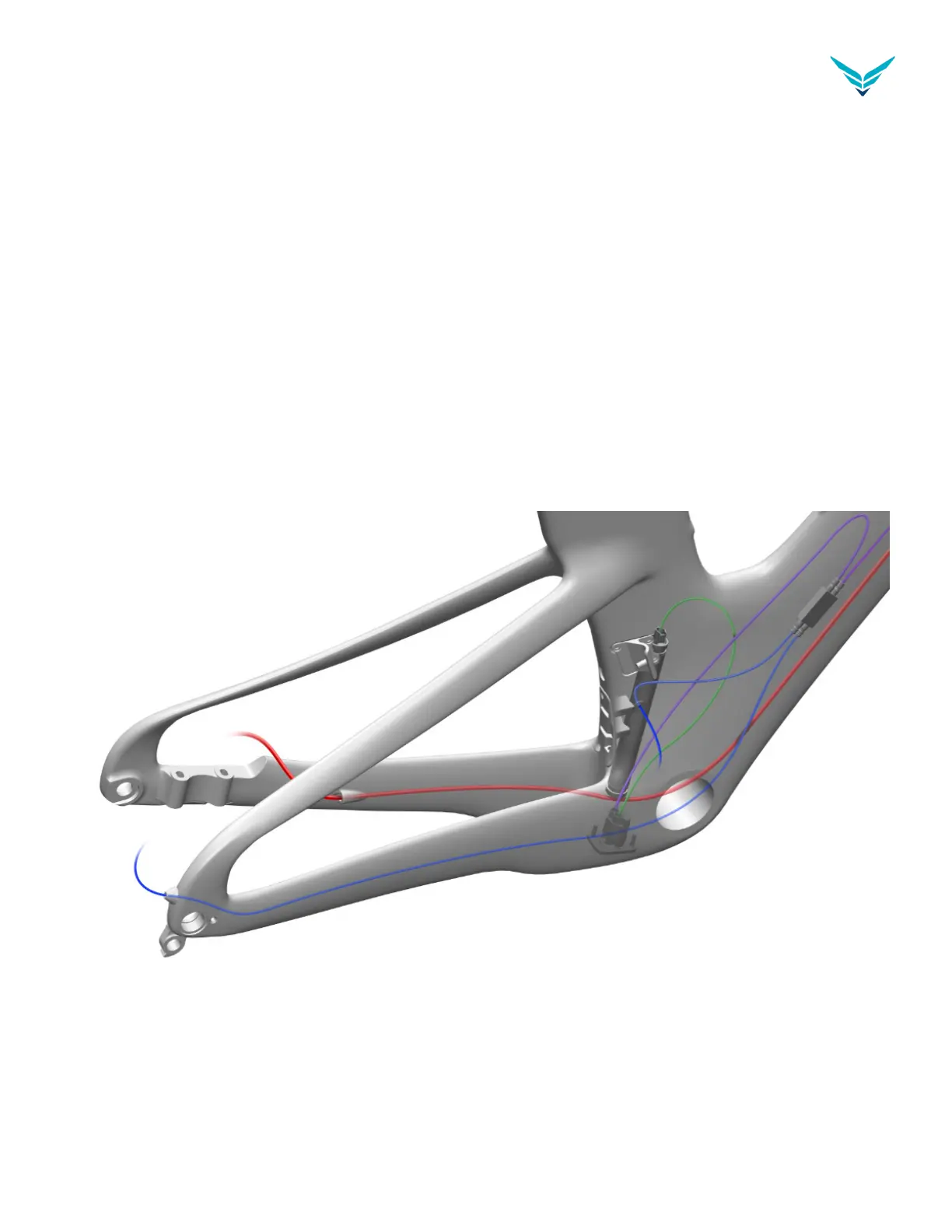

Figure A3
