Felt IA - REAR BRAKE HOSE

IA // ROUTING MANUAL
6
REAR BRAKE HOSE
NOTE
A Park Tool IR-2 specialty tool is very helpful when doing some of the next steps, but is not necessary.
STEP 1
Using the correct length of hose (see Appendix A, “Wire & Hose Lengths”), start from the rear brake
caliper. Have the brake hose enter the non-drive-side chainstay and route over the bottom bracket
shell. Then feed the hose up through the downtube. See Figure A4.

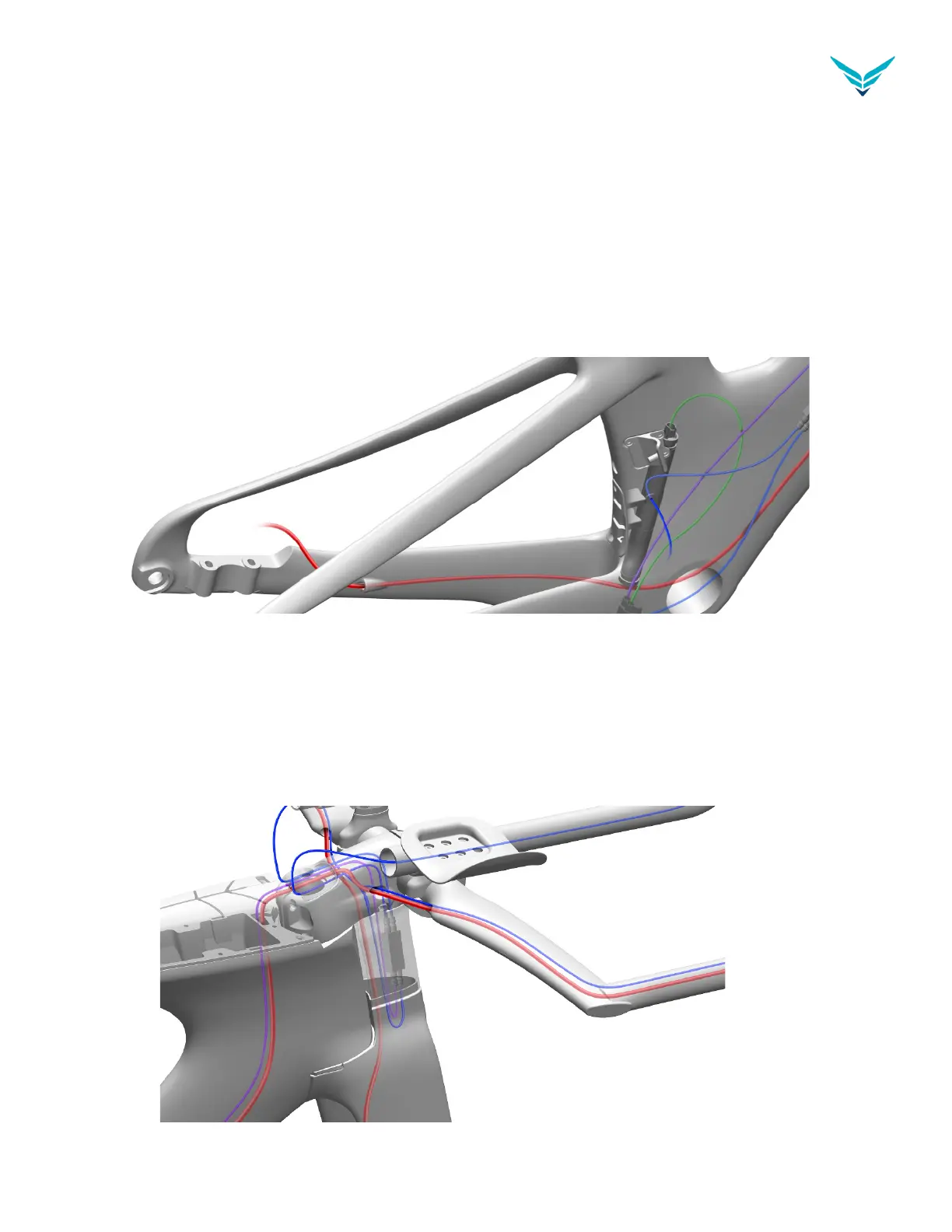

Figure A4
STEP 2
Exit where the integrated storage compartment is positioned along the top tube. Route through the
stem and then into the basebar, then towards the brake lever. Here you’ll be able to connect the brake
hose to the brake lever. See Figure A5.
Figure A5
