5

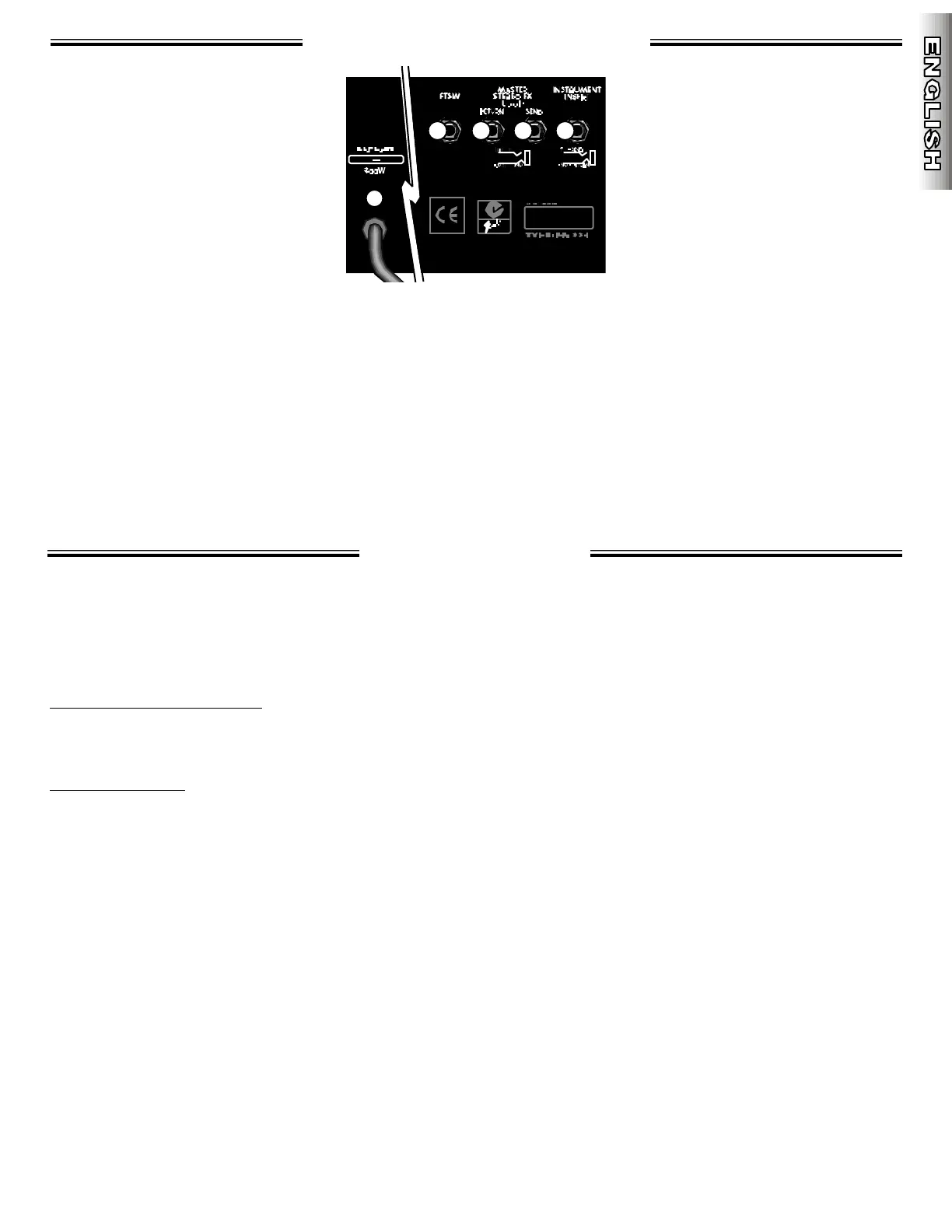

A . LINE CORD - The power line cord
must be connected to a gro u n d e d
AC receptacle in accordance with
the voltage and frequency ratings
as listed on the rear panel under
INPUT POWER.
B . FOOTSWITCH - Plug-in connec-
tion for the optional re m o t e
footswitch (P/N 037659) used to
switch ON/OFF the chorus eff e c t .
Using this jack will override the
c h o rus select switch on the fro n t
panel. NOTE: Any good quality patch cord will work with the re m o t e
footswitch, however an unshielded speaker type cord is preferable to a
coax guitar cord .
C . RETURN - This 1/4-inch, stereo, TRS (Tip=Left, Ring=Right,
S l e e v e = G ro u n d ) , line-level input jack is designed to accept signal fro m
an external processing device, such as a digital delay or a chorus unit.
D . SEND - This 1/4-inch, stere o ,
TRS, line-level output jack is
designed to feed the
Acoustasonic Junior’s effects bus
to an external signal pro c e s s i n g
device, such as a digital delay or
a chorus unit. On the
Acoustasonic Junior, the tip is left
and the ring is right. This jack
can also be used as a line out.
E. INSTRUMENT INSERT - This 1/4-
inch, unbalanced, input/output,
line-level phone jack is designed
for use with a signal processing
device, such as a digital delay or
reverb unit. A special "Y" line cord
(stereo to dual mono) is required to
use this TRS jack (Ti p = S e n d ,
Ring=Return, Sleeve=Ground).
R
R
e
e
a
a
r
r
P
P
a
a
n
n
e
e
l
l
F
F
u
u
n
n
c
c
t
t
i
i
o
o
n
n
s
s
S
S
p
p
e
e
c
c
i
i
f
f
i
i
c
c
a
a
t
t
i
i
o
o
n
n
s
s
TYPE: PR 334
PART NUMBER: 022-1302-000 (120V, 60Hz) USA 022-1332-000 (240V, 50 Hz) Aust
022-1342-000 (230V 50 Hz) UK 022-1362-000 (230V 50 Hz) Eur
022-1372-000 (100V, 50/60 Hz) Jpn
POWER REQUIREMENTS: 300W
POWER AMPLIFIER SECTION
POWER OUTPUT: 40W R.M.S. per channel, (80W R.M.S. Total)
into 8Ω @ <.12% T.H.D., both channels driven
SENSITIVITY : 640mV @ stereo effects return (both channels)
PREAMP SECTION
INPUT IMPEDANCE: 10MΩ (Inst), 3.6kΩ (Mic), 36.4kΩ (Line/Inst)
SENSITIVITY FOR FULL POWER: 12.75mV (Inst), 5mV (Mic), 50mV (Line/Inst)
TONE CONTROLS: Treble: +/-15dB @ 15kHz (Inst), +/-15dB @ 15kHz (Mic/Line/Inst)
Mid: +/-12dB @ 1kHz (Inst)
Bass: +/-12dB @ 100Hz (Inst), +/-12dB @ 50Hz (Mic/Line/Inst)
FEEDBACK NOTCH: -10dB from 80Hz to 700Hz (Instrument Channel)
STRING DYNAMICS: 0 to -15dB @ 6.3kHz (Instrument Channel)
PHANTOM VOLTAGE: +15V DC (Mic)
SPEAKER COMPLIMENT: Two Fender Special Design 8” speaker (P/N 051016)
Single Piezo Horn (P/N 049260)
DIMENSIONS: Height: 15.5 in 39 cm
Width: 22.4 in 57 cm
Depth: 10.2 in 26 cm
WEIGHT: 43 lbs 19.5 kg
Fender
®
, is a registered trademark of FMIC
Product specifications are subject to change without notice.
