5

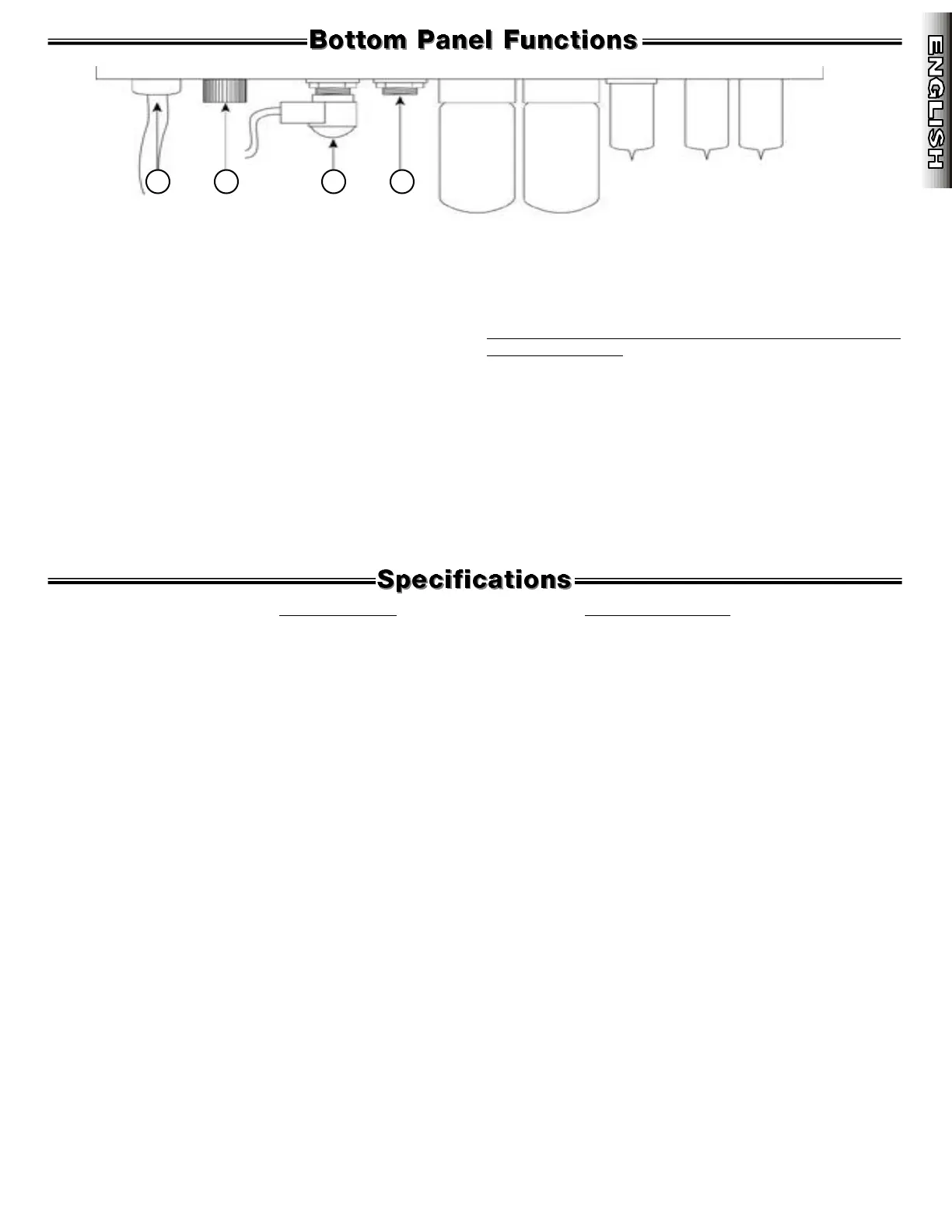

A. LINE CORD - Make sure the amplifier electric supply
rating matches that of the outlet at your location.
Connect the power AC line cord to a gro u n d e d
receptacle only.
B. FUSE - The fuse is in the AC supply of the amplifier and
will help to protect the amplifier in the event of an
electrical fault or tube failure. If a fuse blows, replace
only with one of the same type and rating. (Refer to the
specifications below for the correct fuse). If the
amplifier repeatedly blows fuses, it should be taken to
an authorized Fender service center.
C. MAIN SPEAKER - This is the main plug-in connection
to the speakers and must always be used as their
primary connection.
D. EXTERNAL SPEAKER - Plug-in connection for an
external speaker. This jack is wired in parallel with the
main speaker jack and must only be used in
conjunction with the main speaker jack. If this jack is
used without the main speaker jack, there will be no
sound. The external speaker jack must be used with
an 8 ohm speaker enclosure.
R e g a rding the Bias Adjustment on the Hot Rod
Deville/Deville 212:
• Your new Fender amplifier has an internally mounted
variable bias control and is set at the factory. The bias
c o n t r ol sets the idle current in your output tubes,
matching the amp to the types of tubes you use. If you
replace your tubes with the Fender types your amp was
originally outfitted with, no bias adjustment is necessary.
A properly biased amp will sound great and will ru n
reliably and safely. Tube location is printed on the tube
label located inside the cabinet. Biasing this amp
should be done at an authorized Fender Service Center.
HOT ROD DEVILLE HOT ROD DEVILLE 212
TYPE: PR 247 PR 247
PART NUMBERS: 021-3271-000 (100V, 50/60Hz) Japan 021-3270-000 (100V, 50/60Hz) Japan
021-3201-000 (120V, 60Hz) USA 021-3200-000 (120V, 60Hz) USA
021-3261-000 (230V, 50Hz) Europe 021-3260-000 (230V, 50Hz) Europe
021-3241-000 (230V, 50Hz) United Kingdom 021-3241-000 (230V, 50Hz) United Kingdom
021-3281-000 (230V, 50Hz) Nordica 021-3281-000 (230V, 50Hz) Nordica
021-3231-000 (240V, 50Hz) Australia 021-3230-000 (240V, 50Hz) Australia
POWER REQUIREMENTS: 180W 180W
POWER OUTPUT: 60W into 8Ω or 4Ω at 5% THD 60W into 8Ω or 4Ω at 5% THD
INPUTIMPEDANCE: Input 1 : 1 MΩ INPUT2: 136 kΩ Input 1 : 1 MΩ INPUT2: 136 kΩ
PRE-AMPOUTPUTIMPEDANCE: 1.5 kΩ Max 1.5 kΩ Max
POWER-AMPINPUTSENSITIVITY: 200 mV for clipping 200 mV for clipping
POWER-AMPINPUTIMPEDANCE: 54 kΩ 54 kΩ
TUBES: Three Fender Special Design Three Fender Special Design
12AX7Atubes (P/N 099-5091), 12AX7Atubes (P/N 099-5091),
Two Fender Special Design Two Fender Special Design
5881/6L6 tubes (P/N 099-5090) 5881/6L6 tubes (P/N 099-5090)
FUSE: 3A250V fuse for 100V and 120V versions 3A250V fuse for 100V and 120V versions
1.6A250V fuse for 230V and 240V versions 1.6A250V fuse for 230V and 240V versions
SPEAKER: Four 10,” 8Ω Fender Model V 1030 Two 12,” 8Ω Fender Re-issue
Special Design (P/N 048832) Gold Label (P/N 037617)
FOOTSWITCH: 2 Button: Gain, Channel (P/N 050419) 2 Button: Gain, Channel (P/N 050419)
DIMENSIONS: Height: 23.5 in. (47.6 cm) 21 in. (53.3 cm)
Width: 23.5 in. (59.7 cm) 24.25 in. (61.6 cm)
Depth: 10.75 in. (26.7 cm) 10.75 in. (27.3 cm)
Weight 50 lbs. (22.5 kg) 53.5 lbs. (24.2 kg)
Product specifications are subject to change without notice.
