03-10

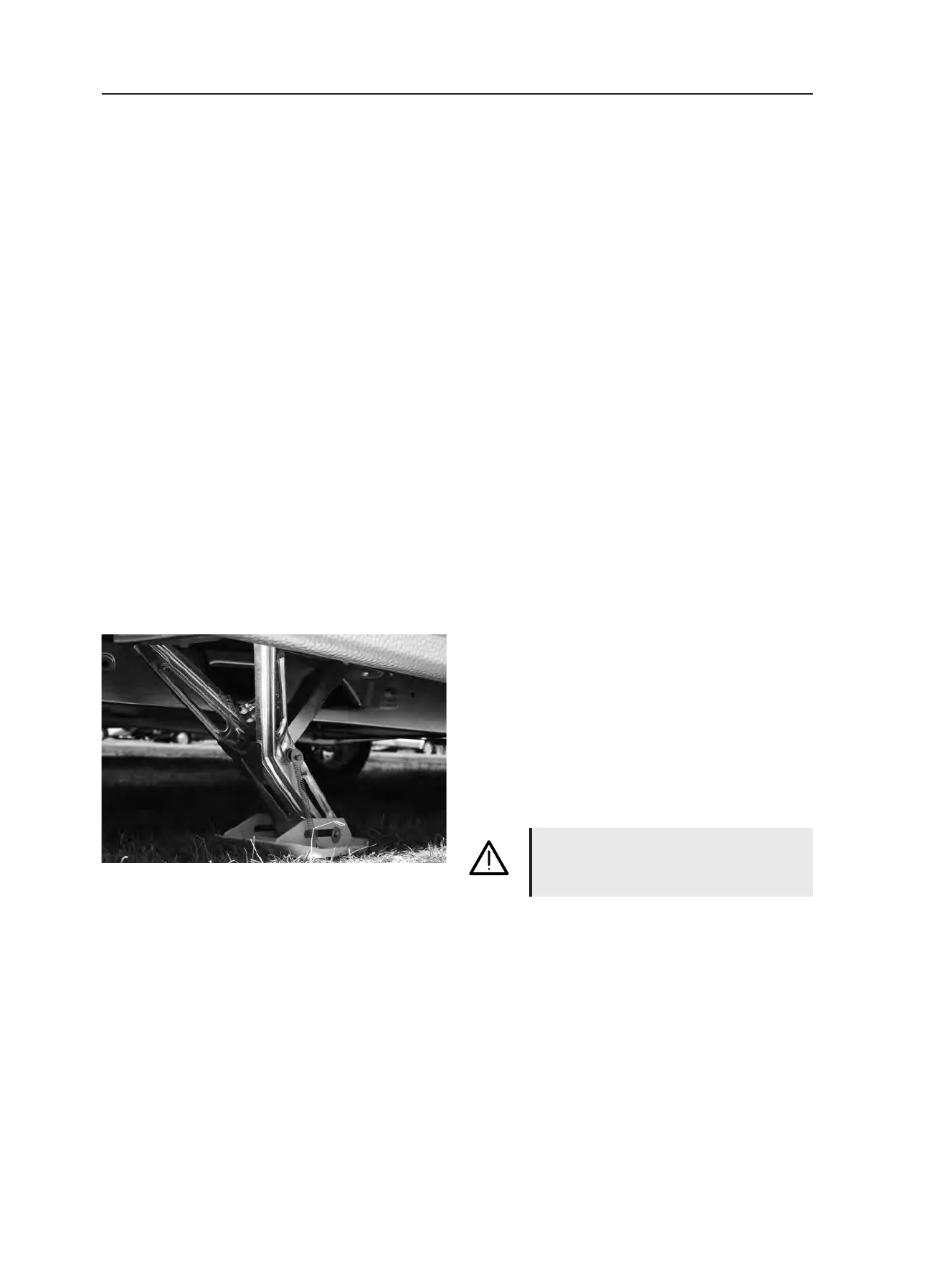

3.5 Rotating stanchions
The rotating stanchions are located in the front
and rear under the camper.
Turning the rotating stanchions outward
•
Park the vehicle as horizontally as possible.
• On soft ground, lay a sturdy mat or suitably
sized board under the rotating stanchions to
prevent the camper from sinking.
• Turn the rotating stanchions outward.
The rotating stanchions may only
be used for support, and not for lev-
eling out or raising.
Turning the rotating stanchions inward
•
With the crank, turn the rotating stanchions
inward to the horizontal position.
The crank for the rotating stanchions is located
in the bottle container at the front; it is clipped
into a holder.
Brakes should be checked the rst time after
driving 700-1200 km, but no later than after
the rst 6 months!
• Check the settings of the brake system
• If necessary, have the brake system adjusted
• For standard axles, check the axial end play
of the wheel hub bearings
Maintenance after 10,000 - 15,000 km or every
12 months
• Adjust the wheel brakes of the brake system
• Check the brake linings for wear by means of
the checking tap in the brake shield
Maintenance after 30,000 km or every 24
months
• Major brake inspection according to
manufacturer‘s maintenance plan
