Fenix G56.2

Rev. 0.2 – G56.2

Bag A

Front end

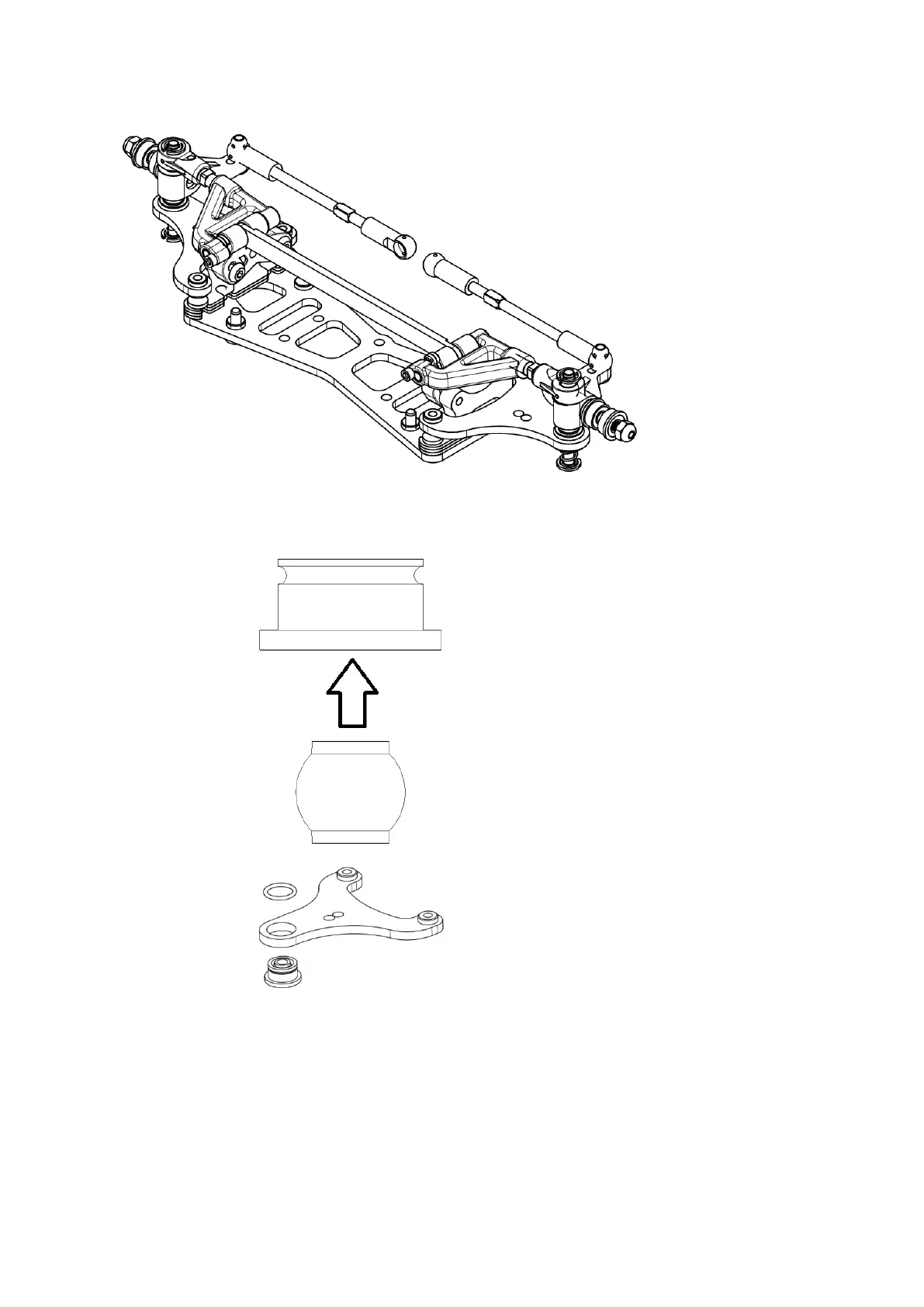

2 x G56038 Sphere

holder

2 x M20-K3 6mm sphere

Make 2 sets

Note: Be sure that the sphere holder fit easily, you might have to enlarge the hole with

some sandpaper.

Insert the group into

the G562-11 front arm –

Fix the sphere holder

with the provided O-

ring

Make 2 mirror sets.
