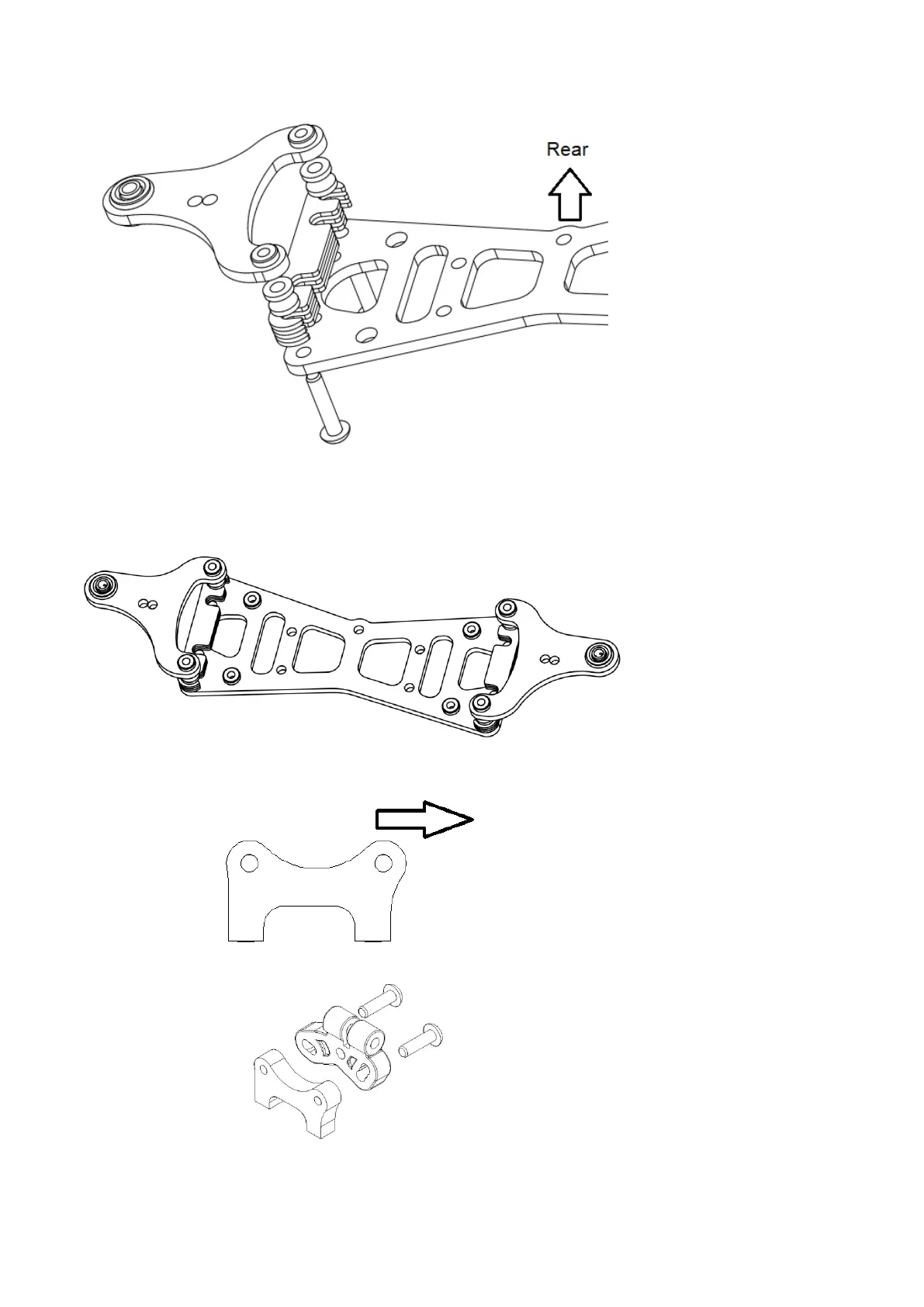

Insert the OPT-038
Oring around the
sphere holder.
Insert 2 HW030 M3x16
button screw into G562-
10.
Insert 2 FX088 over the
screw and tight the
lower arm.
Use the provided G562-
14 shims to adjust the
front ride height.
Make 2 sets mirror like
See note1
Rear of the car
Front of the car
Front-end should look
this way
Take care of the
direction for G56-039 .
The arrow is toward the
front of the car.
Secure the G56-030
upper arm mount to the
G56-039 using 2 HW004
M3x10mm Hex button
screw.
You have to prepare 2
mirror sets.
