Rev. 0.2 – G56.2

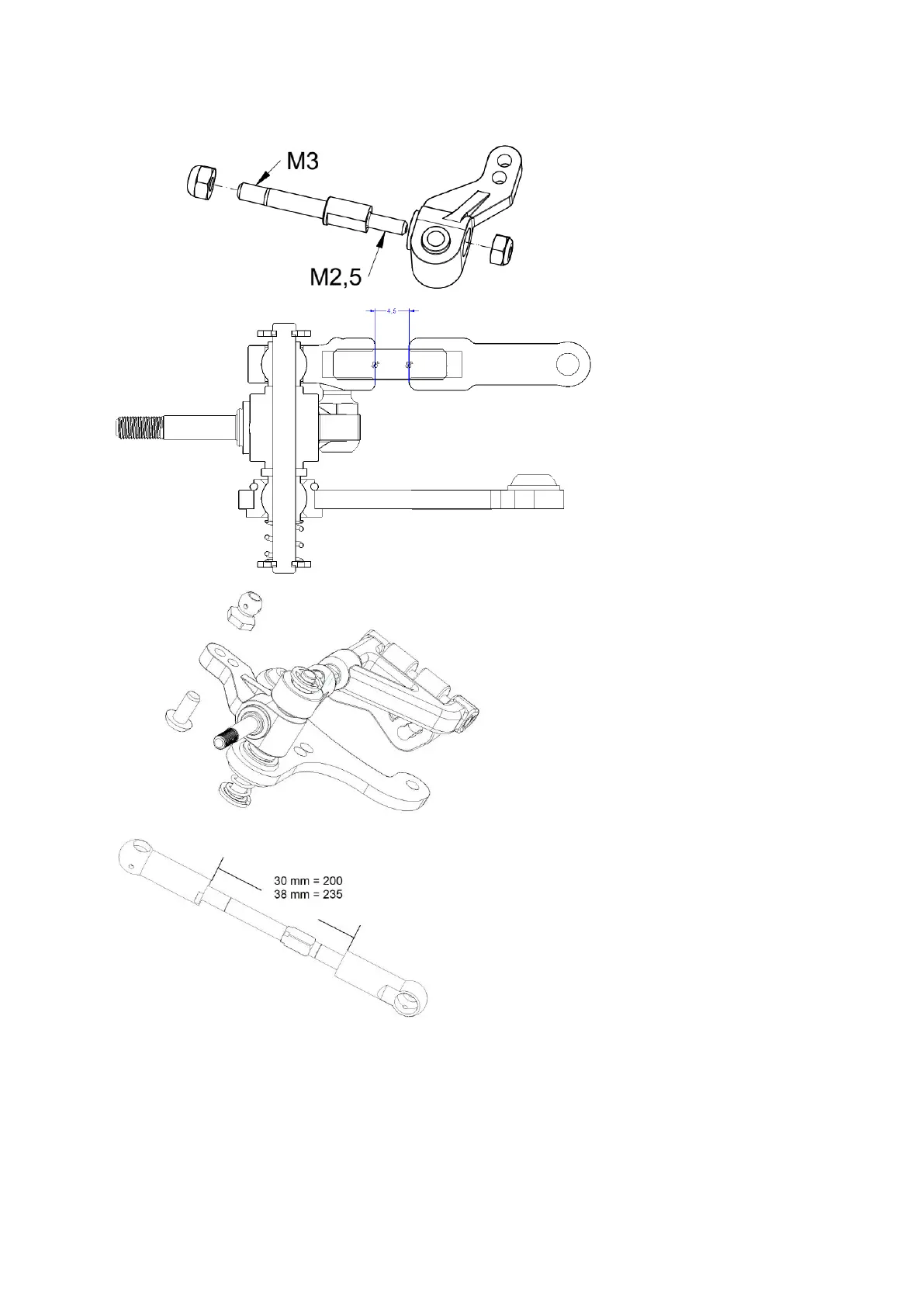

Make 2 sets
Set the distance at
4.5mm.
The proper camber
setting should be set
with the car ready to
run.
Slide the kingpin and
spring as shown, close
them with the seeger
ring
Assemble the FU-FX48
ball stud using the HW-
003 M3x8 button screw
as shown.
The dimension shown
is a starting point, final
refinement will be
done while setting the
model
Make 2 sets
