Fenix G56.2 - Bag B: Servo Holder Assembly; Servo Holder and Servo Selection

Fenix G56.2
8
Rev. 0.2 – G56.2

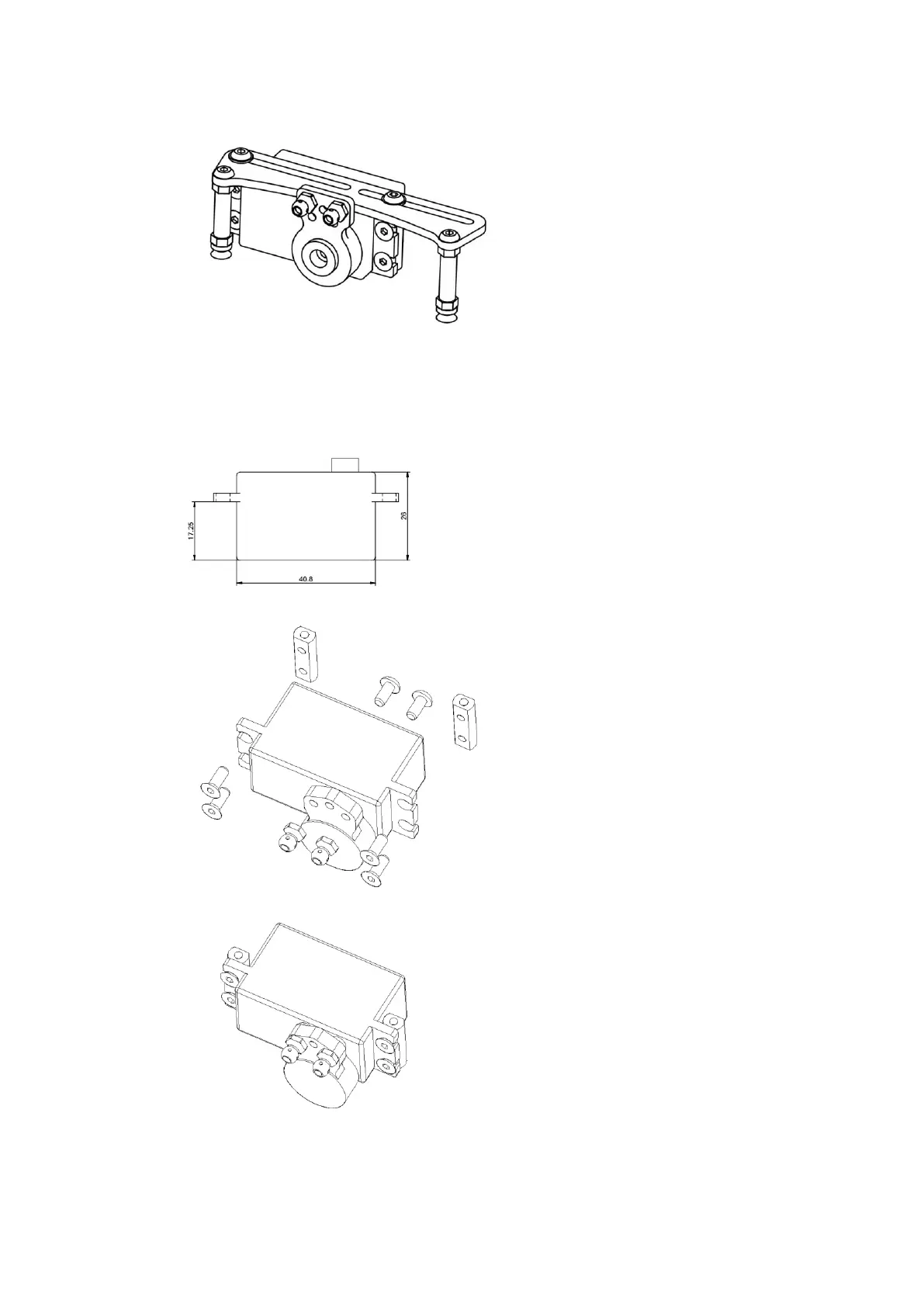

Bag B
Servo Holder
Servo and servo saver
are not included, G56.2
need a low profile
servo.
Note the dimension of
the servo suggested
Use the 2 x HW003
M3x8mm button to
secure the FX-FU48 to
the servo saver.
Use the 4 x HW008
M3x8 countersunk
screw to fix the FX022
servo mount
Assembled group.
Servo saver should be
vertical when servo is
neutral.
