Fenix G56.2 - Bag C: Motor Pod Assembly; Motor Pod and V-Link Attachment

Fenix G56.2
9
Rev. 0.2 – G56.2

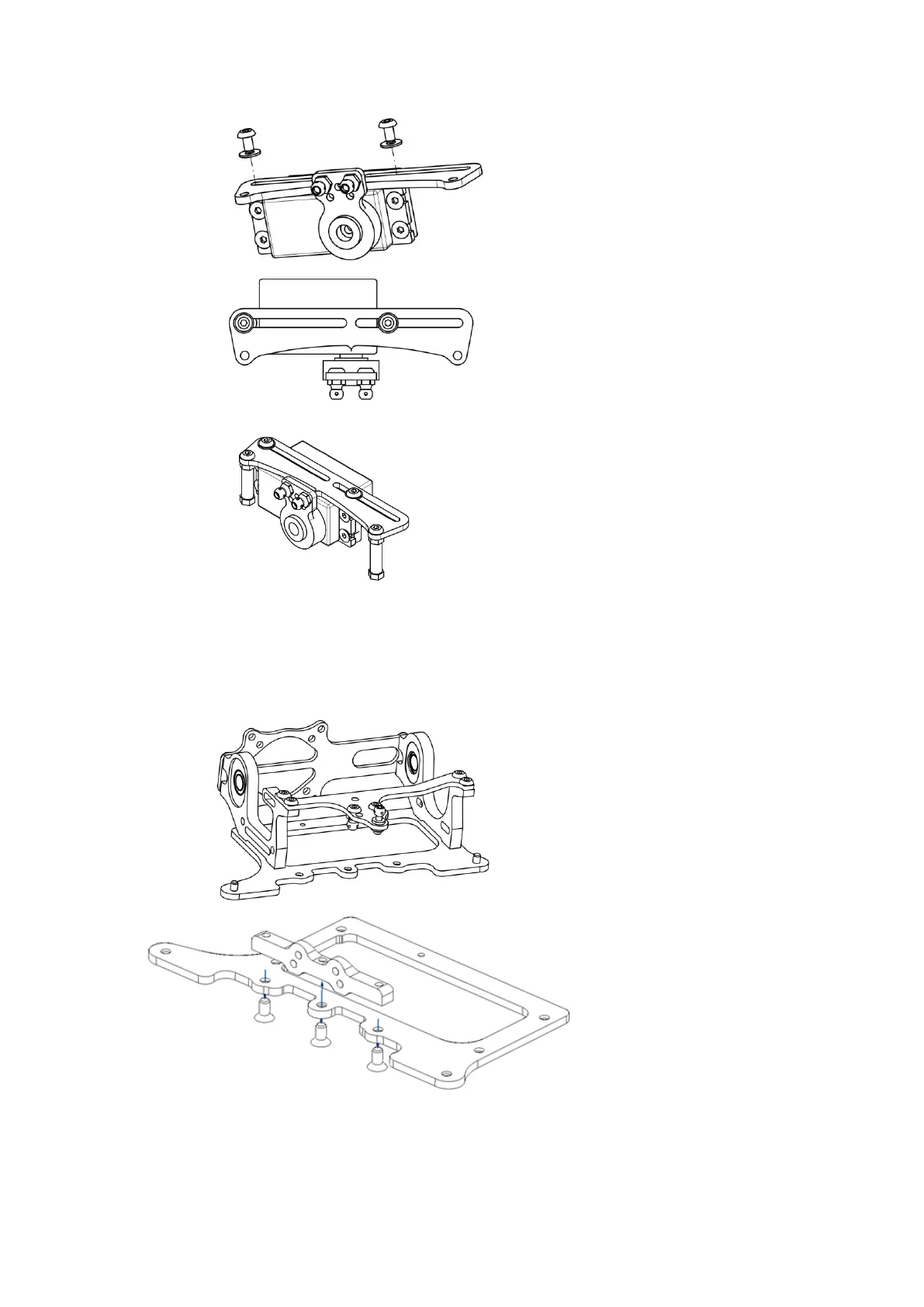

Using the 2 x HW0018
washer and 2 x HW008
M3x6 Button, fix the
servo group to the
G562-31 servo holder
Trick!
Use the arrow in the
servo holder to center
the servo.
Keep the provided 2 x 1.5mm shims and screws for a further step
Fix the 2 x FX0052
20mm post to the
servo holder using 2 x
HW003 M3x8 button
screw
Bag C
Motor pod
Using 3 x HW012
M3x6 countersunk
screw to fix the V-
link2 to the motor
pod
