This document describes the Fenvi FV-AX3000 Wi-Fi card for desktop computers, providing installation instructions and regulatory information.

Function Description

The Fenvi FV-AX3000 is a Wi-Fi card designed for desktop computers, enabling wireless network connectivity and, if equipped, Bluetooth functionality. It allows users to connect their desktop PCs to Wi-Fi networks and use Bluetooth devices. The card supports both full-height and low-profile brackets, making it compatible with various PC case sizes.

Important Technical Specifications

Card Type: Wi-Fi card for desktop computers.
Bracket Compatibility: Supports both 12CM (full-height) and 8CM (low-profile) brackets.
Interface: PCI Express x1 slot, also compatible with x4, x8, and x16 PCI Express slots.
Connectivity: Provides Wi-Fi connectivity. If the card includes Bluetooth functionality, it requires a connection to a motherboard's USB header.
Antennas: Requires external antennas for wireless signal reception.
Driver: Comes with a driver CD for installation.

Usage Features

Installation Process

The installation process involves several steps, depending on the PC case size and whether the card includes Bluetooth functionality.

Bracket Selection:
- Determine if your PC case requires a full-height (12CM) or low-profile (8CM) bracket.
- Attach the appropriate bracket to the Wi-Fi card using the provided screws. The manual illustrates both full-height and low-profile options.
Card Insertion:
- Locate an available PCI Express x1 slot on your motherboard. The card is also compatible with x4, x8, and x16 PCI Express slots.
- Carefully insert the Wi-Fi card into the chosen PCI Express slot until it is firmly seated.
- Secure the card to the PC case using the screw provided with the case or the card's bracket.
Bluetooth Connection (if applicable):
- If your FV-AX3000 card includes Bluetooth functionality, you will need to connect the provided Bluetooth cable.
- Locate a 9-pin USB header on your motherboard, typically labeled "USB" or similar.
- Connect one end of the Bluetooth cable to the card and the other end to the motherboard's USB header. The manual shows the correct orientation for the D- and D+ pins.
Antenna Installation:
- Attach the external antennas to the connectors on the rear of the Wi-Fi card.
- Ensure the antennas are securely tightened to optimize signal reception. The manual shows two antennas being screwed onto the card's connectors.
Driver Installation:
- After hardware installation, insert the provided driver CD into your computer's optical drive.
- Follow the on-screen instructions to install the necessary drivers for the Wi-Fi and Bluetooth (if applicable) functionalities.
- Alternatively, drivers can often be downloaded from the manufacturer's website if an optical drive is not available or if newer drivers are required.

Regulatory Compliance (FCC WARNING)

The device complies with Part 15 of the FCC Rules, indicating it is subject to the following conditions:

It may not cause harmful interference.
It must accept any interference received, including interference that may cause undesired operation.

Users are warned that any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The equipment has been tested and found to comply with Class B digital device limits, designed to provide reasonable protection against harmful interference in a residential installation.

If the equipment causes harmful interference to radio or television reception, users are encouraged to try to correct the interference by:

Reorienting or relocating the receiving antenna.
Increasing the separation between the equipment and receiver.
Connecting the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consulting the dealer or an experienced radio/TV technician for help.

Maintenance Features

Troubleshooting

The manual provides guidance for troubleshooting interference issues, suggesting adjustments to antenna orientation, increasing separation from other devices, or connecting to a different power outlet. For further assistance, users are advised to contact customer service or a qualified technician.

Customer Support

For any problems related to drivers or instructions, users can contact customer service via email at ktt@fenvi.cn.

RF Exposure Guidelines

To maintain compliance with FCC's RF Exposure guidelines, the equipment should be installed and operated with a minimum distance of 20cm between the radiator (the device) and the user's body. Only the supplied antenna should be used. This ensures that the device operates within safe radio frequency exposure limits.

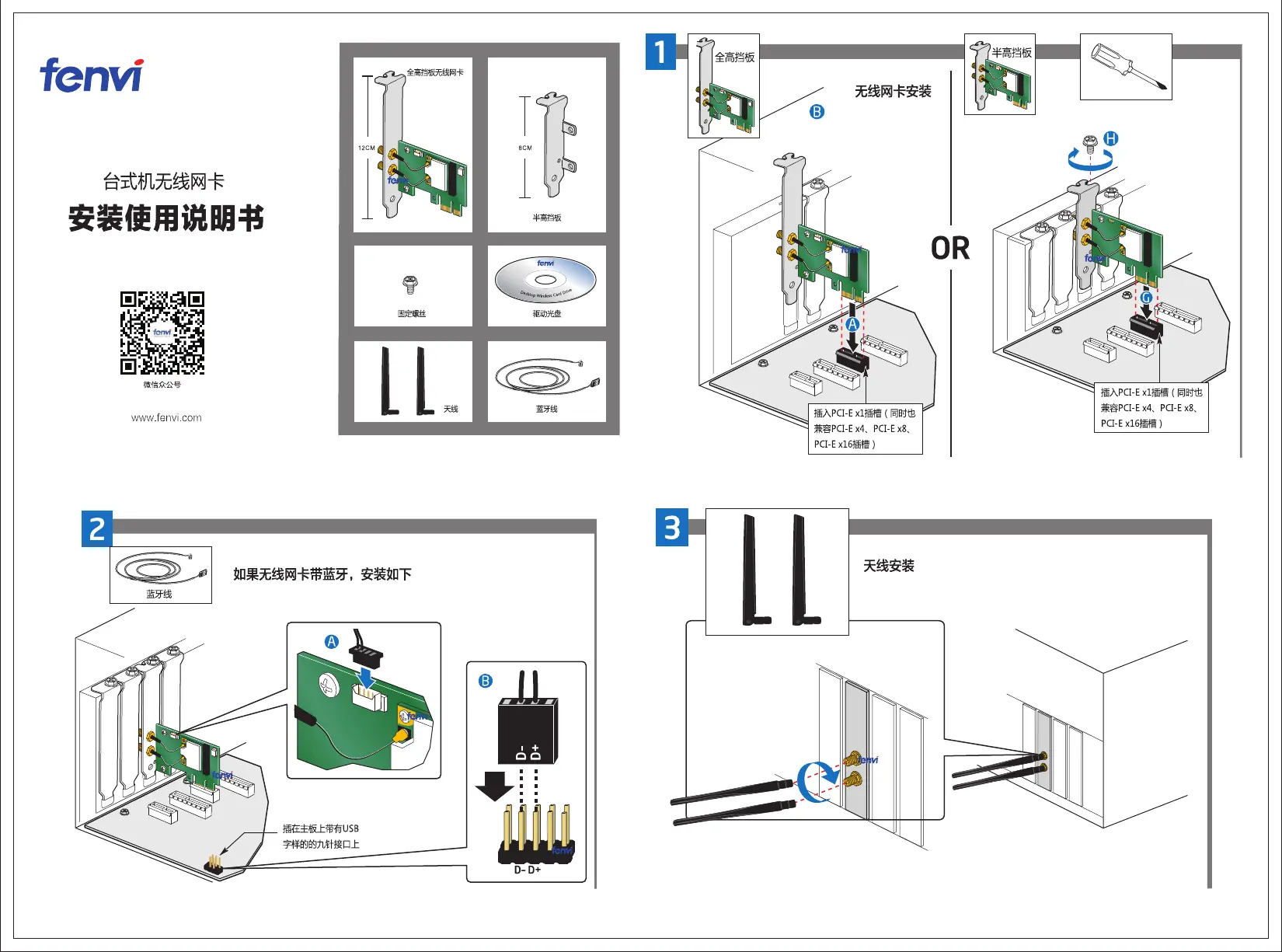

fenvi FV-AX3000 - Bluetooth Module Connection; Bluetooth Cable to USB Header; Antenna Setup; Attaching Antennas
