Operation
31

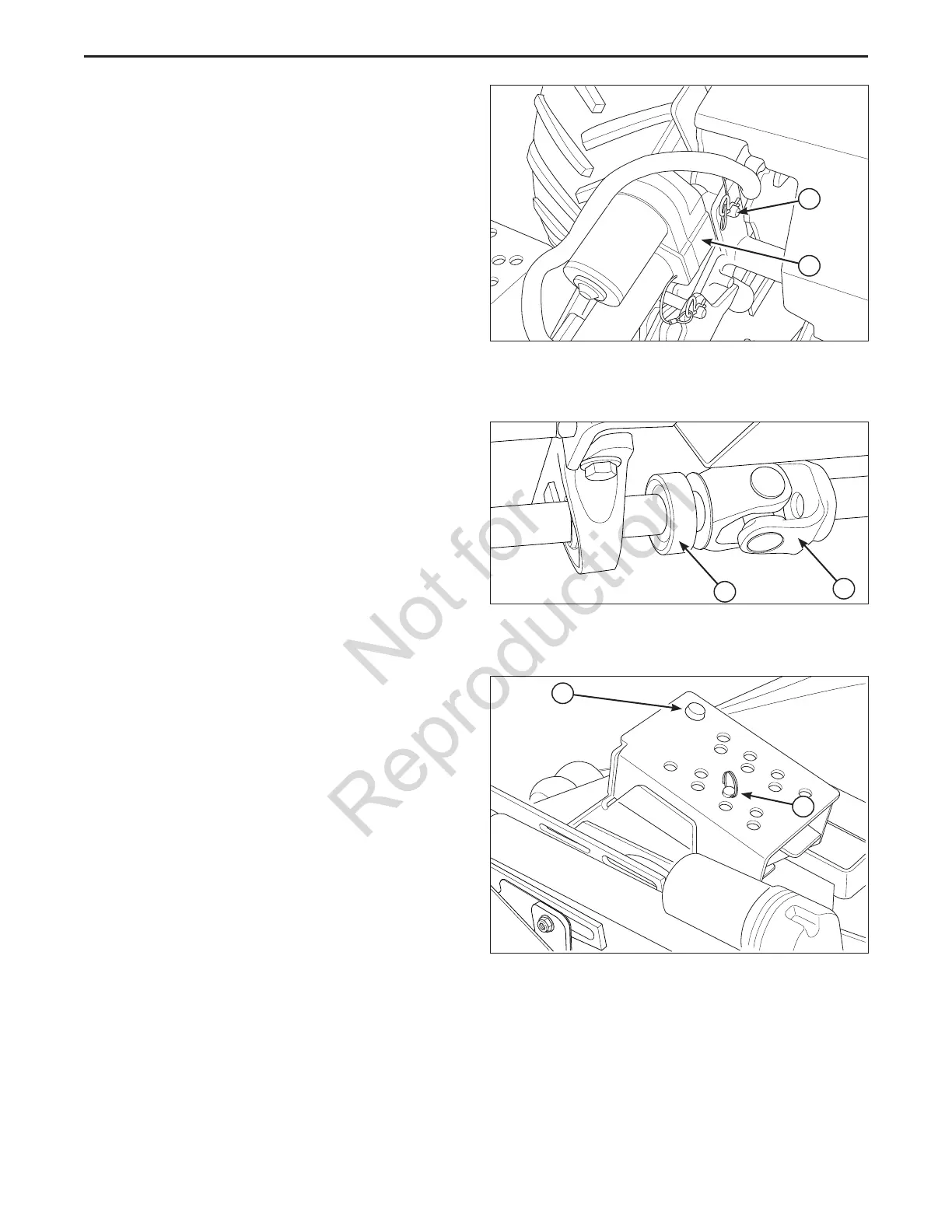

Figure 17. Actuator
A. Actuator
B. Pin with Lanyard
A
B
Installing the Attachment
1. Remove the pins with lanyards (B, Figure 15) from the
rear holes of the attachment latches (D).
2. Drive the tractor into the mower deck.
3. Push the deck attachment lever (E) forward and down.
Make sure the attachment latches latch into place.
4. Reconnect the actuator to the tractor.
5. Reconnect the actuator wire harness (A, Figure 16) to
the main harness of the tractor.
6. Reconnect the drive shaft.
7. Retract the actuator completely.
8. Reconnect the two (2) spring links (C, Figure 15) to the
tractor.
Positioning the Mower Deck for Operation
1. Extend the actuator fully.
2. Install the pins with lanyards into the attachment lift
arms (A, Figure 15).
3. Reposition the cutting height adjustment pin to the
desired cutting height.
4. Retract the actuator until contact is made with the
cutting height adjustment pin (A, Figure 19). Continue
to retract the actuator until the operating position
indicator lamp (B) stops flashing and shuts off.
NOTE: The actuator MUST be positioned correctly before
attempting to move the ground speed control levers out of
their NEUTRAL positions. If the actuator is not positioned
as described in the above step the mower’s safety
interlock system will cause the engine to shut off.
Figure 18. Drive Shaft
A. Drive Shaft Universal Joint
B. Drive Shaft Coupler
A
B
Figure 19. Mowing Height Adjustment
A. Cutting Height Adjustment Pin
B. Operating Position Indicator Lamp
A
B
