Features & Controls
B. Glow Plug Indicator:
Lamp that indicates that the glow plugs are heating.
Hold the ignition key in the “HEAT” position until
indicator lamp turns off, then turn the key to start.
C. PTO (Power Take Off) Switch:
The PTO switch engages and disengages the mower.
Pull UP on the switch to engage the mower, and push
DOWN to disengage the mower.
D. Ignition Switch:
The ignition switch starts and stops the engine, it has
four positions:
HEAT Heats the glow plugs.
OFF Stops the engine and shuts off the
electrical system.
RUN Allows the engine to run and
powers the electrical system.
START Cranks the engine for starting.
NOTE: Never leave the ignition switch in the ON
position with the engine stopped–this drains the
battery.
E.
Water Temperature Gauge & Indicator:
Gauge measures the engine coolant temperature.
Lamp that indicates a high coolant temperature. If
the indicator lamp is ON, it will turn the PTO OFF.
F.
Oil Pressure Indicator
Lamp that indicates a low oil pressure condition. If
the indicator lamp is ON, it will turn the PTO OFF.
G. Hour Meter:
The hour meter measures the number of hours the
PTO has been engaged. The hour meter has a self
contained power source so the total hours are always
visible.
H.
Voltage Gauge
Gauge measures the output voltage of the engine
charging system.
I. (S/N: 2016098450 & Below) Hydraulic Mower Lift
Switch:
Press the mower lift switch to the right (away from the
operator’s seat) to raise the mower deck it locks into
the 6” (15,2 cm) position.

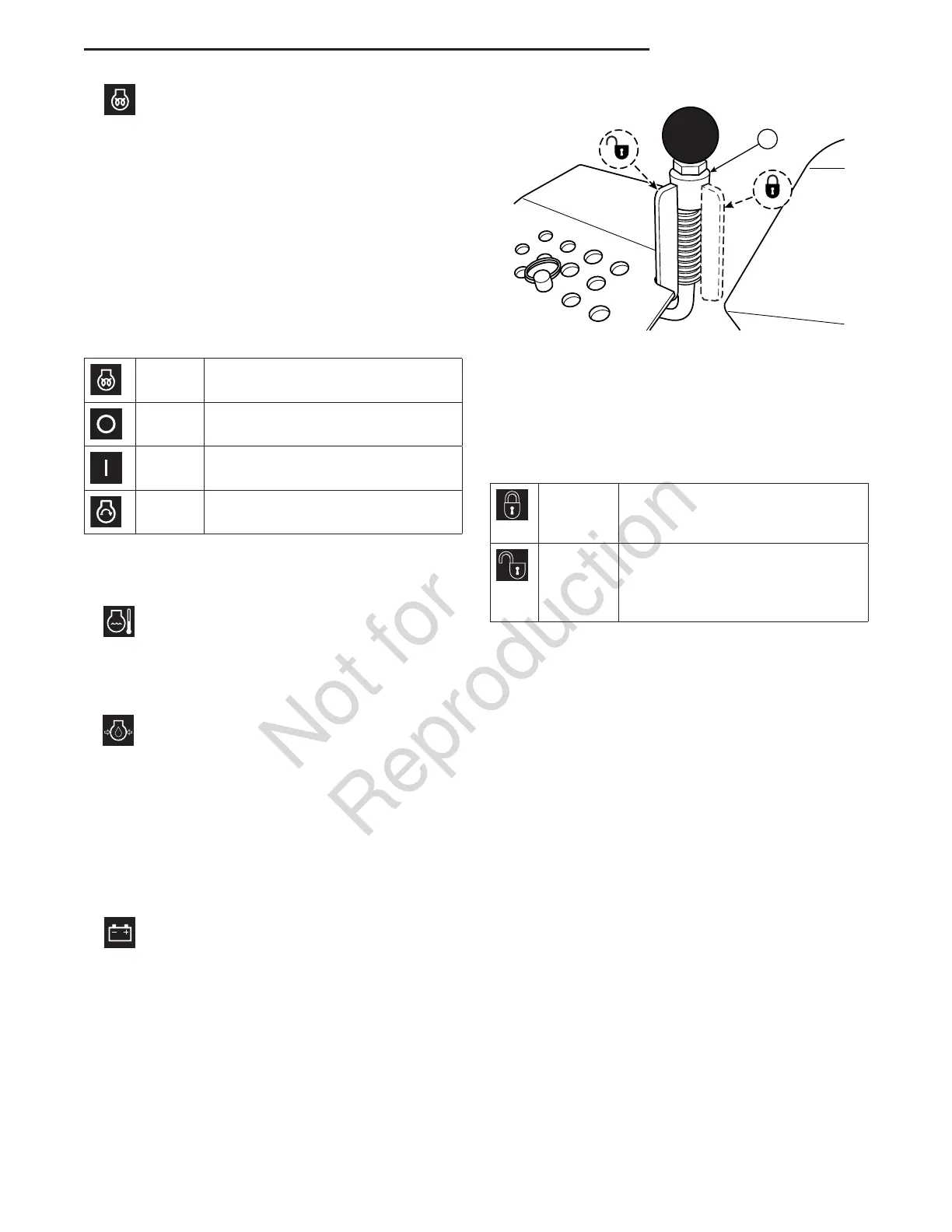

A. (S/N: 2016098451 & Above) Deck Lift Lock
Lever Lockout Plate:
The Deck Lift Lock Lever Override can be used to
prevent the mower deck from locking the deck in the
TRANSPORT position if you raise the deck during
operation to clear an object.
LOCK This position will allow the mower
deck to lock in the TRANSPORT
position when raised.
UNLOCK This position will allow the mower
deck to be raised and lowered
without locking into the transport
position.
