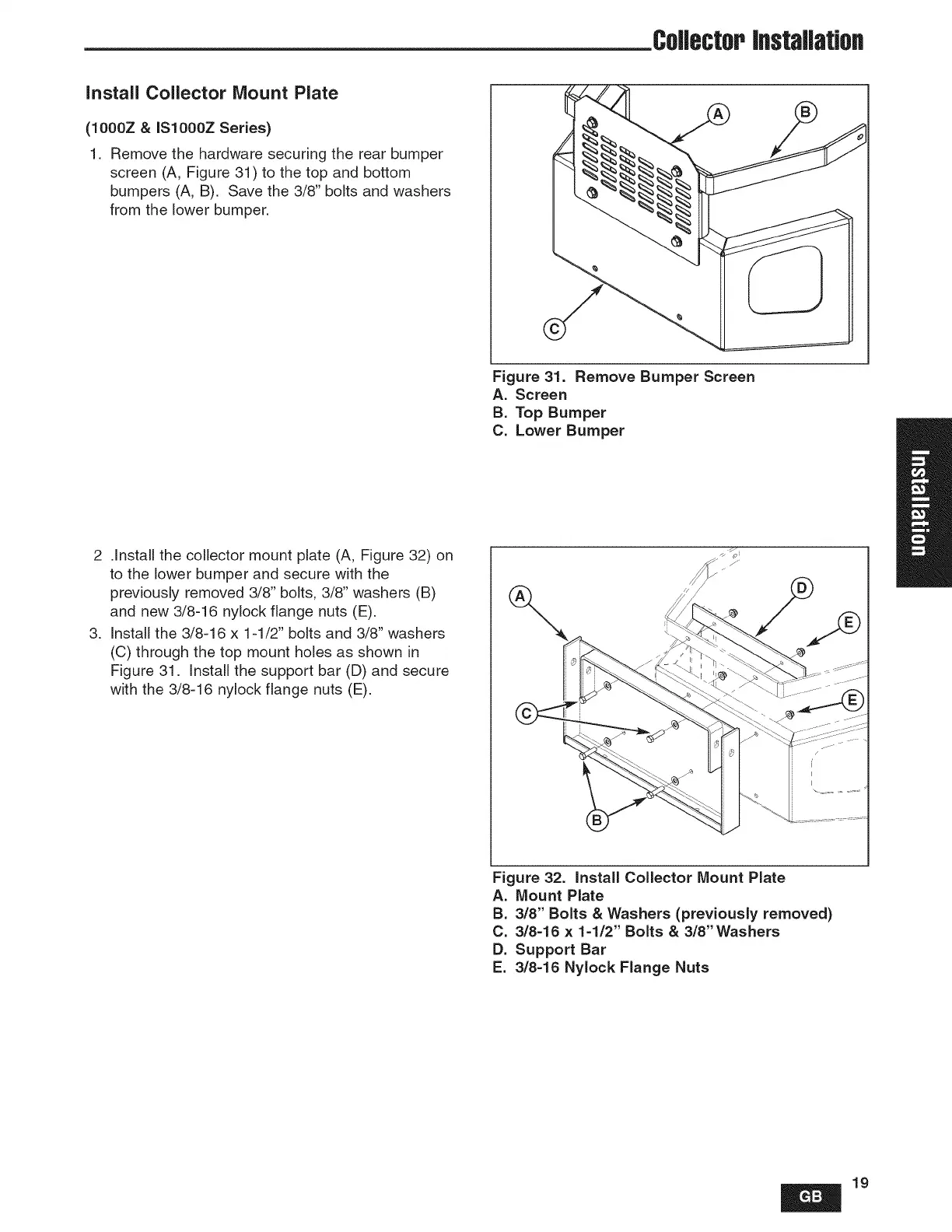

CoflectorJnstaflatJon
InstalJ ColJector Mount PJate
(lO00Z & ISlOOOZ Series)
1. Remove the hardware securing the rear bumper
screen (A, Figure 31) to the top and bottom
bumpers (A, B). Save the 3/8" bolts and washers
from the lower bumper.
Figure 31. Remove Bumper Screen
A. Screen
B. Top Bumper
C. Lower Bumper
2 .Install the collector mount plate (A, Figure 32) on
to the lower bumper and secure with the
previously removed 3/8" bolts, 3/8" washers (B)
and new 3/8-16 nylock flange nuts (E).
3. Install the 3/8-16 x 1-1/2" bolts and 3/8" washers
(C) through the top mount holes as shown in
Figure 31. Install the support bar (D) and secure
with the 3/8-16 nylock flange nuts (E).
/J,
I
Figure 32. Install Collector Mount Plate
A. Mount Plate
B. 3/8" Bolts & Washers (previously removed)
C. 3/8=16 × 1=1/2" Bolts & 3/8" Washers
D. Support Bar
E. 3/8-16 Nylock Flange Nuts
19
