WeightMountInstallation
(J$45O()ZSepJes)
InstalJ Weight Carrier
1. Support the front of the frame in the center of the
unit with a jackstand.
2. Remove the 1/2-13 x 5" bolts (B, Figure 53) and
1/2-13 nylon lock nuts (C) securing the front
suspension arms to the frame.
3. Install the weight carrier (A) onto the front of the
unit and secure with the 1/2-13 x 5" bolts and 1/2-
13 nylon lock nuts previously removed.
4. Install the counter weights (D) in the weight carrier
and secure with the retaining pin (E) and hairpin
clips (F).
/
/ f
®

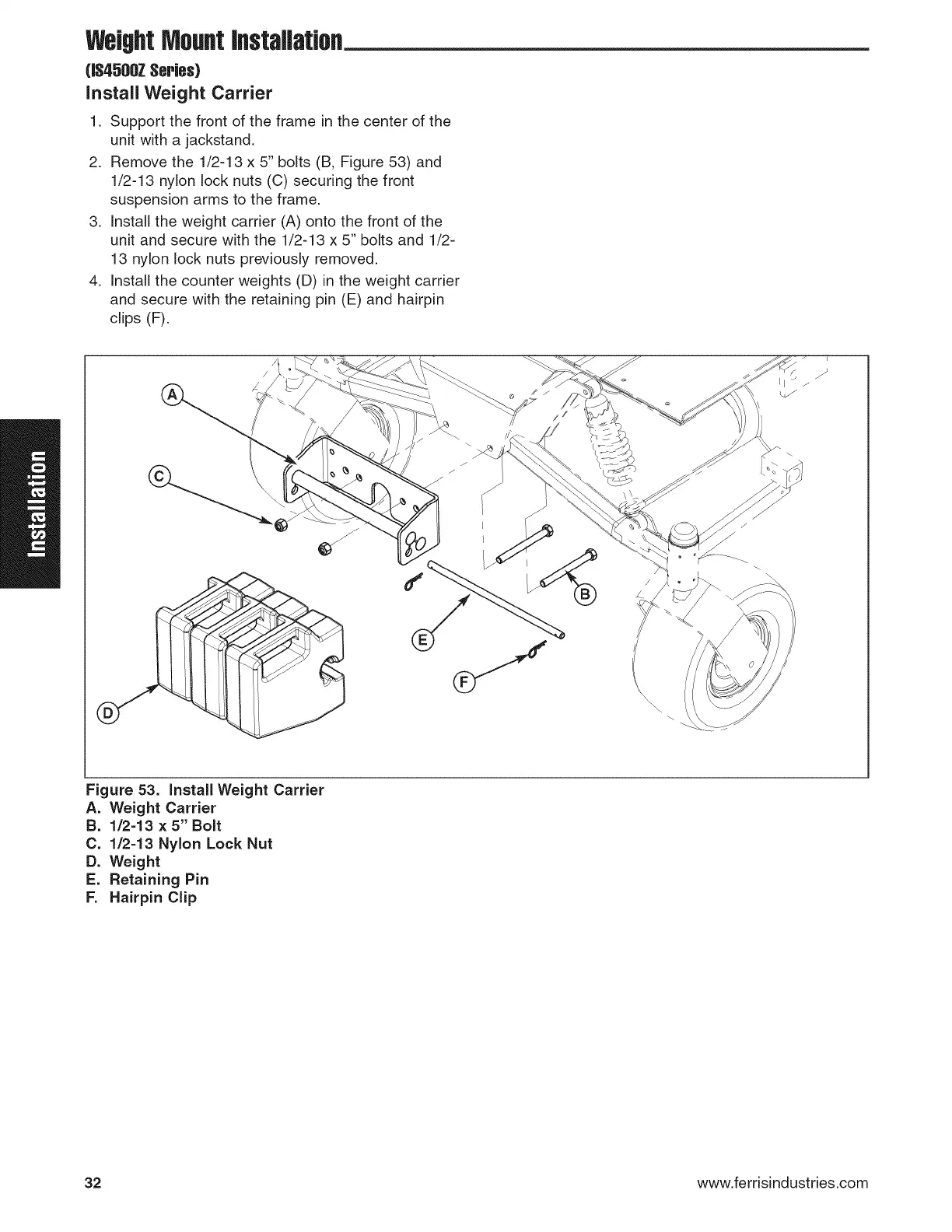

Figure 53. Install Weight Carrier
A. Weight Carrier
B. 1/2=13 x 5" BoJt
C. 1/2-13 Nylon Lock Nut
D. Weight
E. Retaining Pin
F. Hairpin Clip
