Install Weight Carrier
1. Install the weight carrier (A, Figure 52) onto the
front of the unit and secure with the 3/8-16 x 1-
1/4" bolts (C), 3/8" washers (B) and 3/8-16" nylock
flange nuts (G).
NOTE: Use top holes in the weight carrier for the
IS2OOOZSeries (as shown in Figure 52).
2. Install the counter weights (D) in the weight carrier
and secure with the retaining pin (E) and hairpin
clips (F).
WeightMeufltJflstallatm
{Iszeeez series)

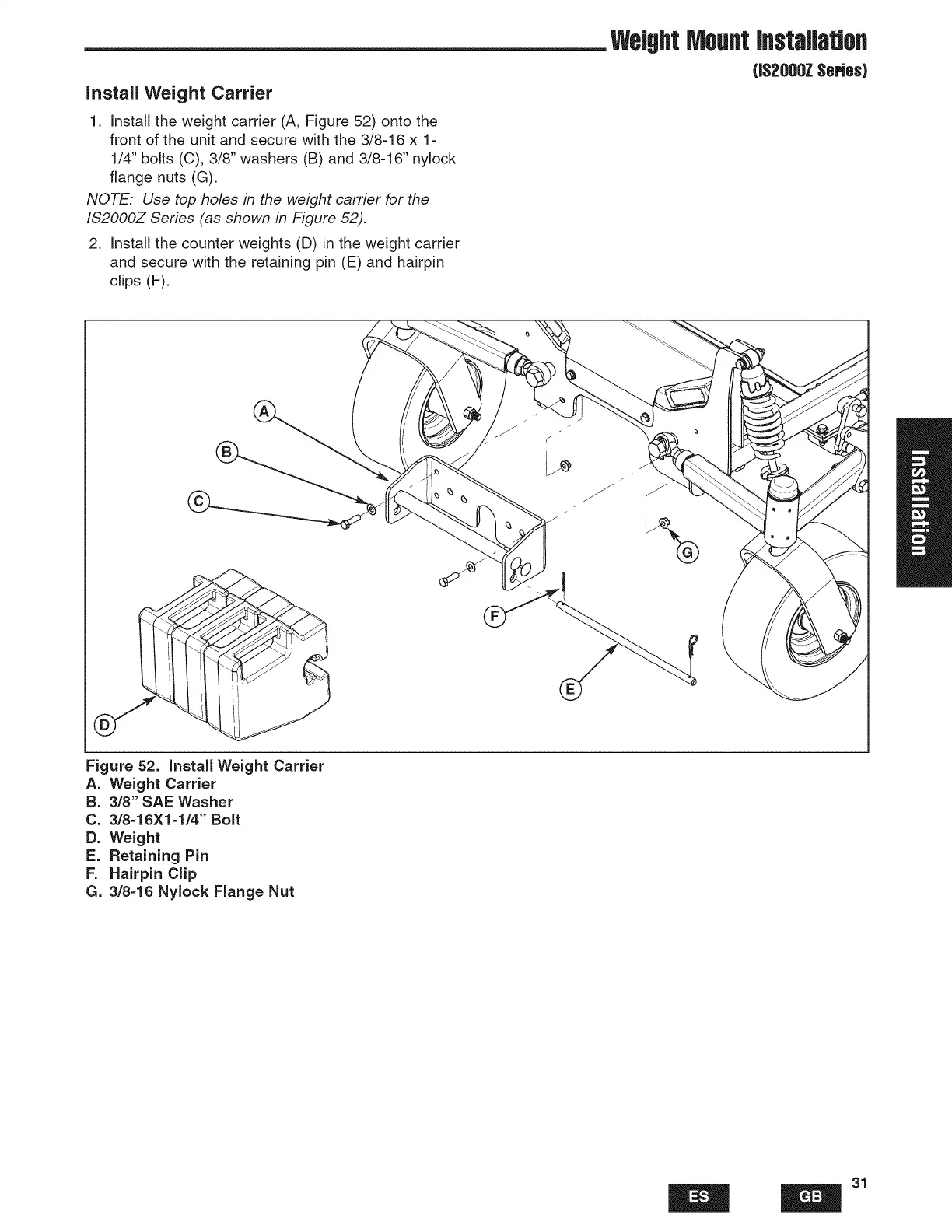

Figure 52. Install Weight Carrier
A. Weight Carrier
B. 3/8" SAE Washer
C. 3/8=16X1-1/4" Bolt
D. Weight
E. Retaining Pin
F. Hairpin Clip
G. 3/8-16 Hylock Flange Hut
31
