WeightMou.tIflstaflatm
{JSSOOZ& iS| 5007 Series)
Install Weight Carrier
1. Install the weight carrier (A, Figure 51) onto the
front of the unit and secure with the 1/2-20 x 1-
1/4" bolts (B), 1/2" washers (C) and 1/2-20 nylon
lock nuts (D).
NOTE: Use outer holes in the weight carrier for the
/S1500Z Series (shown) and the inner holes for the
IS4500Z Series.
2. Install the counter weights (E) in the weight carrier
and secure with the retaining pin (F) and hairpin
clips (G).
®
J

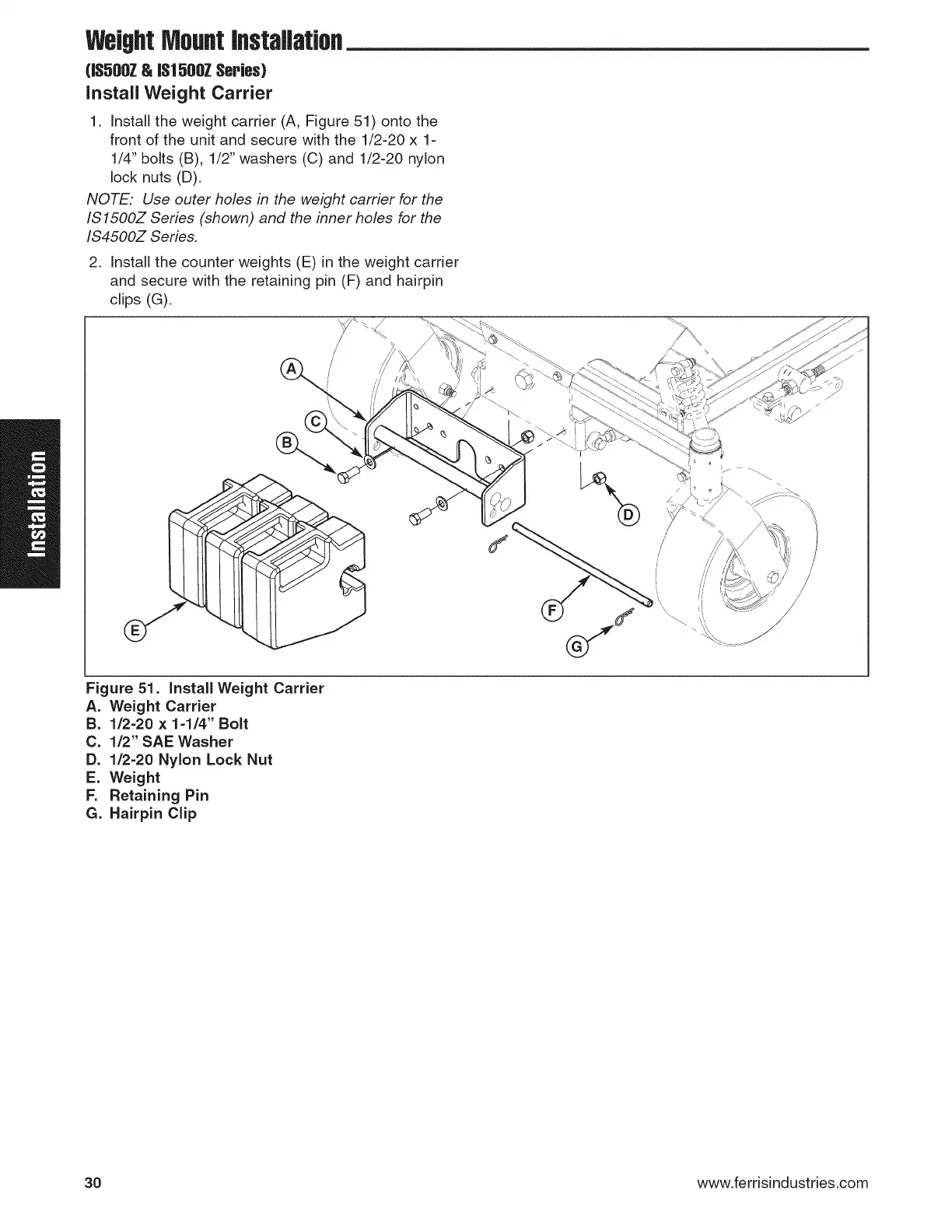

Figure 51. Install Weight Carrier
A. Weight Carrier
B. 1/2=20 x 1-1/4" Bolt
C. 1/2" SAE Washer
D. 1/2=20 Nylon Lock Nut
E. Weight
F. Retaining Pin
G. Hairpin Clip
30 www.ferrisindust ries.com
