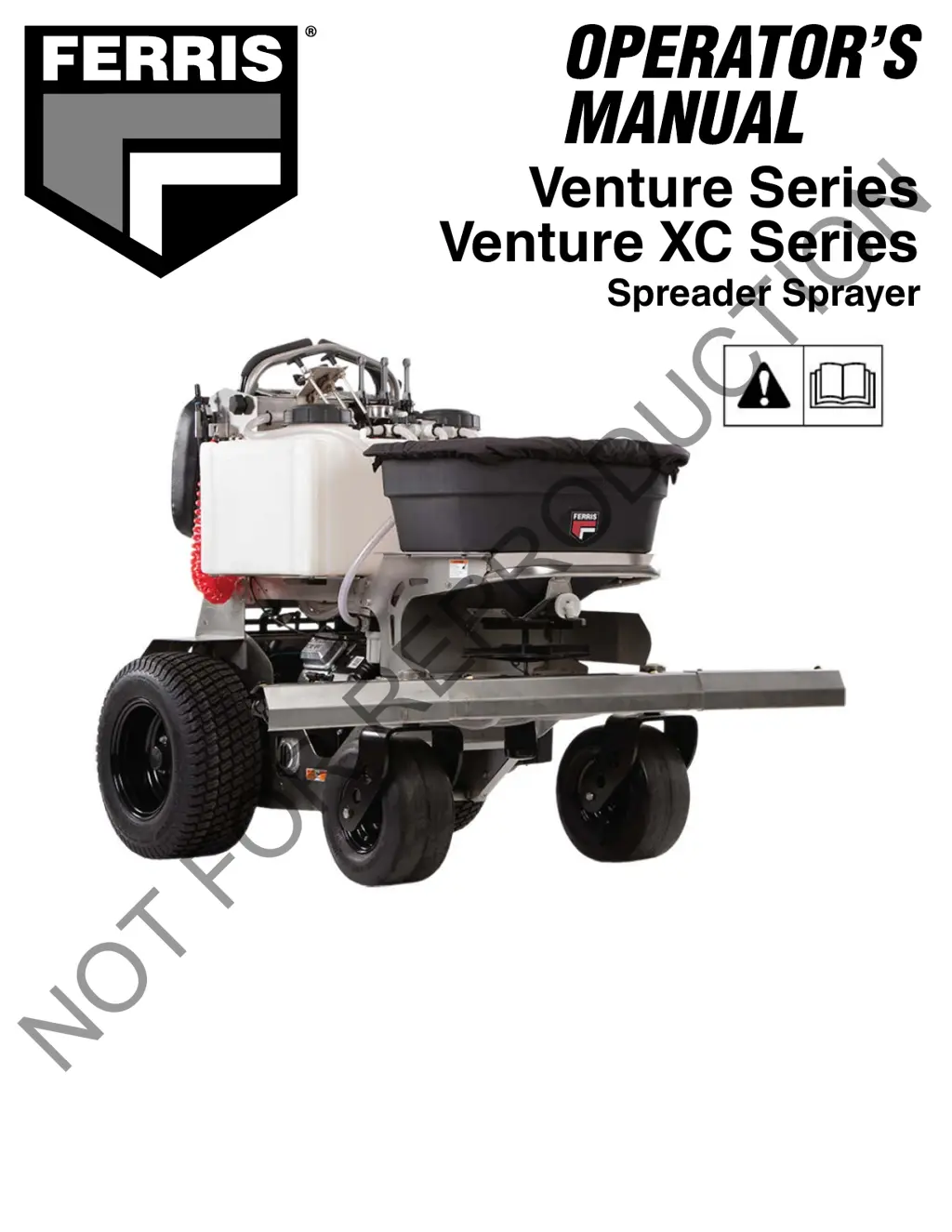

Venture Series
Venture XC Series
Model Description
5901754 VENTURE (FS3100)
5901755 VENTURE XC (FS3200)
5106722
Rev A
Copyright © Briggs & Stratton Corporation,
Milwaukee, WI, USA. All rights reserved.
Spreader Sprayer
This manual is available in Spanish. For a copy, contact your Ferris dealer or www.ferrismowers.com.
Este manual está disponible en Español. Para obtener una copia, póngase en contacto con su
distribuidor Ferris o www.ferrismower.com.
NOT FOR REPRODUCTION

Table of Contents

Questions and Answers

  • W
    William FloresAug 11, 2025
    What to do if my Ferris Paint Sprayer machine does not start?
    • T
      Timothy BrownAug 11, 2025
      If your Ferris Paint Sprayer doesn't start, several factors could be at play. First, ensure you have enough fuel in the tank. Next, check that the fuel shutoff valve, located near the choke lever on the engine's right side, is open. Also, the fuel line may be clogged, so cleaning it might help. Contaminated fuel can also prevent starting, so clean the fuel tank and add fresh fuel. Make sure the choke setting is correct for the current conditions; cold starts need the choke, while warm starts might not. Finally, the ignition switch must be in the “ON” position before attempting to start.
  • K
    Karen KellerAug 17, 2025
    Why is my Ferris Paint Sprayer spraying pattern uneven?
    • D
      Deborah WongAug 17, 2025
      An uneven spraying pattern in your Ferris Paint Sprayer can stem from several causes. Check that the spray nozzle tips are correctly positioned and not damaged. Ensure the pressure gauge reads about 20 psi at full engine speed by adjusting the pressure relief knob. A clogged strainer or tip can also cause issues, so remove and inspect them, cleaning or replacing as needed. The filter might be clogged too; remove the sediment bowl and inspect the filter screen. Lastly, make sure the engine is running at full speed, as the spray system operates most efficiently under these conditions.
  • G
    George HallAug 22, 2025
    What to do if Ferris Paint Sprayer spreader pattern is uneven?
    • W
      Wayne CraigAug 22, 2025
      If the spreader pattern of your Ferris Paint Sprayer is uneven, start by checking the gate opening at the hopper's bottom for blockages. Remove any material and dislodge clumps around the gate. Inspect the agitator wire for wear, damage, or if it's missing. Also, the spread control baffle's position matters; refer to the Calibration section of this manual for centering the spread pattern. Ensure the spinner gearmotor spins freely by hand and inspect the gearmotor fuse under the console.
  • P
    Paul MorganAug 29, 2025
    How to fix a Ferris Paint Sprayer that won't spray?
    • R
      Ryan WallaceAug 29, 2025
      If your Ferris Paint Sprayer's spraying system isn't operating, begin by inspecting the pump fuse located in the fuse holder near the battery box. Verify that either the console switch or the foot platform switch activates the pump. Also, ensure the spray tank volume is adequate, as low levels can cause issues, especially on uneven terrain. If the pump is worn or damaged, check for liquid flow by loosening the suction and discharge fittings. If there's no flow, consider replacing the pump.
  • J
    John KleinSep 4, 2025
    Why won't my Ferris Paint Sprayer spreader operate?
    • E
      ejohnsonSep 4, 2025
      If your Ferris Paint Sprayer spreader isn't operating, examine the spinner for dirt, wear, or damage, and clean or replace it if needed. Also, inspect the spinner clip on the spinner's bottom; if it's damaged or missing, the spinner might not spin even if the shaft rotates. Replace the spinner clip if necessary.
