SUN G10 2S
8
Cod. 35445523 - 02/2007 (Rev. 00)
Montaggio ugello
Una volta determinato l’ugello corretto da utilizzare, pro ce de re come segue per il montaggio:
1 Svitare le viti “A”.
2 Togliere il co fa no “B”
3 Svitare per mez zo di una chiave il raccordo “C”
4 Estrarre dal raccordo il tubetto di rame “D”
5 Svitare leg ger men te le viti “E”
6 Ruotare ed estrar re il grupppo testa-portaugello “F”
7 Sfilare il portaugello “G” dalla testa di combusione “H”
8 Per mezzo di una chiave svitare l’ugello “I”

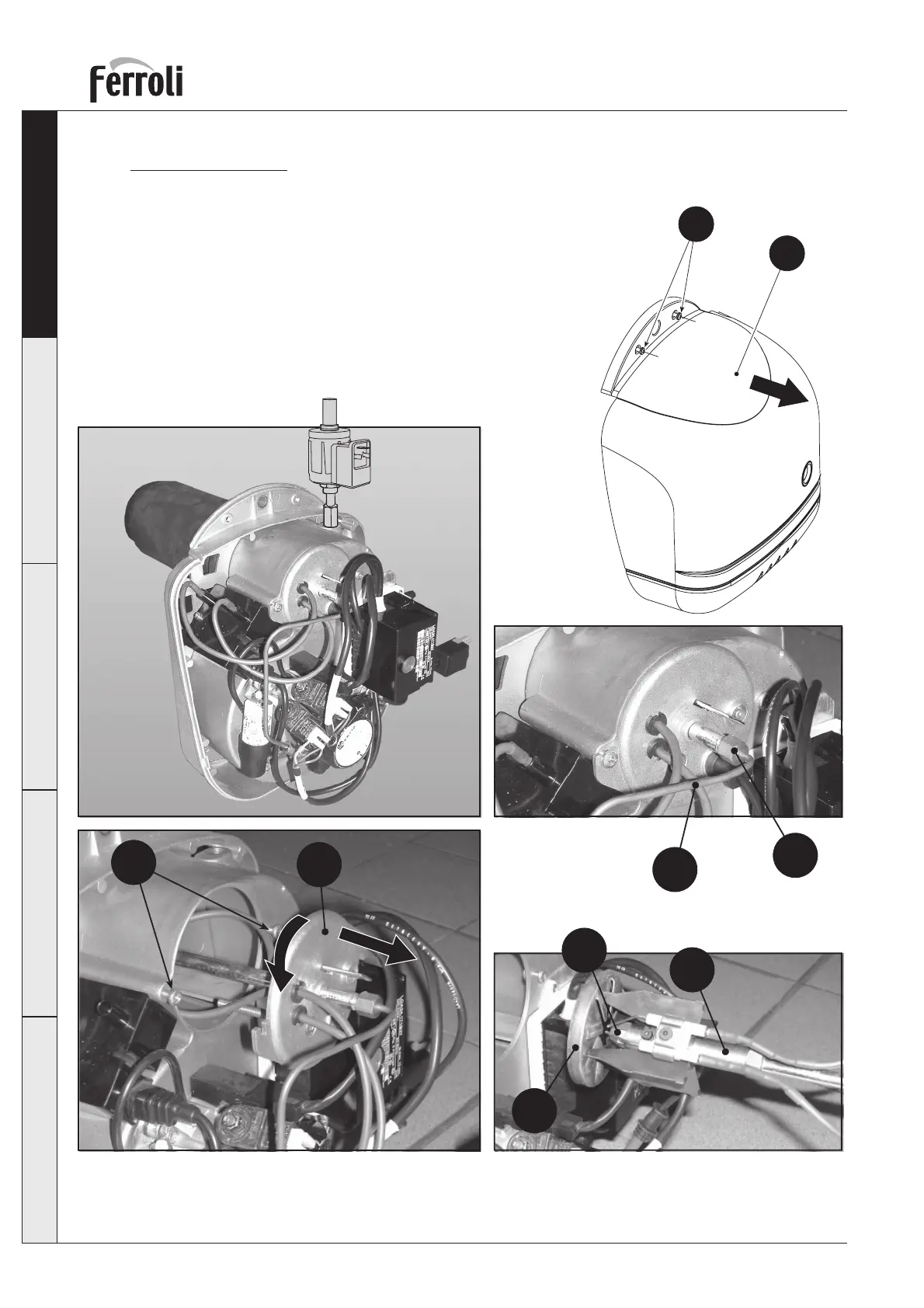

fig. 5
B
A
F
I
G
H
C
D
E
