Radar Training System, LabVolt Series
© Festo Didactic 22
•
•
•
•
•
•
•
•
Multiple test-points for complete learning experience.
Turnkey solution, including high quality student and instructor manuals.
List of Equipment
Qty Description
Model
number
1 Pulse Compression Radar Antenna _________________________________________________ 592570 (9604-B0)
1 Phase-Coded Pulse Compression Processor __________________________________________ 592571 (9615-00)
1 Accessories for 8097-C __________________________________________________________ 8092757 (9690-G0)
List of Manuals
Table of Contents of the Manual(s)
Phase-Coded Pulse Compression (Workbook) (593926 (52919-00))
1-1 Introduction to Phase-Coded Pulse Compression
1-2 Basic Concepts and Techniques
1-3 Pulse Compression Ratio and SNR Improvement
1-4 Phase-Code Compression Processing
2-1 Near-Perfect, Pseudo Random, Combined Barker, and Polyphase Codes
2-2 Golay Codes and Optimum Mismatched Filters
Equipment Description

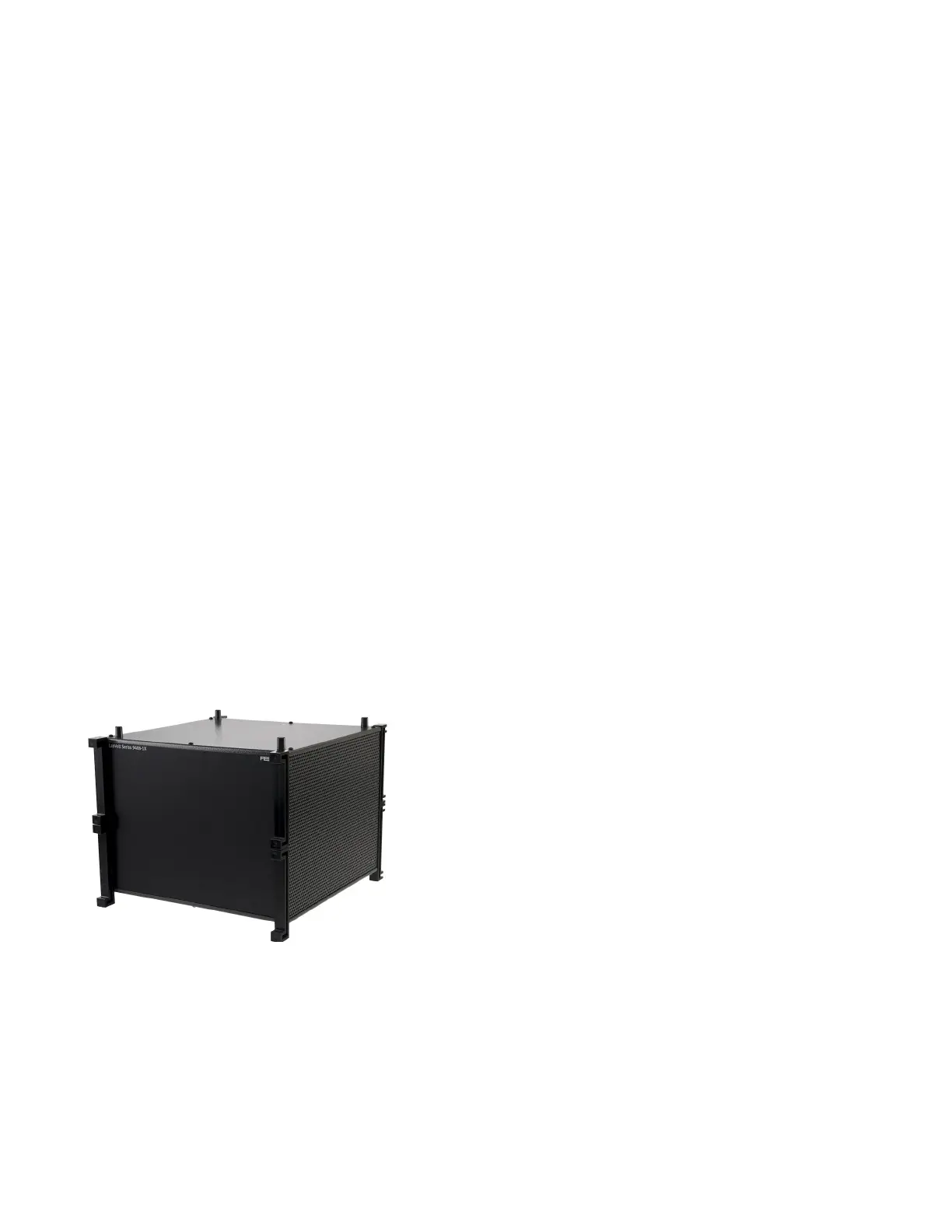

RTM Power Supply
8112514 (9408-2X)
The RTM Power Supply is the power source for the
Reconfigurable Training Module (RTM) used in the radar training
systems. It has a multi-pin connector output, located on the
back panel, that provide regulated dc voltages. Hiccup mode
protection protects the outputs of the RTM Power Supply against
short-circuits.
Description
Manual
number
Phase-Coded Pulse Compression (Workbook) ___________________________________________593926 (52919-00)
Phase-Coded Pulse Compression (Workbook (Instructor)) _________________________________593927 (52919-10)
