Radar Training System, LabVolt Series
© Festo Didactic 24
software. Electrical power is supplied to the RTM by the Power Supply, Model 9408, through a multipin cable
that connects to the back panel.
Specifications
Parameter Value
Interface Card Slots
Analog/Digital 2
Digital 1
Data Link
Data Link to Host Computer 10 Mb/s (Ethernet) or 100 Mb/s (Fast Ethernet), TCP/IP Protocol
Physical Characteristics
Dimensions (H x W x D) 215 x 430 x 280 mm (8.5 x 16.9 x 11.0 in)
Net Weight 9.8 kg (21.6 lb)

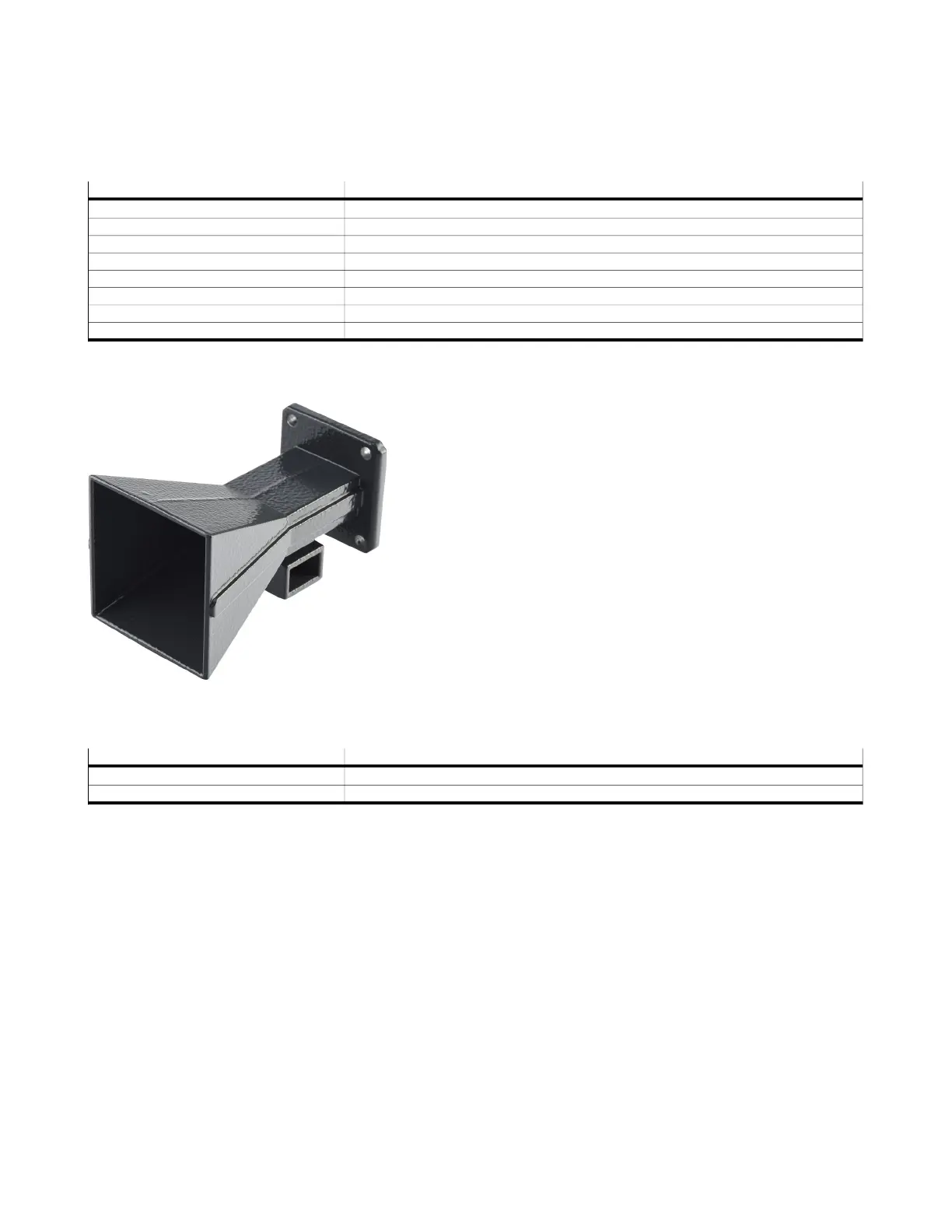

Horn Antenna
581847 (9535-00)
The Horn Antenna is used to perform experiments related to a
variety of topics, such as FM-CW radar, antenna gain, and
microwaves. When used in conjunction with the Radar Antenna,
the Horn Antenna allows separate transmission and reception of
RF signals. It is also used in certain EW demonstrations.
Specifications
Parameter Value
Gain
14.5 dB
Distance
Between the transmitting and receiving horn antennas: 40 cm (16 in).
