Radar Training System, LabVolt Series
35 © Festo Didactic

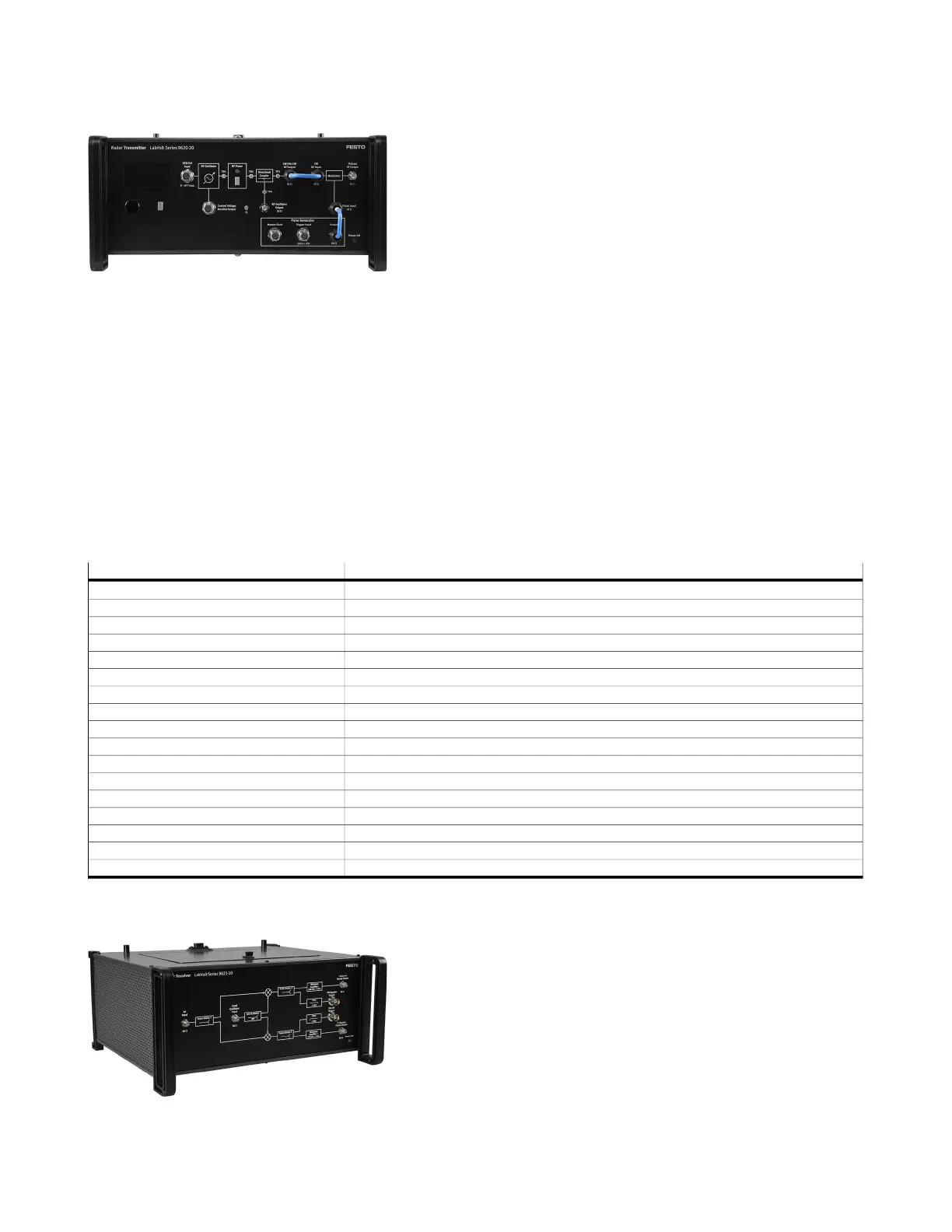

Radar Transmitter
595172 (9620-20)
The Radar Transmitter is an instructional module designed to
provide training in system- and module-level troubleshooting. It
has switches that the instructor can use to insert faults. These
switches, as well as the circuit boards and test points, are
accessed through the hinged door on top of the module.
The Radar Transmitter generates an RF signal that can be either
frequency modulated or amplitude modulated. It includes an RF
oscillator, a pulse generator, and an amplitude modulator.
The RF oscillator has a frequency modulator with variable modulation frequency and deviation. It also has a
variable output frequency, which is indicated on 2½ digit display. An RF power switch allows the RF output to be
disabled.
The pulse generator produces the pulses required by the system. It provides discrete and continuous variation
of the pulse width. The pulse generator output signal controls the amplitude modulator to produce the pulsed
(amplitude-modulated) RF signal.
Unregulated dc power is automatically supplied to the Radar Transmitter through self-aligning connectors when
it is installed on the Power Supply / Antenna Motor Driver.
Specifications
Parameter Value
RF Oscillator
Frequency Range 8 to 10 GHz
Output Power +10 dBm (typical)
Output Impedance 50 Ω
CW/FM-CW RF Output
Power +0.5 dBm (typical)
Impedance 50 Ω
Pulse Generator
Pulse Width Ranges 1, 2, 5, 1 to 5 ns
Trigger Input TTL
Output Level 300 mV
Output Impedance 50 Ω
Faults 10, switch-insertable
Test Points 10
Physical Characteristics
Dimensions (H x W x D) 162 x 330 x 300 mm (6.4 x 13 x 11.8 in)
Net Weight 5 kg (11 lb)
Radar Receiver
595990 (9621-20)
The Radar Receiver is an instructional module designed to
provide training in system- and module-level troubleshooting. It
has switches that the instructor can use to insert faults. These
switches, as well as the circuit boards and test points, are
accessed through the hinged door on top of the module.
The Radar Receiver down-converts the received RF signal to
baseband directly (homodyne receiver) for the three types of
radar that can be implemented (CW, FM-CW, and pulse radars).
