Festool CTL 26 E User Manual

13
CTL

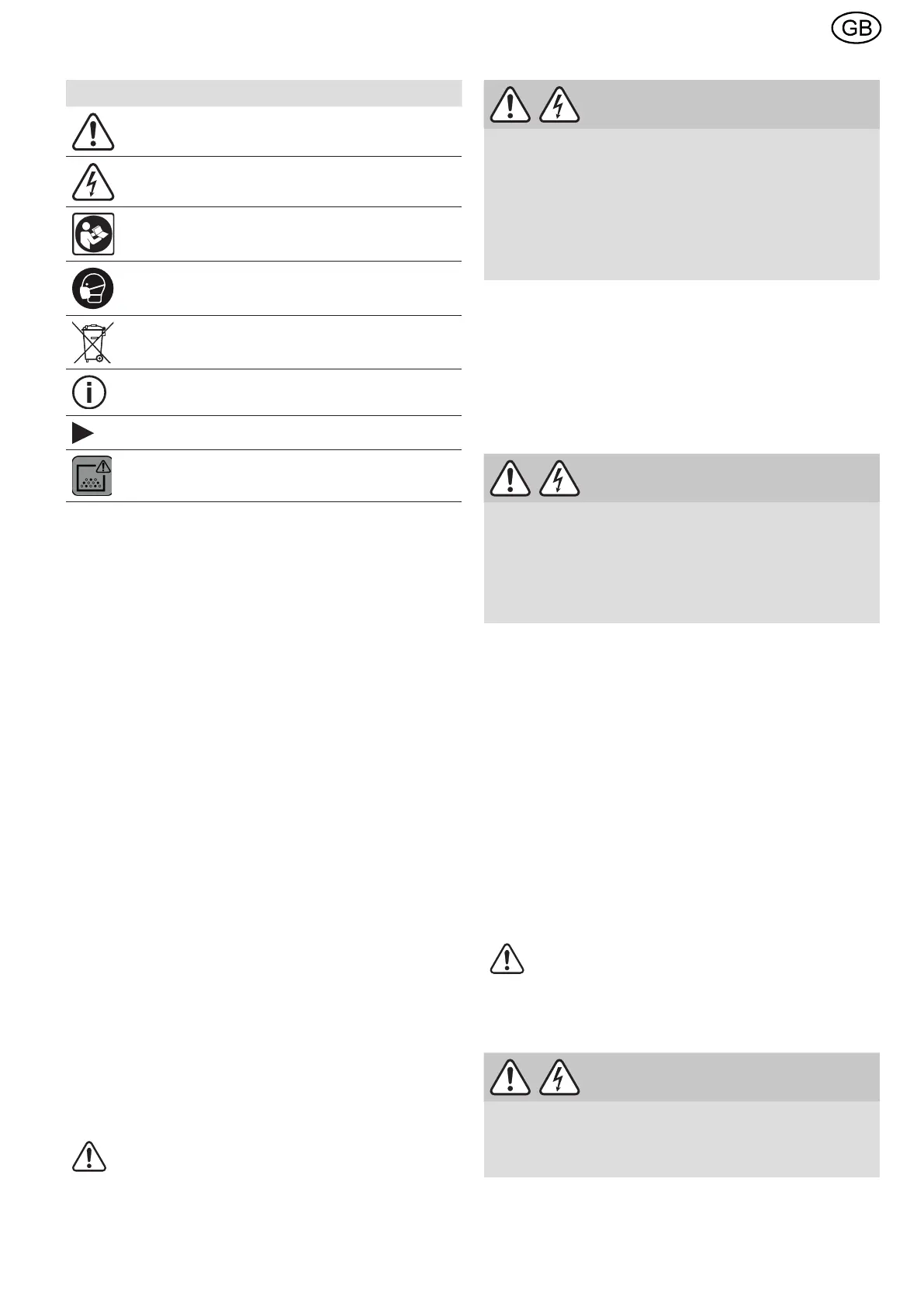

3 Symbols
Symbol Significance
Warning of general danger
Risk of electric shock
Read operating instructions and
safety notices!
Wear a dust mask.
Do not dispose of as domestic
waste.
Tip or advice
Handling instruction
Warning! The machine may contain
hazardous dust!
4 Machine features
[1-1] Intake opening
[1-2] Module slot
(compressed air module for
CTL36/48ELE, CTL 36/48 E LE AC,
socket module for CTL 26 E SD)
[1-3] Appliance socket
[1-4] Hose store
[1-5] Handle
[1-6] SysDoc
[1-7] Automatic cleaning (only versions with
AutoClean)
[1-8] Switch
[1-9] Suction power adjuster
[1-10] Locking clip
[1-11] Dust container
[1-13] Brake
The specified illustrations appear at the beginning
of the Operating Instructions.
5 Intended use
Mobile dust extractor suitable for
– Extracting dust up to 1 mg/m³ according to dust
class ‘L’,
– Extracting water,
– Increased loads during commercial use,
according to IEC/EN 60335-2-69.
The user is liable for improper or non-
intended use.
6 Commissioning
WARNING
Unauthorised voltage or frequency!
Risk of accident
XThe mains voltage and the frequency of the
power source must correspond with the
specifications on the machine’s name plate.
XObserve country-specific regulations.
6.1 Initial operation
XInsert the filter/disposal bag [2].
XAttach the cord holder [3].
XConnect the suction hose [4].
6.2 Connecting the mobile dust extractor
WARNING
Risk of injury from tools starting up unex-
pectedly
XBefore setting the switch to “AUTO” or “MAN”
position, make sure that the connected tool is
switched off.
The switch [1-8] serves as an on/off switch.
Switch position “0”
Appliance socket [1-3] is disconnected from the
power, mobile dust extractor is switched off.
”MAN” switch position
Appliance socket [1-3] is connected to the power,
the mobile dust extractor starts.
”Auto” switch position
Appliance socket [1-3] is connected to the
power, the mobile dust extractor starts when the
connected tool is switched on.
XInsert the plug into an earthed socket.
Pull the plug from the socket when the
machine is not in use and prior to main-
tenance and cleaning work.
6.3 Connecting electric power tools
WARNING
Risk of injury
XObserve the maximum appliance socket
connected load (see chapter “Technical data”).
XConnect the electric power tool to the appliance
socket [1-3].

Festool CTL 26 E Specifications

General

Input power	2400 W
Airflow	65 l/s
Capacity	26 L
Hose length	3.5 m
Cable length	7.5 m
Hose diameter	27 mm
Filter surface	6318 cm²
Number of wheels	4 wheel(s)
Container capacity (dust)	24 L
Ventilating pressure (max)	240 mbar
Dust class	L
Product color	Black, Green, White

Weight and Dimensions

Depth	630 mm
Width	365 mm
Height	540 mm
Weight	13900 g
