The HL 850 E planer together with the available
Festool accessories is designed for processing wood,
soft plastics and similar materials.
Usage permitted only with planer heads designed
for maximum speed of 15000 min
-1
.
Electrical connection and operation
The supply voltage must comply with the voltage
given on the ratings plate.
For your safety the machine is equipped with an
interlocking safety (1.1). In order to run the planer
the safety must be activated first. Pressing the safety
activates On/Off switch (1.2).
Extension cable
If an extension cable is required, it must have a suf-
ficient cross-section so as to prevent an excessive
drop in voltage or overheating. An excessive drop in
voltage reduces the output and can lead to failure of
Use for intended purpose
the motor. The table shows the correct size to use,
depending on cord length and tool‘s ampere rating.
Use only U.L. and CSA listed extension cables. Never
use two extension cables together. Instead, use one
long one.
Total Extension Cord
Lenght (feed)
25 50 100 150
Cord size (AWG) 18 16 14 12
Note: The lower the A.W.G. number, the stronger
the cable.
The user shall be liable for dam-
ages and accidents due to incorrect use.

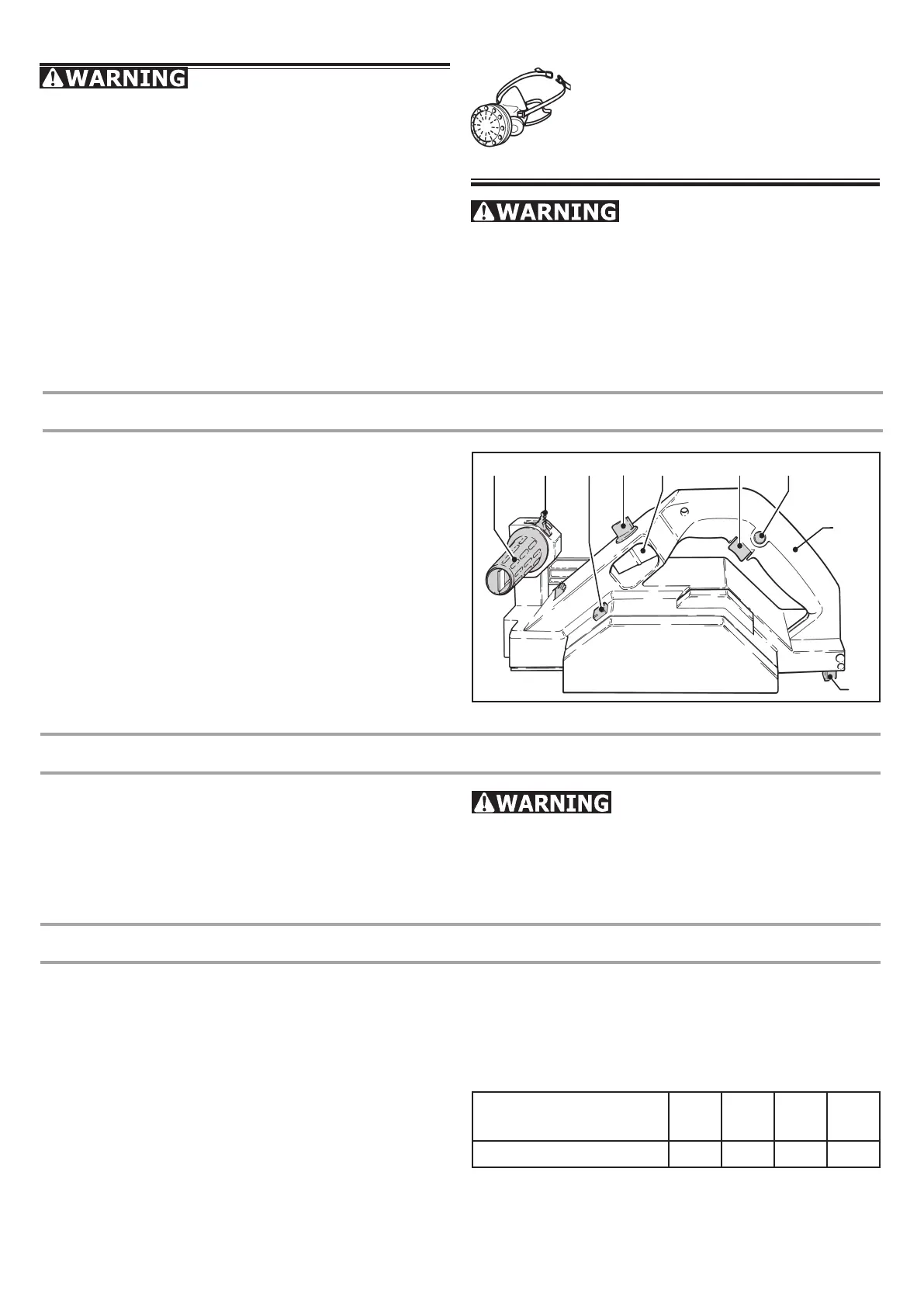

1.1 Interlocking safety
1.2 On/Off switch
1.3 Shavings ejector
1.4 Shift lever for shavings ejector
1.5 Spindle stop
1.6 Interlock for cutting depth adjustment
1.7 Handle/Cutting depth adjustment
1.8 Parking device
1.9 Handle
Functional description
1.8
1.2 1.4 1.6 1.1 1.3 1.7 1.5
1.9
Various dust created by power
sanding, sawing, grinding, drilling and other con-
struction activities contains chemicals known (to
the State of California) to cause cancer, birth de-
fects or other reproductive harm. Some examples
of these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other
masonry products,
• Arsenic and chromium from chemically-treated
lumber.
The risk from these exposures varies, depending on
how often you do this type of work.
To reduce your exposure to these chemi-
cals work in a well ventilated area and
use approved safety equipment, such as
dust masks that are specially designed
to filter out microscopic particles.
TO REDUCE THE RISK OF IN
JURY, USER MUST READ INSTRUCTION MANUAL.
