4. Electrical Installation
4.1 Introduction
• Do not exceed the switch contact ratings. The primary switching circuit is rated at 5 Amp
maximum and must be fused appropriately in line with the protected machine’s mains
supply and isolation device
• When connection is by a cord, the Earth wire connection must be longer than the Live and
Neutral wires, such that failure of the strain relief will cause the Earth wire to be the last
conductor interrupted
• To prevent water running down onto the vibration switch, add a ‘drip loop’ in any external
cabling
• For ambient temperatures below –10°C, use external wiring rated for the minimum ambient
temperature expected
• Tie-wrap wires to protect against vibration and use cable ties rated for the expected
ambient temperature.
x4
3mm hex
4.2 Electrical Installation - Details
• To avoid breaking the lid hinge, DO NOT push on the lid when fully open.

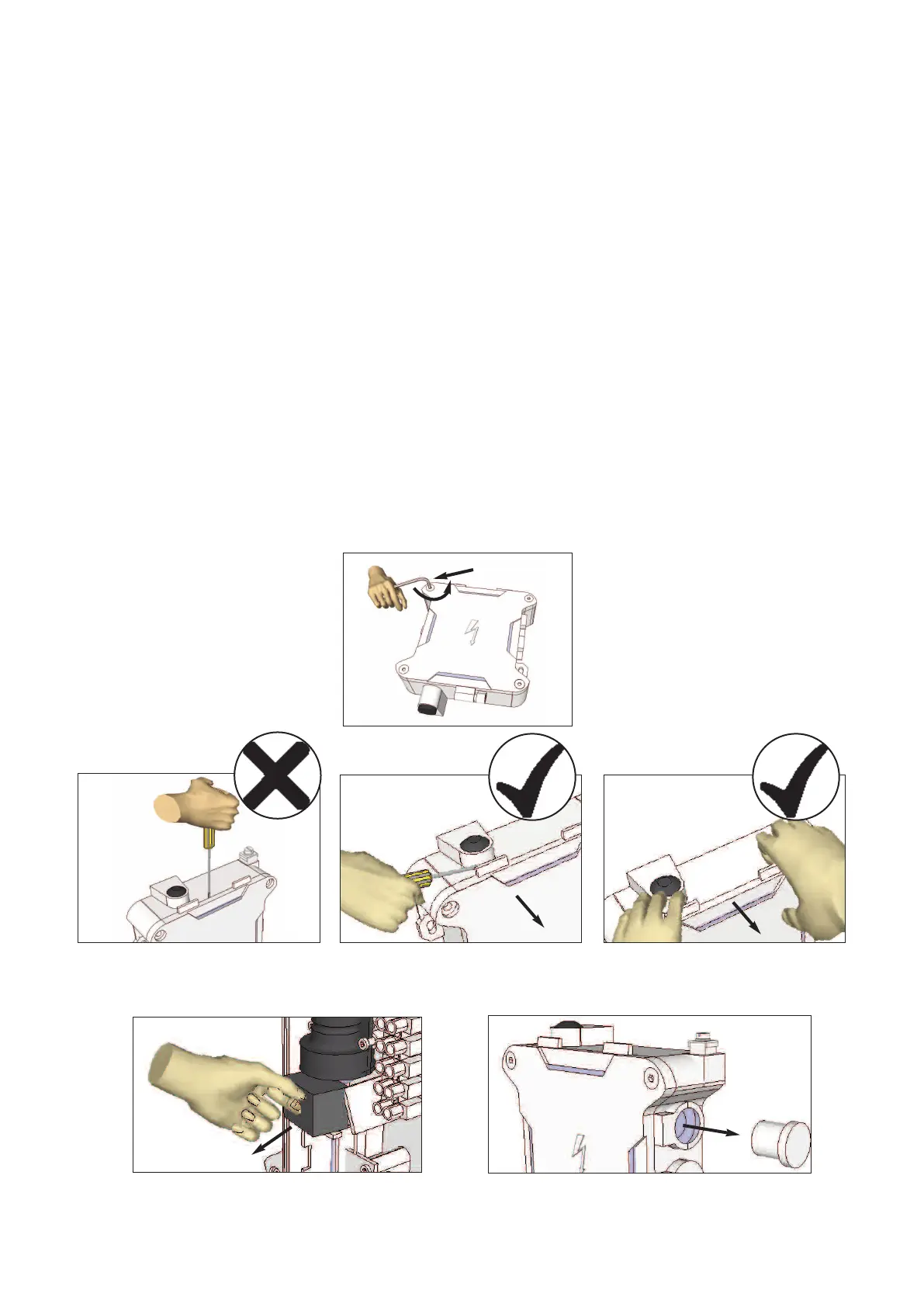

Figure 2: Before Installation
5
