FFE 3171 Ex - Page 7

7

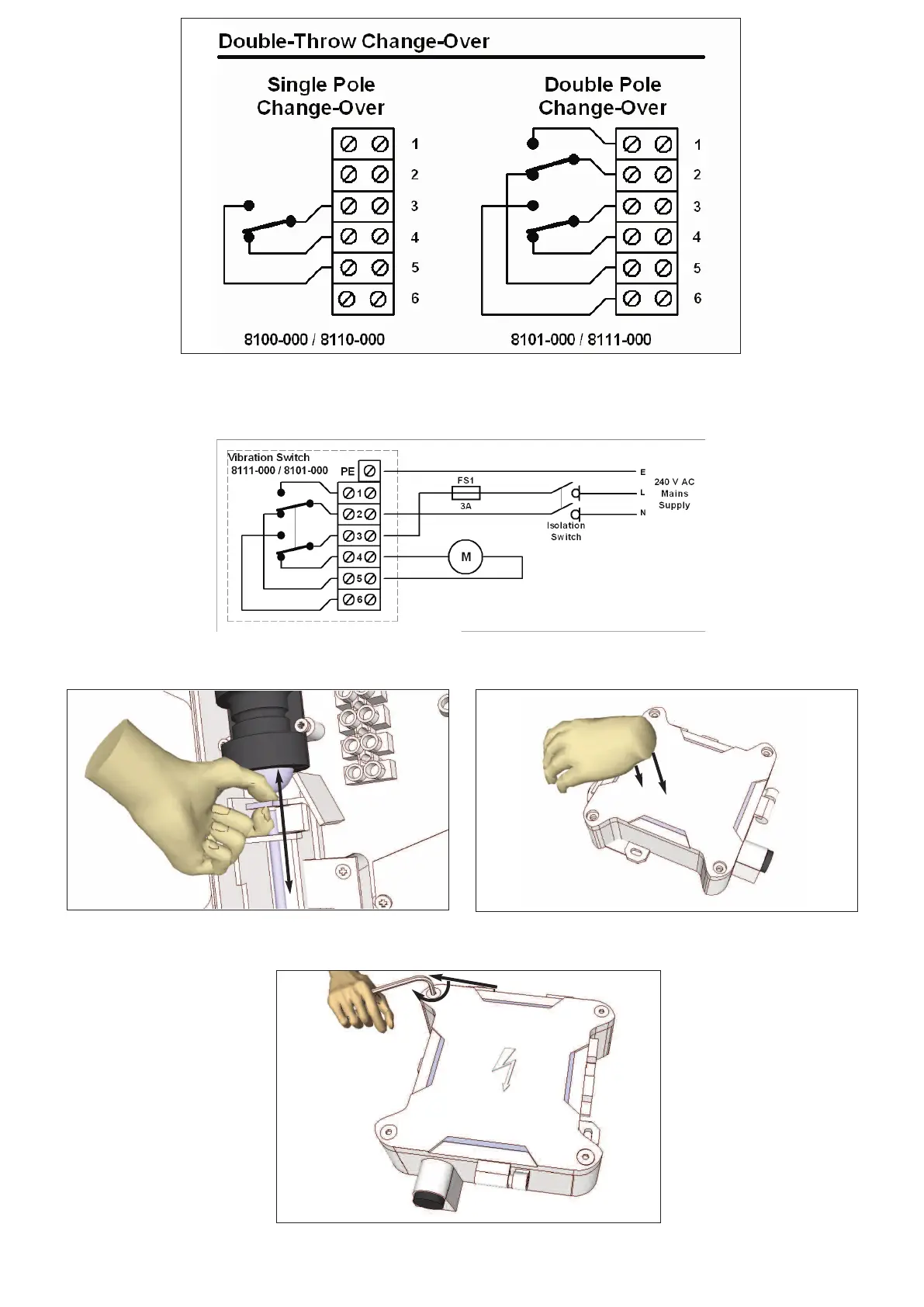

Figure 4a: Wiring Configuration
Switches are shown in their reset state.
x4
3mm hex
1Nm max.
Check lever moves freely up and down.
Figure 5
Figure 4b: Typical Installation - Circuit Diagram
