FFE 3171 Ex - Page 9

9
The SET LEVEL can be estimated by referring to the calibration curve in figure 6 and counting
the number of turns from the factory setting.
If the factory setting is lost, it can be approximated as 11.5 turns from flush.

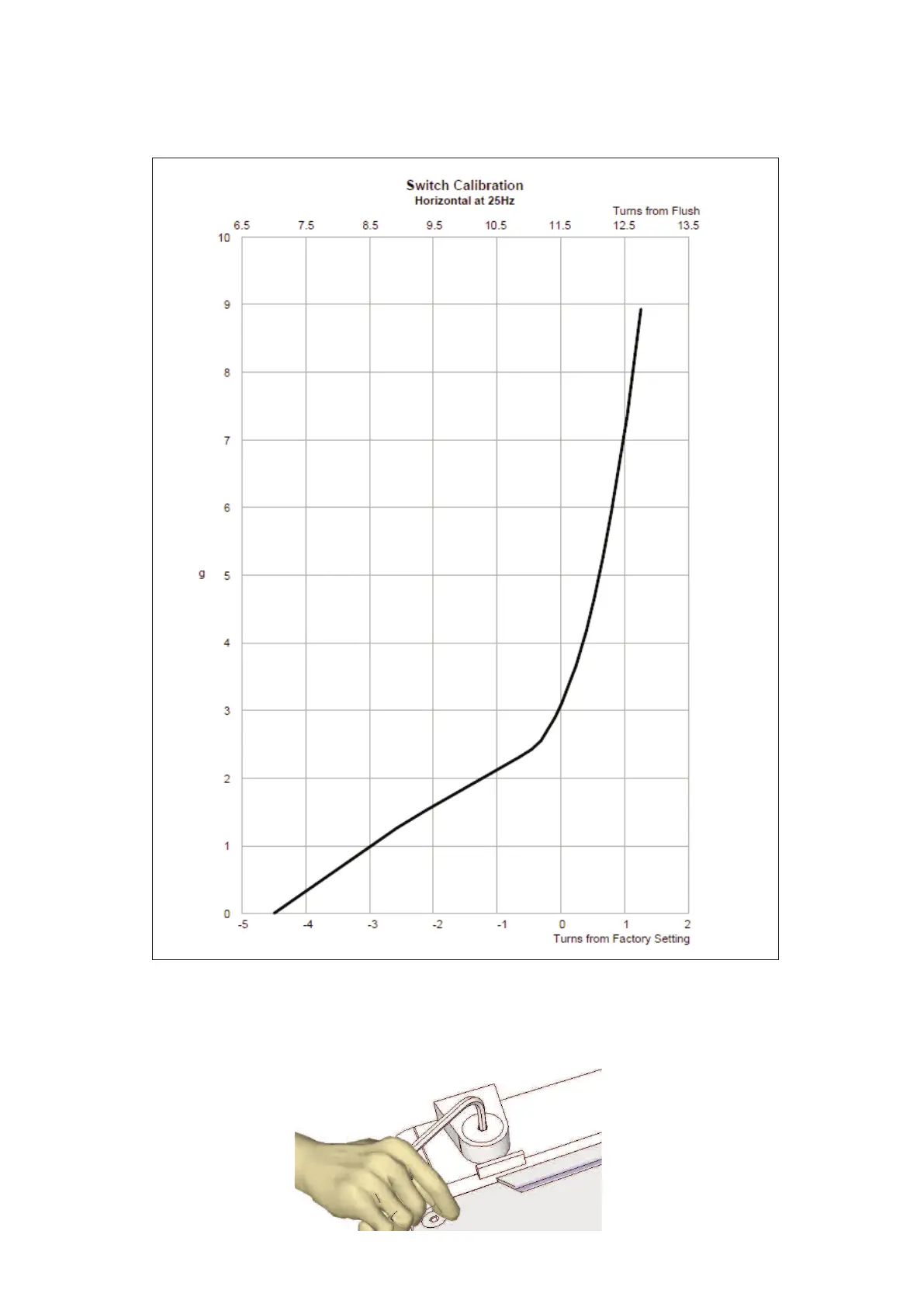

Figure 6: Vibration Switch Calibration Curve.
FLUSH
