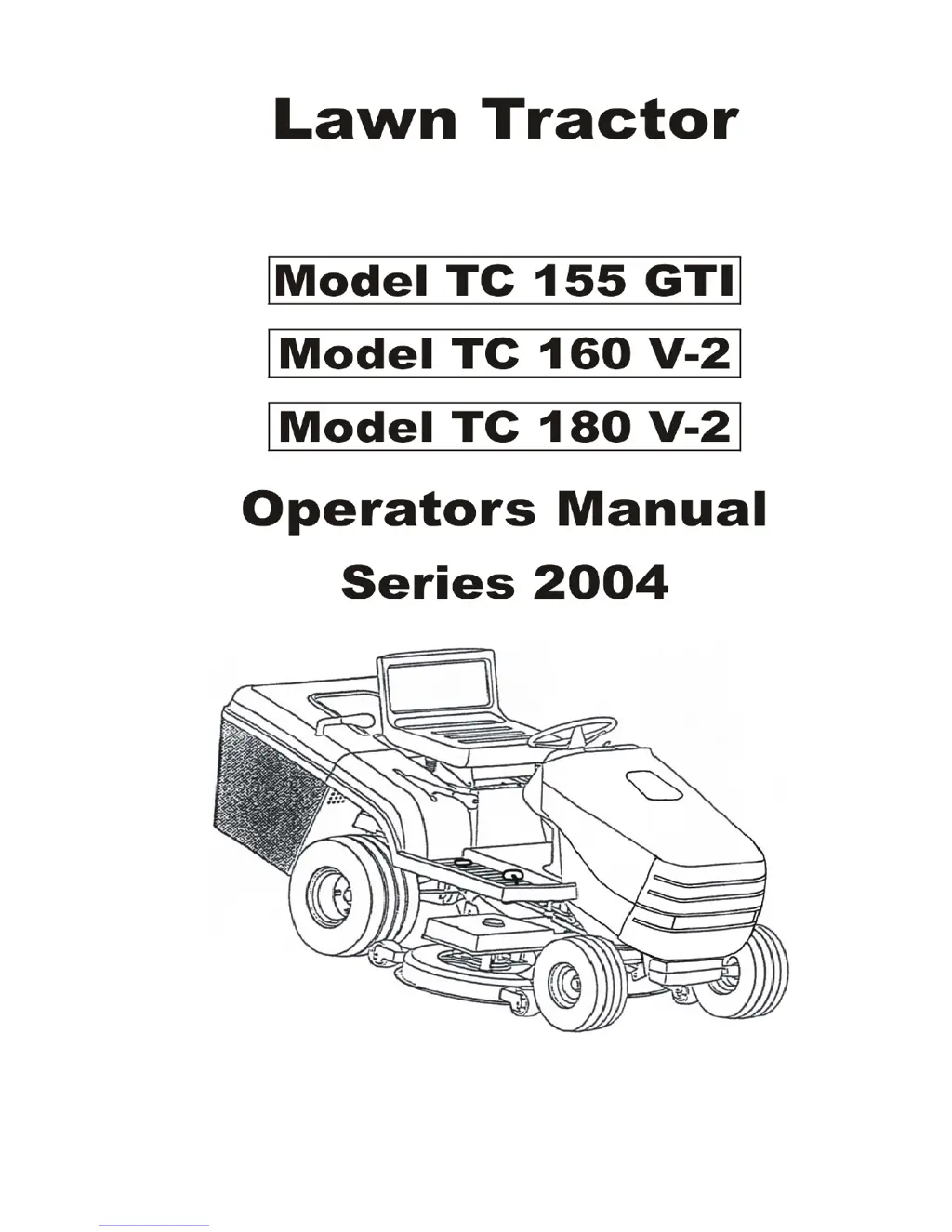

FGM TC 155 GTI - User Manual

Questions and Answers

W
William BradfordAug 20, 2025
Why is there extreme vibration when the clutch is engaged on my FGM Lawn Mower?
- A
  ashley68Aug 20, 2025
  To address extreme vibration when the clutch is engaged on your FGM Lawn Mower: * Inspect for split or damaged pulleys and replace them if necessary. * Examine the belt for irregularities or burned spots, replacing it if needed. * Ensure the belt tension is correct and adjust if necessary. * Check the clutching idler assembly for any wear or damage, replacing parts as necessary.
L
Luke StephensAug 23, 2025
Why won't the engine turn over or start on my FGM Lawn Mower?
- M
  Maria SimsAug 23, 2025
  If your FGM Lawn Mower's engine won't turn over or start, begin by verifying the starting procedure and ensuring all instructions are followed. Check the fuse and battery charge, activating and charging the battery if it's new. For new units, remove the spark plug to inspect the cylinder for oil accumulation from improper handling. Visually inspect the electrical system, securing all connections and lockout switches. Refer to the engine manufacturer's instructions for engine-specific checks. For starting issues, ensure the fuel tank has clean, fresh fuel and the fuel shut-off is open. Position the throttle to start or fast and use the choke. Check the fuel filter for obstructions and verify choke usage.
D
Dr. Henry BrownAug 26, 2025
Why does my FGM Lawn Mower leave an unmowed strip between blades?
- J
  James ValdezAug 26, 2025
  If your FGM Lawn Mower leaves an unmowed strip between the blades: 1. Consider that mowing heavy or excessively moist grass could cause this issue. 2. Adjust the forward speed to match mowing conditions using gear selection, and ensure the engine runs at full throttle. 3. Make sure the blades are sharp and in good condition, replacing them if necessary. 4. Check the blade belt tension and adjust if needed. 5. Inspect the quill assemblies for damage or wear, replacing if necessary. 6. Check the mower deck housing for damage and repair it if necessary.
T
Tara BlevinsAug 27, 2025
What to do if the blades will not engage on my FGM Lawn Mower?
- K
  Karla WilliamsAug 28, 2025
  To resolve the issue of blades not engaging on your FGM Lawn Mower: * Inspect the belt. Replace it if worn or broken, or adjust it if it's too loose. * Examine the engagement spring on the deck engagement idler and replace it if broken or damaged. * Check for and remove any foreign objects interfering with the engagement idler travel.
H
Holly BaileyAug 29, 2025
Why does the unit drive belt slip on my FGM Lawn Mower?
- T
  Tommy WigginsAug 29, 2025
  If your FGM Lawn Mower's unit drive belt slips: * Check the unit drive belt adjustment and adjust if necessary. * Inspect for a damaged or broken clutching idler spring and replace it if needed. * Examine the belt for wear or damage and replace it if necessary. * Check for and remove any foreign objects obstructing the clutching idler mechanism. * Check for a split engine or transmission pulley and replace if necessary.
L
Lance RobertsAug 31, 2025
Why does the blade drive belt wear excessively on my FGM Lawn Mower?
- J
  Jeanne NavarroAug 31, 2025
  To address excessive wear of the blade drive belt on your FGM Lawn Mower: * Check all belt guides, ensuring a clearance of 1.5 mm from the belt when the blade engage level is engaged. * Look for and remove any foreign objects interfering with belt travel. * Inspect the pulleys for damage and replace if necessary. * Ensure the blade brake is clearing the belt when the mower clutch lever is engaged, adjusting or replacing if needed. * Verify the mower deck leveling adjustment is correct and adjust when necessary. * Check the blade tension per the manual and adjust if necessary.
J
Joe GregorySep 2, 2025
How to fix a FGM Lawn Mower that cuts ragged or uneven?
- H
  holly15Sep 3, 2025
  If your FGM Lawn Mower cuts ragged or unevenly: 1. Remove any accumulated grass clippings from the underside of the mower deck housing. 2. Ensure blades are sharp and in good condition, not bent or incorrectly mounted. 3. Check blade mounting screws to make sure they are tight. 4. Check the mower deck leveling adjustment per the manual and adjust if necessary. 5. Check blade belt tension per the manual and adjust if necessary. 6. Inspect quill assemblies for damage or wear, replacing if necessary. 7. Check for possible damage to the mower deck housing and repair if necessary.
S
sreedSep 5, 2025
Why does my FGM Lawn Mower scalp the lawn?
- B
  brian84Sep 5, 2025
  To address lawn scalping with your FGM Lawn Mower: 1. Check the mower height adjustment setting and readjust if needed, noting that scalping is more likely on rough or uneven lawns. 2. Inspect the mower deck housing for damage and repair if necessary. 3. Check for bent blades or quill assemblies, replacing if necessary. 4. Verify the mower deck leveling adjustment and adjust if necessary.
G
Gabriella GreenSep 6, 2025
What to do if my FGM Lawn Mower will not discharge clippings?
- S
  susanevansSep 6, 2025
  To address the issue of your FGM Lawn Mower not discharging clippings: 1. Begin by removing any accumulation of grass clippings from the underside of the mower deck housing. 2. Be aware that wet conditions can cause the discharge tunnel and underside of the mower deck to become plugged with clippings, so avoid mowing wet grass. 3. Adjust the forward speed to match mowing conditions using gear selection, and ensure the engine is run at full throttle. 4. When mowing long grass, make the first cutting in a high position, then recut at the normal cutting height. 5. Check the drive belt tension per the manual and adjust if necessary. 6. If blades have been replaced, ensure they have been properly mounted.
A
Austin GarciaSep 8, 2025
Why does the unit drive belt squeal when the brake is applied on my FGM Lawn Mower?
- N
  Nicole CruzSep 8, 2025
  If the unit drive belt squeals when the brake is applied on your FGM Lawn Mower: * Check the lawn tractor drive belt adjustment and lawn tractor brake adjustment per the manual, adjusting if necessary. * Inspect for and remove any foreign objects obstructing the clutching idler mechanism.

Summary

INTERNATIONAL SYMBOLS

SAFETY RULES

GENERAL OPERATION SAFETY

Guidelines for safe operation of the lawn tractor in general.

SLOPE OPERATION SAFETY

Precautions and techniques for safely operating the tractor on slopes.

CHILDREN SAFETY

Safety measures to protect children during tractor operation and maintenance.

SERVICE SAFETY

Safety precautions to follow during maintenance and servicing of the tractor.

ASSEMBLY

UNPACKING AND IDENTIFICATION

Instructions for unpacking the tractor and identifying its serial number.

STEERING WHEEL ASSEMBLY

Step-by-step guide to installing the steering wheel on the tractor.

SEAT ASSEMBLY

Instructions for assembling and installing the tractor seat.

TRAILER HITCH AND GRASS COLLECTOR ASSEMBLY

Procedures for assembling the optional trailer hitch and grass collector.

GRASS COLLECTOR PLACEMENT AND PREPARATION

Guidance on positioning the grass collector and preparing for first operation.

BATTERY PREPARATION AND CHARGING

Steps for preparing, filling, and charging the tractor's battery.

FUELING AND TYRE MAINTENANCE

Instructions for safe fuel filling and checking tyre pressure.

OPERATION

TRACTOR CONTROLS OVERVIEW

Identification and description of the tractor's various controls and their functions.

SEAT ADJUSTMENT AND ENGINE STARTING PREPARATION

Procedures for adjusting the seat and preparing to start the engine.

ENGINE STARTING PROCEDURES

Detailed steps for safely starting the tractor engine, including throttle and choke use.

REVERSE GEAR AND DRIVING OPERATION

Instructions on using reverse gear, hydrostatic transmission, and general tractor operation.

LAWN CUTTING OPERATIONS

Guidelines and precautions for engaging and operating the lawn mower.

BLADE INSPECTION AND CUTTING HEIGHT ADJUSTMENT

Procedures for checking blades and adjusting the mower deck cutting height.

RIDING AND MOWING GUIDELINES

Best practices for riding and mowing, including speed ranges and clutch engagement.

MOWER OPERATION AND WARNINGS

Tips for mowing, slope operation, and warnings related to operation.

TUNNEL CLEANING AND STORAGE PREPARATION

Instructions for cleaning the mower tunnel and preparing the tractor for storage.

MAINTENANCE

CLEANING AND WASHING PROCEDURES

Guidelines for cleaning and washing the tractor, including safety warnings.

ENGINE AND CRANKCASE OIL MAINTENANCE

Procedures for engine operation and changing the crankcase oil.

MAINTENANCE CHECK LIST AND SERVICE RECORD

A checklist for regular maintenance tasks and a section for service records.

BLOCKING THE TRACTOR AND ENGINE LUBRICATION

Instructions for safely blocking the tractor and information on engine lubrication.

LUBRICATION SCHEDULE AND LIST

Detailed lubrication points, schedule, and types of lubricants required.

BATTERY MAINTENANCE

Safety precautions and procedures for maintaining the tractor's battery.

ADJUSTMENTS

SPARK PLUG AND AIR FILTER MAINTENANCE

Procedures for maintaining the spark plug and air filter.

HEADLIGHT BULB REPLACEMENT

Guide for replacing the tractor's headlight bulbs.

FUSE EXCHANGE AND WHEEL EXCHANGE

Instructions for replacing fuses and exchanging tractor wheels.

TRACTOR BRAKE ADJUSTMENT

Procedures for checking and adjusting the tractor's braking system.

BLADE REPLACEMENT AND SHEAR PINS

Steps for replacing mower blades and shear pins, including safety notes.

BLADE SHARPENING AND DRIVE BELT ADJUSTMENT

Guidelines for sharpening blades and adjusting drive belts for optimal operation.

CUTTING PAN AND COG BELT TENSION ADJUSTMENT

Procedures for removing the cutting pan and adjusting cog belt tension.

TORQUE SPECIFICATIONS AND HEIGHT ADJUSTMENT

Specifications for torque settings and adjusting the cutting height cable rod.

WIRING DIAGRAMS

TRACTOR WIRING DIAGRAM AND CONNECTIONS

Schematic of the tractor's wiring system and PTO switch connections.

TROUBLESHOOTING GUIDE

MOWER OPERATION PROBLEMS AND SOLUTIONS

Common issues with mower cutting, discharge, and belt problems with solutions.

ENGINE AND DRIVE SYSTEM PROBLEMS

Troubleshooting for engine start issues, drive belt slippage, and steering problems.

STORAGE PROCEDURES

TECHNICAL SPECIFICATIONS

FGM TC 155 GTI Specifications

General

Brand	FGM
Model	TC 155 GTI
Category	Lawn Mower
Language	English
