FIAT 124 Spider
Engine Maintenance + Modification
50
5.11 Fuel Injection System Electrical Diagrams
These diagrams are part of a complete set for the 1980 – 1982 Spider available at
www.artigue.com/fiat
.

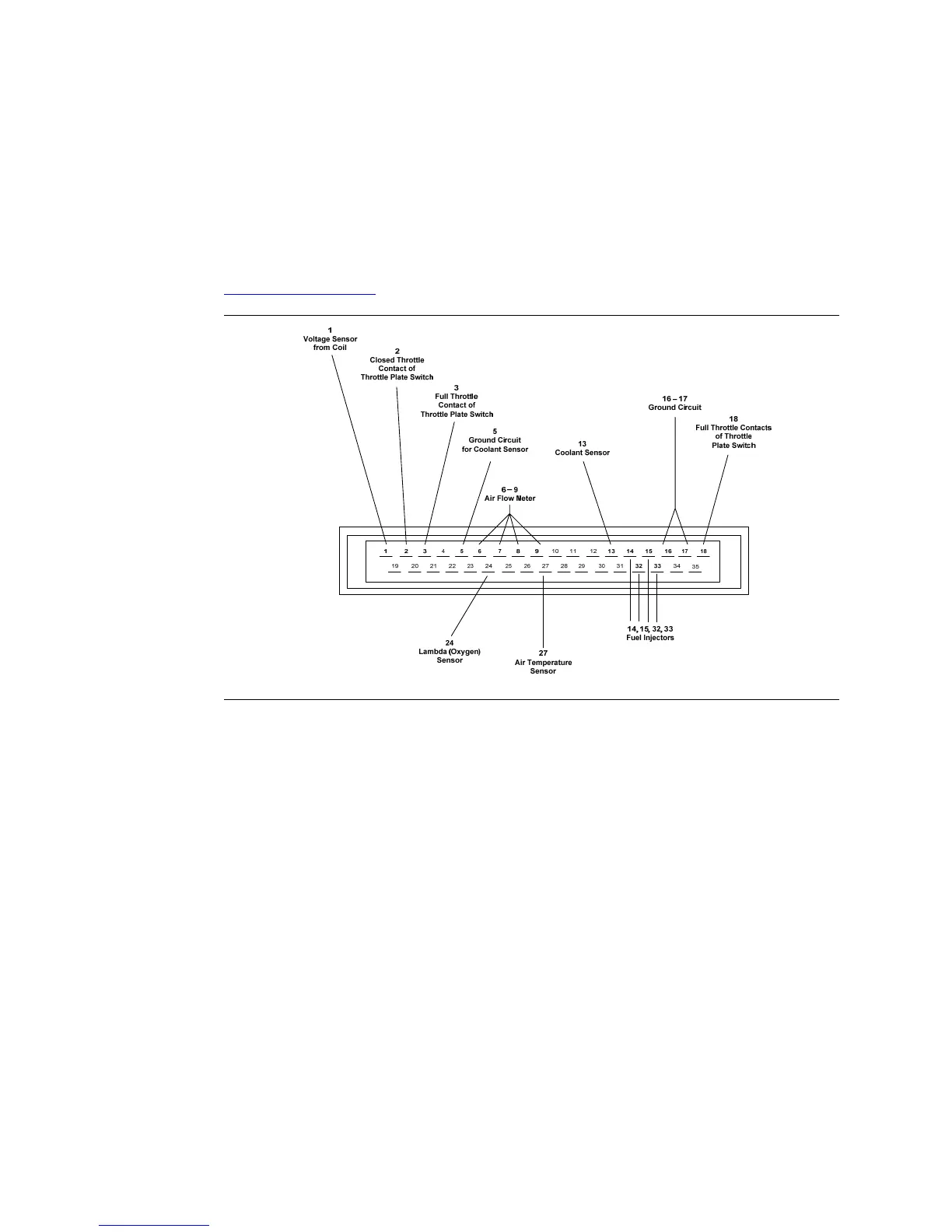

Figure 38: Primary Connections on the Electronic Control Unit
If you need a high quality print, download the diagrams from the website noted above
and print from that file to virtually any size. Most copy and print shops have large scale
plotters that can print on engineering size paper, such as 24 x 36 inches.
