MAIN BEAM HEADLIGHTS/DAYTIME
RUNNING LIGHTS
(for versions/markets, where provided)
To change the bulb, proceed as follows:
❒ remove protective cover C fig. 189, rotating it
anticlockwise;
❒ disconnect the electrical connector A fig. 192;
❒ rotate bulb holder B fig. 192 anticlockwise and
remove the unit;
❒ remove the bulb C and replace it;
❒ refit the bulb holder B and rotate it clockwise to
lock;
❒ reconnect the electrical connector A;
❒ refit the protective cover by turning it clockwise
making sure to lock it correctly.
DIPPED BEAM HEADLIGHTS
With incandescent bulbs
To replace the bulb, proceed as follows:
❒ remove protective cover B fig. 189, rotating it
anticlockwise;
❒ disconnect the electrical connector A fig. 193;
❒ release bulb holder catch B;
❒ remove the bulb C and replace it;
❒ fit the new bulb, ensuring that the outline of the
metal part coincides with the grooves on the
curve of the headlight, re-attach catch B and
reconnect connector A;
❒ refit the protective cover by turning it clockwise
making sure to lock it correctly.

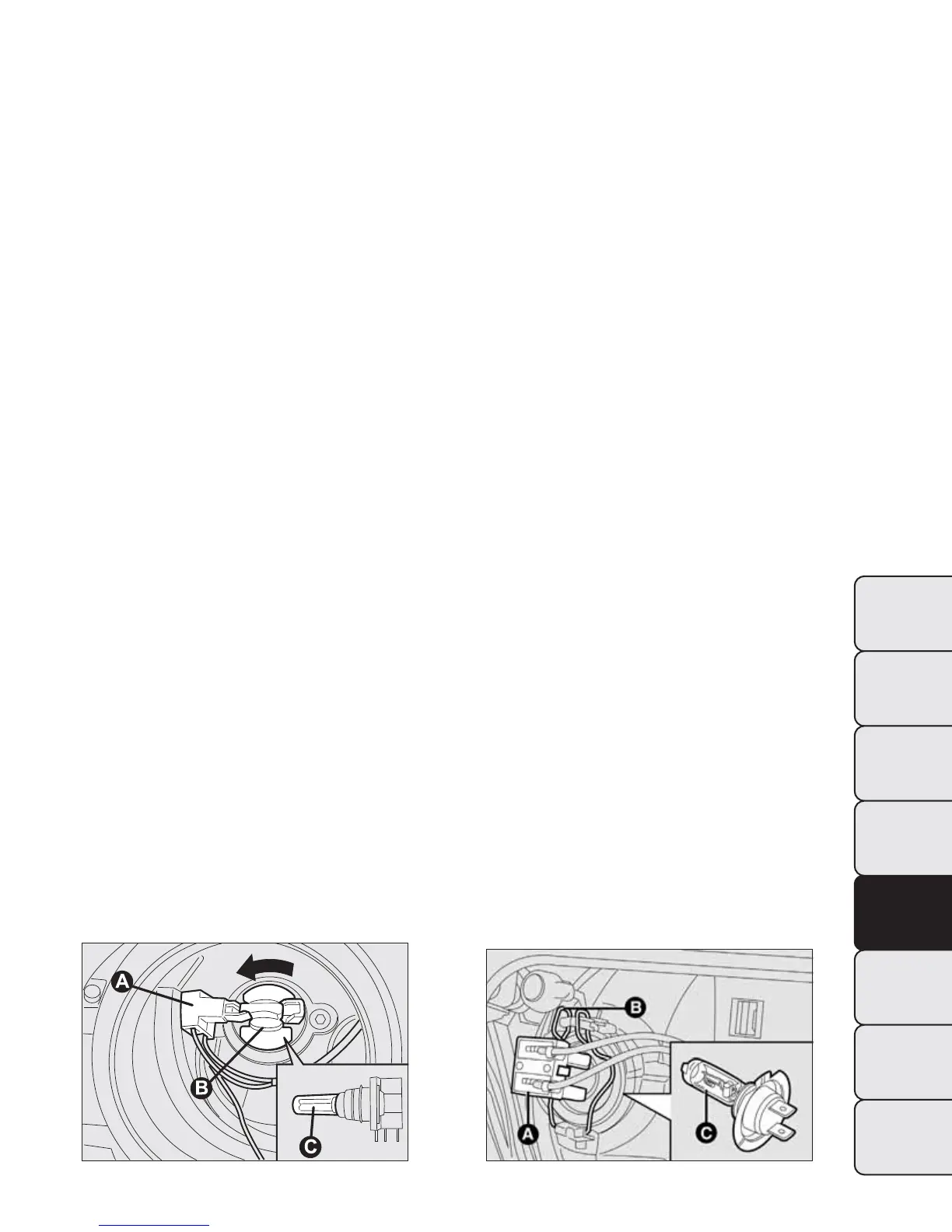

fig. 192
F0N0517
fig. 193
F0N0084
201
