3. Remove the two 5.5 mm screws (1 and 2) that secure
the particulate air filter cover to the HVAC housing.
4. Remove the A/C air filter by pulling it straight
out of the housing. Take note of the air filter position
indicators.

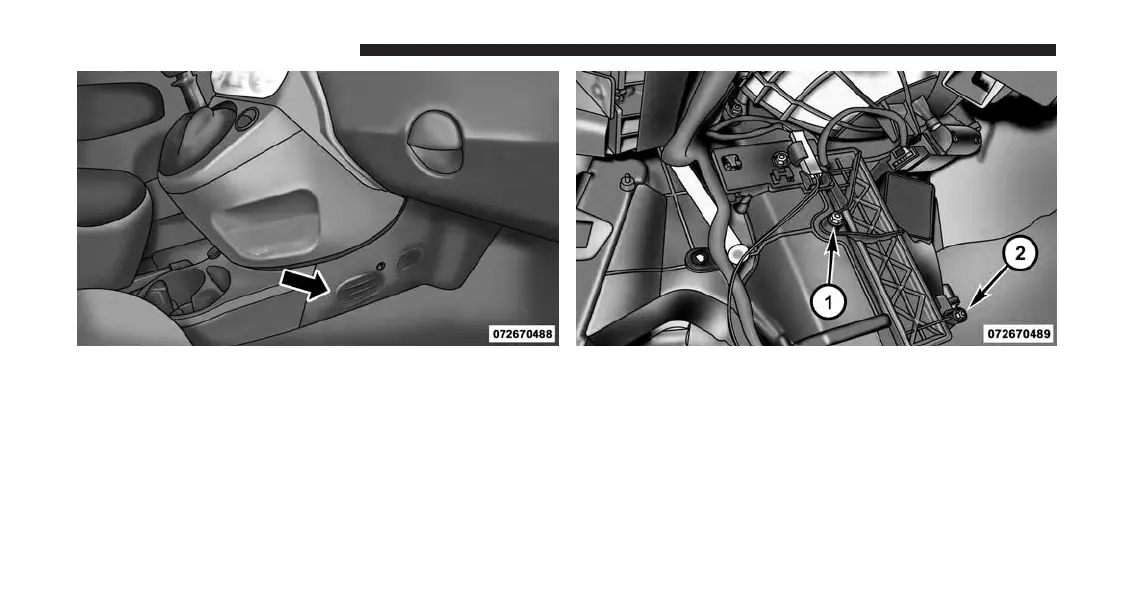

Console Closeout Panel Air Filter Cover Screw Locations
364 MAINTAINING YOUR VEHICLE
