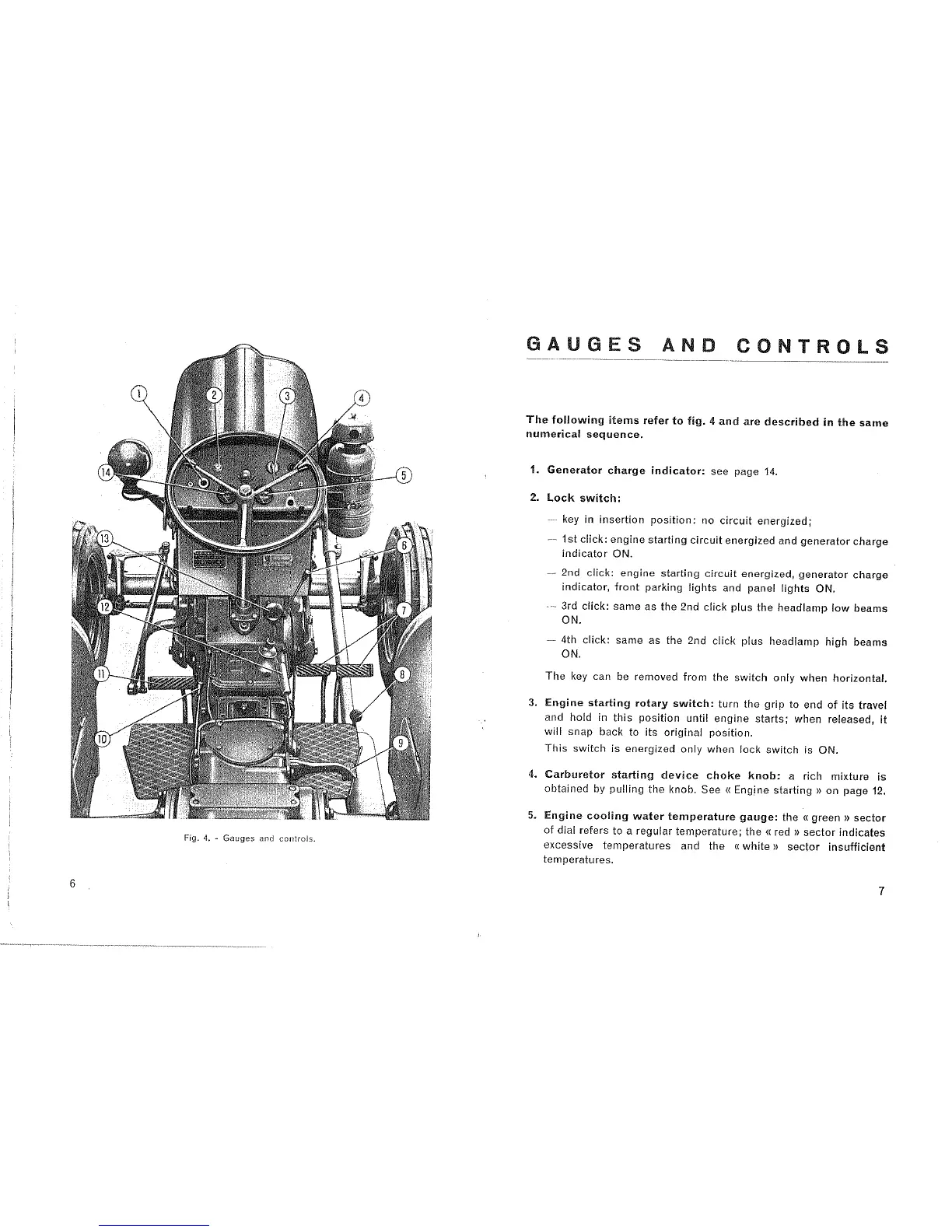

Fig. 4. ~ Gauges and controls.
5 .
E5}! G E S £‘L'_‘!..-P ° E‘ T 3° '- 3:
The following items refer to fig. 4 and are described in the same
numerical sequence.
1. Generator charge indicator: see page 14.
2. Lock switch:
key in insertion position: no circuit energized;
—- 1st click: engine starting circuit energized and generator charge
indicator ON.
--- 2nd click: engine starting circuit energized, generator charge
indicator, front parking lights and panei lights ON.
»-- 3rd click: same as the 2nd click pius the headlamp low beams
ON.
-H 4th ciick: same as the 2nd click plus headiamp high beams
ON.
The key can be removed from the switch only when horizontal.
3. Engine starting rotary switch: turn the grip to end of its travel
and hold in this position until engine starts; when reieased, it
wiil snap back to its original position.
This switch is energized only when iock switch is ON.
4. Carburetor starting device choke knob: a rich mixture is
obtained by pulling the knob. See << Engine starting» on page 12.
5. Engine cooling water temperature gauge: the << green >> sector
of dial refers to a reguiar temperature; the << red » sector indicates
excessive temperatures and the << white » sector insufficient
temperatures.
