The A/C air filter is located in the fresh air inlet on the
lower right of center console. Perform the following
procedure to replace the filter:

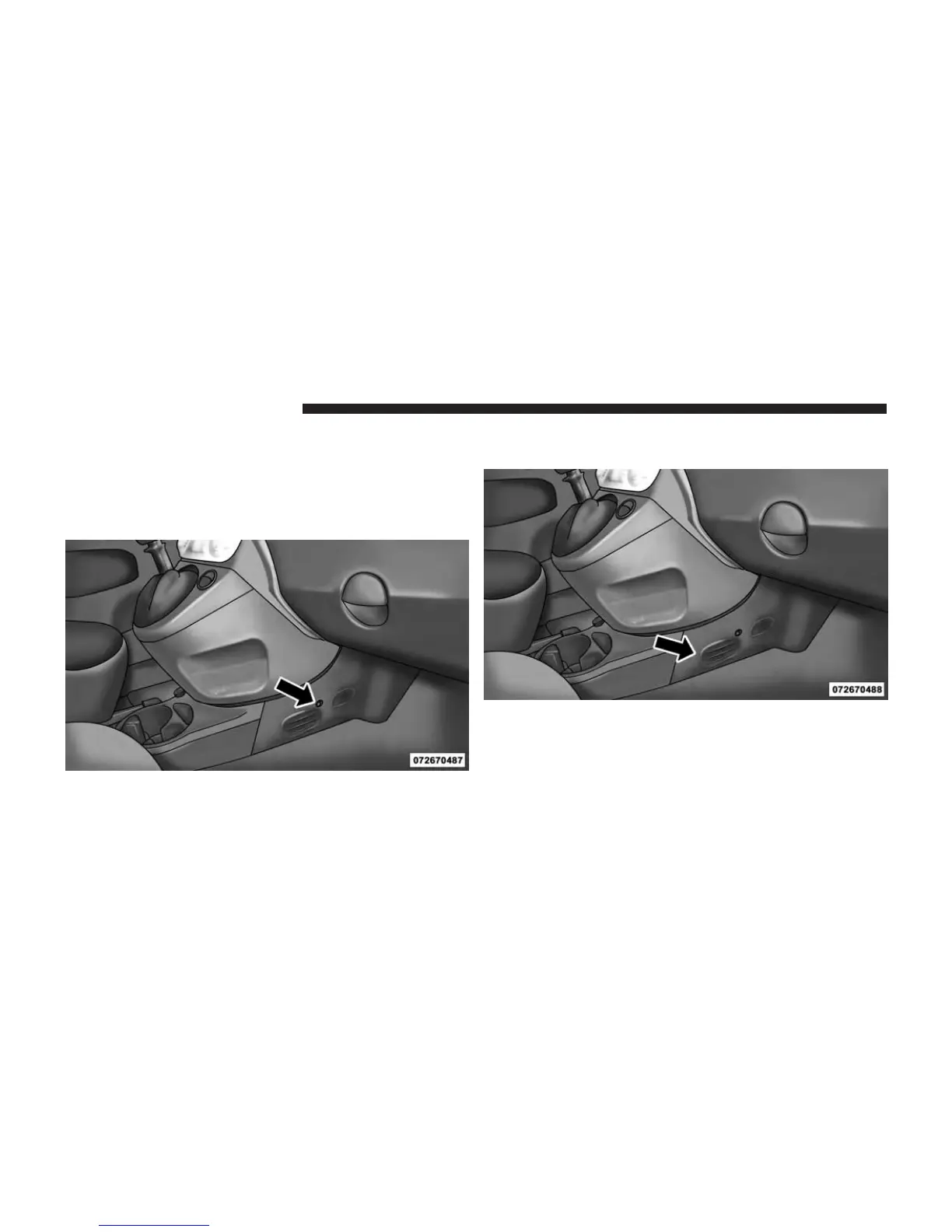

1. Remove the T20 Torx screw that secures the passenger
side console closeout cover.
2. Pull the console closeout cover rearward to disengage
the front retaining tab and remove the cover.
T20 Torx screw
Console Closeout panel
340 MAINTAINING YOUR VEHICLE
