Cavity Maxi Fuse Mini Fuse Description
F23 – 20 Amp Yellow Anti-Lock Brake Valves
F30 – 5 Amp Tan After Run Pump
F81 70 Amp Tan – PTC (Secondary)
F82 40 Amp Orange – Transmission
F83 40 Amp Orange – PTC (Primary)
F84 – 7.5 Amp Brown Transmission
F85 – 15 Amp Blue Front Power Outlet 12V
F88 – 7.5 Amp Brown Heated Mirrors

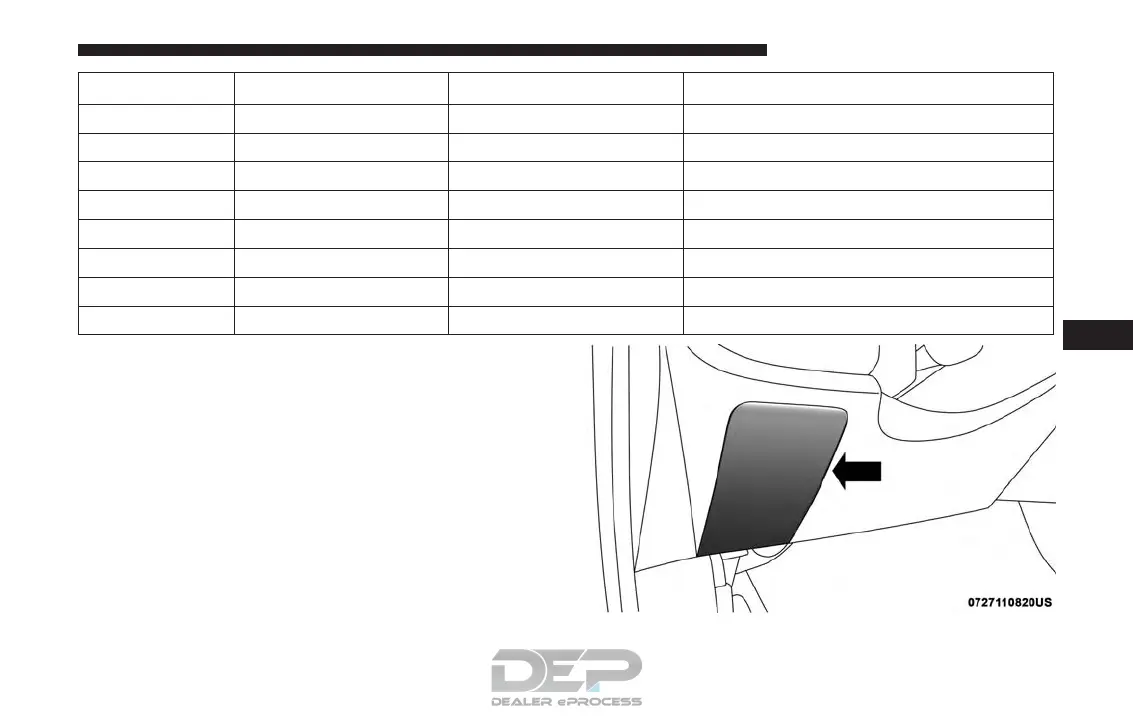

Interior Fuses
The interior fuse panel is part of the Body Control
Module (BCM) and is located on the driver’s side under
the instrument panel.
Interior Fuse Panel
7
MAINTAINING YOUR VEHICLE 329
