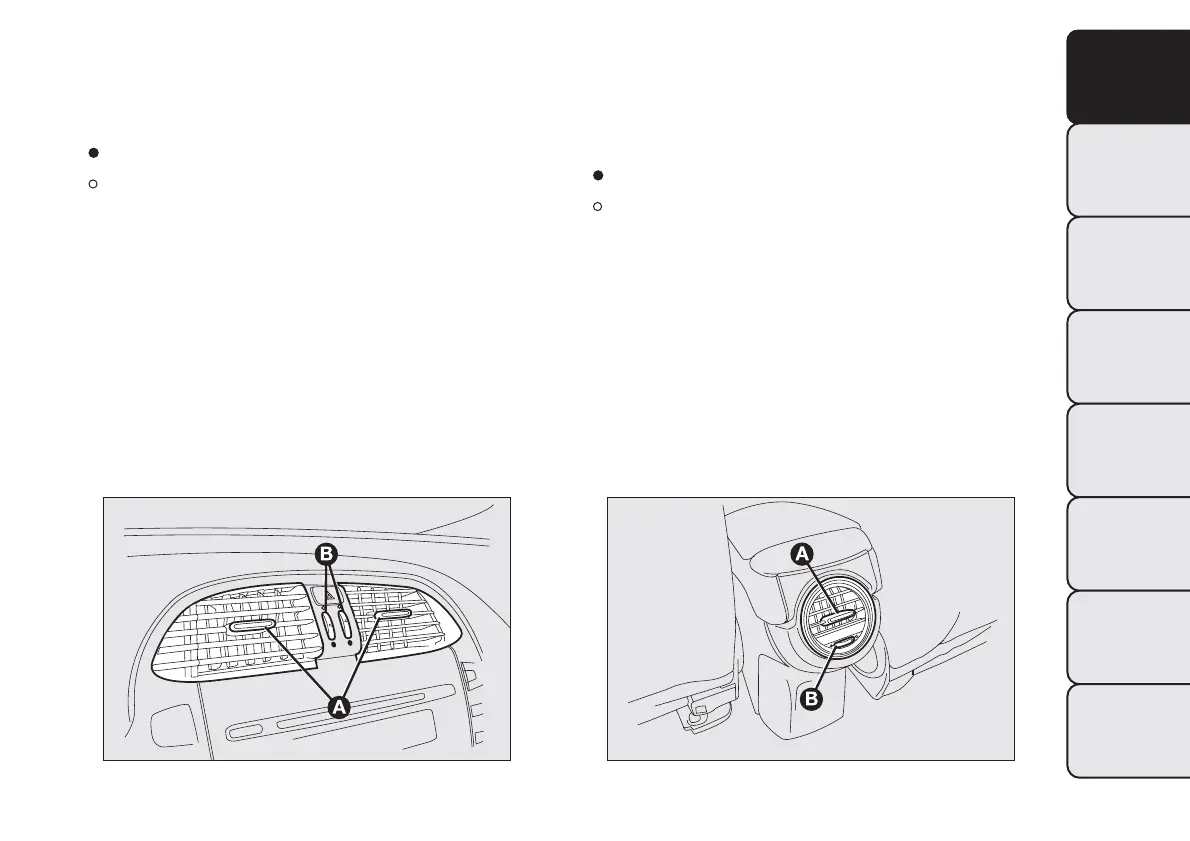

CENTRAL DIFFUSERS
A
Lateral and vertical air flow adjustment controls
fig. 42.
B
Air flow adjustment controls fig. 42:
= Fully closed
= Fully open.
REAR DIFFUSER
(for versions/markets, where provided)
A
Lateral and vertical air flow adjustment controls
fig. 43.
B
Air flow adjustment control fig. 43:
= Fully closed
= Fully open.
On some versions, a storage compartment is fitted
instead of the rear diffuser.
fig. 42
F0Q0627
fig. 43
F0Q0750
