❒ extract the bulb D by pressing it slight-
ly and turning it anticlockwise (bayonet
locking) then replace it;
❒ refit the cover/bulb holder C by turning
it clockwise and locking it properly;
❒ close the lid and turn the fastening de-
vice.

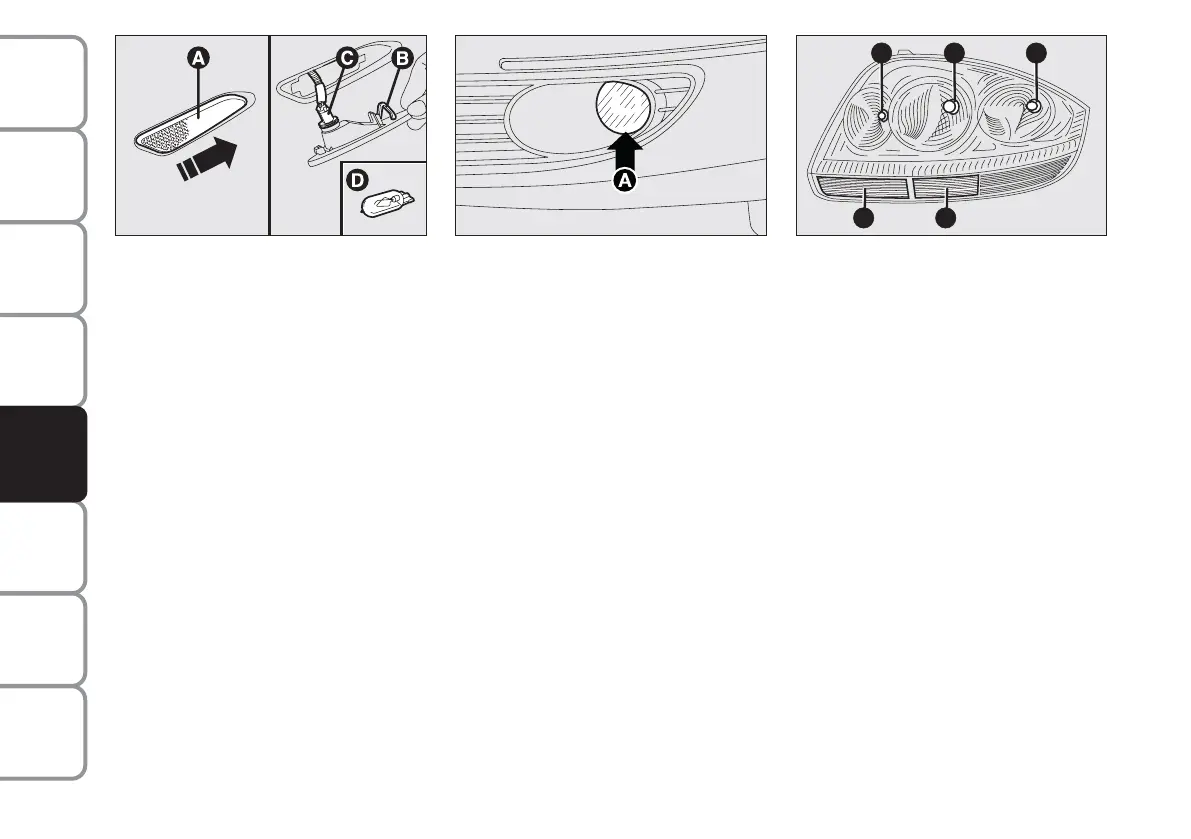

Side fig. 20
To change the bulb, proceed as follows:
❒ work on the lens A to compress the in-
ternal catch B, then pull the unit out-
wards;
❒ turn the bulb holder C anticlockwise,
extract the clipped-on bulb D and re-
place it;
❒ refit the bulb holder C in the lens and
turn it clockwise;
❒ refit the unit making sure that the in-
ternal catch B clips into position.
FRONT FOG LIGHTS
(where provided)
Contact Fiat Dealership to have front fog
lights A-fig. 21 replaced.
REAR LIGHT CLUSTERS
fig. 22-23
Rear light cluster contain taillights, brake
light, direction indicators and rear fog light
bulbs. The bulbs are arranged inside the
light unit as follows:
A brake lights (two lights)
B taillights
C rear fog lights
D direction indicators
E reversing light.
fig. 20
F0R0226m
fig. 22
D
A
B C
E
F0R0227m
fig. 21
F0R0114m
